Schneider Electric Products
Control gear, circuit protection and enclosures.
Contactors
Select manufacturer, motor rating and coil supply
Browse range
Thermal overload relays
Select relay range and motor current setting
Browse rangeSearch part numbers & specifications
Open to search 43 parts.
Browse part numbers (43)
- LADN11TeSys Deca front auxiliary contact block, 1 NO + 1 NC, screw clamp terminals.
- LADN22TeSys Deca front auxiliary contact block, 2 NO + 2 NC, screw clamp terminals.

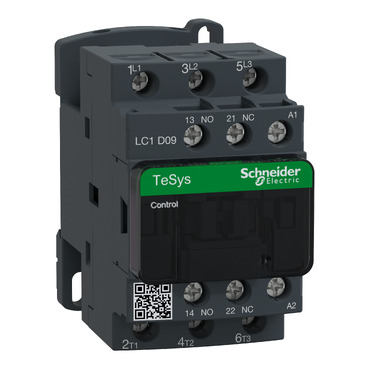

- LC1D09B7TeSys Deca 3-pole contactor, 4 kW at 400 V AC-3, 9 A. 24 V AC coil; 1 NO + 1 NC auxiliary contacts.
- LC1D09BDTeSys Deca 3-pole contactor, 4 kW at 400 V AC-3, 9 A. 24 V DC coil; 1 NO + 1 NC auxiliary contacts.
- LC1D09F7TeSys Deca 3-pole contactor, 4 kW at 400 V AC-3, 9 A. 110 V AC coil; 1 NO + 1 NC auxiliary contacts.
- LC1D09P7TeSys Deca 3-pole contactor, 4 kW at 400 V AC-3, 9 A. 230 V AC coil; 1 NO + 1 NC auxiliary contacts.
- LC1D12B7TeSys Deca 3-pole contactor, 5.5 kW at 400 V AC-3, 12 A. 24 V AC coil; 1 NO + 1 NC auxiliary contacts.
- LC1D12BDTeSys Deca 3-pole contactor, 5.5 kW at 400 V AC-3, 12 A. 24 V DC coil; 1 NO + 1 NC auxiliary contacts.
- LC1D12F7TeSys Deca 3-pole contactor, 5.5 kW at 400 V AC-3, 12 A. 110 V AC coil; 1 NO + 1 NC auxiliary contacts.
- LC1D12P7TeSys Deca 3-pole contactor, 5.5 kW at 400 V AC-3, 12 A. 230 V AC coil; 1 NO + 1 NC auxiliary contacts.
- LC1D18B7TeSys Deca 3-pole contactor, 7.5 kW at 400 V AC-3, 18 A. 24 V AC coil; 1 NO + 1 NC auxiliary contacts.
- LC1D18BDTeSys Deca 3-pole contactor, 7.5 kW at 400 V AC-3, 18 A. 24 V DC coil; 1 NO + 1 NC auxiliary contacts.
- LC1D18F7TeSys Deca 3-pole contactor, 7.5 kW at 400 V AC-3, 18 A. 110 V AC coil; 1 NO + 1 NC auxiliary contacts.
- LC1D18P7TeSys Deca 3-pole contactor, 7.5 kW at 400 V AC-3, 18 A. 230 V AC coil; 1 NO + 1 NC auxiliary contacts.
- LC1D25B7TeSys Deca 3-pole contactor, 11 kW at 400 V AC-3, 25 A. 24 V AC coil; 1 NO + 1 NC auxiliary contacts.
- LC1D25BDTeSys Deca 3-pole contactor, 11 kW at 400 V AC-3, 25 A. 24 V DC coil; 1 NO + 1 NC auxiliary contacts.
- LC1D25F7TeSys Deca 3-pole contactor, 11 kW at 400 V AC-3, 25 A. 110 V AC coil; 1 NO + 1 NC auxiliary contacts.
- LC1D25P7TeSys Deca 3-pole contactor, 11 kW at 400 V AC-3, 25 A. 230 V AC coil; 1 NO + 1 NC auxiliary contacts.
- LC1D32B7TeSys Deca 3-pole contactor, 15 kW at 400 V AC-3, 32 A. 24 V AC coil; 1 NO + 1 NC auxiliary contacts.
- LC1D32BDTeSys Deca 3-pole contactor, 15 kW at 400 V AC-3, 32 A. 24 V DC coil; 1 NO + 1 NC auxiliary contacts.
- LC1D32F7TeSys Deca 3-pole contactor, 15 kW at 400 V AC-3, 32 A. 110 V AC coil; 1 NO + 1 NC auxiliary contacts.
- LC1D32P7TeSys Deca 3-pole contactor, 15 kW at 400 V AC-3, 32 A. 230 V AC coil; 1 NO + 1 NC auxiliary contacts.
- LC1D38B7TeSys Deca 3-pole contactor, 18.5 kW at 400 V AC-3, 38 A. 24 V AC coil; 1 NO + 1 NC auxiliary contacts.
- LC1D38BDTeSys Deca 3-pole contactor, 18.5 kW at 400 V AC-3, 38 A. 24 V DC coil; 1 NO + 1 NC auxiliary contacts.
- LC1D38F7TeSys Deca 3-pole contactor, 18.5 kW at 400 V AC-3, 38 A. 110 V AC coil; 1 NO + 1 NC auxiliary contacts.
- LC1D38P7TeSys Deca 3-pole contactor, 18.5 kW at 400 V AC-3, 38 A. 230 V AC coil; 1 NO + 1 NC auxiliary contacts.

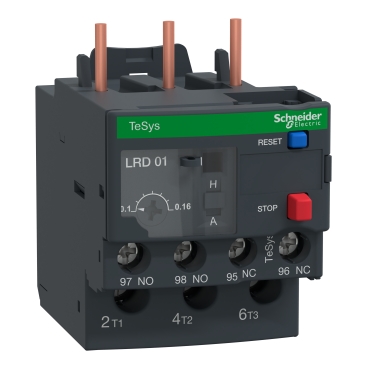

- LRD01TeSys Deca thermal overload relay, 0.1–0.16 A, class 10A. Direct mounting on LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 contactors.
- LRD02TeSys Deca thermal overload relay, 0.16–0.25 A, class 10A. Direct mounting on LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 contactors.
- LRD03TeSys Deca thermal overload relay, 0.25–0.4 A, class 10A. Direct mounting on LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 contactors.
- LRD04TeSys Deca thermal overload relay, 0.4–0.63 A, class 10A. Direct mounting on LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 contactors.
- LRD05TeSys Deca thermal overload relay, 0.63–1 A, class 10A. Direct mounting on LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 contactors.
- LRD06TeSys Deca thermal overload relay, 1–1.6 A, class 10A. Direct mounting on LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 contactors.
- LRD07TeSys Deca thermal overload relay, 1.6–2.5 A, class 10A. Direct mounting on LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 contactors.
- LRD08TeSys Deca thermal overload relay, 2.5–4 A, class 10A. Direct mounting on LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 contactors.
- LRD10TeSys Deca thermal overload relay, 4–6 A, class 10A. Direct mounting on LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 contactors.
- LRD12TeSys Deca thermal overload relay, 5.5–8 A, class 10A. Direct mounting on LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 contactors.
- LRD14TeSys Deca thermal overload relay, 7–10 A, class 10A. Direct mounting on LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 contactors.
- LRD16TeSys Deca thermal overload relay, 9–13 A, class 10A. Direct mounting on LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 contactors.
- LRD21TeSys Deca thermal overload relay, 12–18 A, class 10A. Direct mounting on LC1D18, LC1D25, LC1D32, LC1D38 contactors.
- LRD22TeSys Deca thermal overload relay, 16–24 A, class 10A. Direct mounting on LC1D25, LC1D32, LC1D38 contactors.
- LRD32TeSys Deca thermal overload relay, 23–32 A, class 10A. Direct mounting on LC1D25, LC1D32, LC1D38 contactors.
- LRD35TeSys Deca thermal overload relay, 30–38 A, class 10A. Direct mounting on LC1D32, LC1D38 contactors.
- LAD7B10LAD7B10 separate mounting adapter for LRD01–LRD35 thermal overload relays, DIN rail or screw mounting.
Schneider Electric range information
Control gear, circuit protection and enclosures.
Browse the listed ranges to choose the specification and exact product reference. Product documents and matched accessories are shown on the relevant product pages.
