LOGO! Logic Controllers
Choose a LOGO! 8 base, then add digital or analogue expansions, a display, power and Ethernet accessories.
Product specification

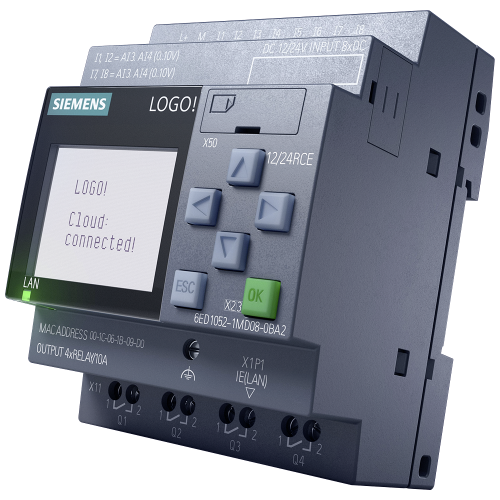

LOGO! 8.4 12/24RCE logic module, 12/24 V DC, with display, 8 digital, including 4 analogue-capable inputs and 4 relay outputs. Ethernet.
Dimensions & specifications
Mix compatible expansion types and set quantities below. Each module needs its specified supply. Total I/O includes the base; analogue input use and power demand need checking. LOGO! 9 modules and SIMATIC S7 memory cards are not LOGO! 8 accessories.
Accessories & related parts
Search part numbers & specifications
Open to search 8 parts.
Browse part numbers (8)
- 6ED1052-1MD08-0BA2LOGO! 8.4 12/24RCE logic module, 12/24 V DC, with display, 8 digital, including 4 analogue-capable inputs and 4 relay outputs. Ethernet.
- 6ED1052-2MD08-0BA2LOGO! 8.4 12/24RCEo logic module, 12/24 V DC, without display, 8 digital, including 4 analogue-capable inputs and 4 relay outputs. Ethernet.
- 6ED1052-1CC08-0BA2LOGO! 8.4 24CE logic module, 24 V DC, with display, 8 digital, including 4 analogue-capable inputs and 4 transistor outputs. Ethernet.
- 6ED1052-2CC08-0BA2LOGO! 8.4 24CEo logic module, 24 V DC, without display, 8 digital, including 4 analogue-capable inputs and 4 transistor outputs. Ethernet.
- 6ED1052-1HB08-0BA2LOGO! 8.4 24RCE logic module, 24 V AC/DC, with display, 8 digital inputs and 4 relay outputs. Ethernet.
- 6ED1052-2HB08-0BA2LOGO! 8.4 24RCEo logic module, 24 V AC/DC, without display, 8 digital inputs and 4 relay outputs. Ethernet.
- 6ED1052-1FB08-0BA2LOGO! 8.4 230RCE logic module, 115/230 V AC/DC, with display, 8 digital inputs and 4 relay outputs. Ethernet.
- 6ED1052-2FB08-0BA2LOGO! 8.4 230RCEo logic module, 115/230 V AC/DC, without display, 8 digital inputs and 4 relay outputs. Ethernet.
LOGO controller and expansion selection
Choose the base controller supply and display arrangement first. Then use the matched expansion choices to add the required digital or analogue inputs and outputs.
Review supply voltage, output type and expansion limits in the product documents. Swift supplies Siemens low voltage and automation products from Heywood, Greater Manchester.
