Enclosures
Wall-mounted and floor-standing enclosures, junction boxes, fans, filters and air conditioning. Choose the enclosure size or cooling method.
AX Wall-mounted Enclosures
44 sheet-steel sizes · Mounting plate included
Browse range
VX SE Floor-standing Enclosures
19 sheet-steel sizes · Matching plinths and fittings
Browse range
Steel wall-mounted enclosures — MAS
MAS · mild steel · IP66 · mounting plate included
Browse range
Plastic enclosures
EL111 · EL161 · EL171 · EL231 · EL322
Browse range
Junction boxes
Six sizes · grey and black · empty boxes
Browse range
Fans & filters
Choose cut-out size · Matching outlet filters and replacement media
Browse range
Air conditioning
Blue e+ · Cooling capacity and voltage selection
Browse range
Panel Lighting
Finder 7L.43 · 600 lm · switch or sensor
Browse rangeSearch part numbers & specifications
Open to search 197 parts.
Browse part numbers (197)
- 1033000AX sheet-steel enclosure, 300 × 300 × 210 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1034000AX sheet-steel enclosure, 300 × 400 × 210 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1031000AX sheet-steel enclosure, 380 × 300 × 210 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1380000AX sheet-steel enclosure, 380 × 380 × 210 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1038000AX sheet-steel enclosure, 380 × 600 × 210 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1338000AX sheet-steel enclosure, 380 × 600 × 350 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1045000AX sheet-steel enclosure, 400 × 500 × 210 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1037000AX sheet-steel enclosure, 400 × 800 × 300 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1050000AX sheet-steel enclosure, 500 × 500 × 210 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1350000AX sheet-steel enclosure, 500 × 500 × 300 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1057000AX sheet-steel enclosure, 500 × 700 × 250 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1039000AX sheet-steel enclosure, 600 × 380 × 210 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1339000AX sheet-steel enclosure, 600 × 380 × 350 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1060000AX sheet-steel enclosure, 600 × 600 × 210 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1054000AX sheet-steel enclosure, 600 × 600 × 250 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1360000AX sheet-steel enclosure, 600 × 600 × 350 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1076000AX sheet-steel enclosure, 600 × 760 × 210 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1376000AX sheet-steel enclosure, 600 × 760 × 350 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1058000AX sheet-steel enclosure, 600 × 800 × 250 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1059000AX sheet-steel enclosure, 600 × 800 × 400 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1090000AX sheet-steel enclosure, 600 × 1000 × 250 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1091000AX sheet-steel enclosure, 600 × 1000 × 400 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1260000AX sheet-steel enclosure, 600 × 1200 × 300 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1261000AX sheet-steel enclosure, 600 × 1200 × 400 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1077000AX sheet-steel enclosure, 760 × 760 × 210 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1073000AX sheet-steel enclosure, 760 × 760 × 300 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1055000AX sheet-steel enclosure, 800 × 600 × 300 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1180000AX sheet-steel enclosure, 800 × 1000 × 300 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1181000AX sheet-steel enclosure, 800 × 1000 × 400 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1280000AX sheet-steel enclosure, 800 × 1200 × 300 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1281000AX sheet-steel enclosure, 800 × 1200 × 400 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1100000AX sheet-steel enclosure, 1000 × 760 × 210 mm (W × H × D), 2 door(s), IP55. Mounting plate and gland plates included.
- 1130000AX sheet-steel enclosure, 1000 × 760 × 300 mm (W × H × D), 2 door(s), IP55. Mounting plate and gland plates included.
- 1110000AX sheet-steel enclosure, 1000 × 1000 × 300 mm (W × H × D), 2 door(s), IP55. Mounting plate and gland plates included.
- 1213000AX sheet-steel enclosure, 1000 × 1200 × 300 mm (W × H × D), 2 door(s), IP55. Mounting plate and gland plates included.
- 1214000AX sheet-steel enclosure, 1000 × 1200 × 400 mm (W × H × D), 2 door(s), IP55. Mounting plate and gland plates included.
- 1114000AX sheet-steel enclosure, 1000 × 1400 × 300 mm (W × H × D), 2 door(s), IP55. Mounting plate and gland plates included.
- 1115000AX sheet-steel enclosure, 1000 × 1400 × 400 mm (W × H × D), 2 door(s), IP55. Mounting plate and gland plates included.
- 1116000AX sheet-steel enclosure, 1200 × 1200 × 400 mm (W × H × D), 2 door(s), IP55. Mounting plate and gland plates included.
- 5820600VX SE sheet-steel enclosure, 600 × 1800 × 300 mm (W × H × D), 1 door(s), IP55. Mounting plate and gland plates included.
- 5830600VX SE sheet-steel enclosure, 600 × 1800 × 400 mm (W × H × D), 1 door(s), IP55. Mounting plate and gland plates included.
- 5821600VX SE sheet-steel enclosure, 600 × 2000 × 300 mm (W × H × D), 1 door(s), IP55. Mounting plate and gland plates included.
- 5822600VX SE sheet-steel enclosure, 800 × 1800 × 300 mm (W × H × D), 1 door(s), IP55. Mounting plate and gland plates included.
- 5831600VX SE sheet-steel enclosure, 800 × 1800 × 400 mm (W × H × D), 1 door(s), IP55. Mounting plate and gland plates included.
- 5823600VX SE sheet-steel enclosure, 800 × 2000 × 300 mm (W × H × D), 1 door(s), IP55. Mounting plate and gland plates included.
- 5832600VX SE sheet-steel enclosure, 800 × 2000 × 400 mm (W × H × D), 1 door(s), IP55. Mounting plate and gland plates included.
- 5833600VX SE sheet-steel enclosure, 800 × 2000 × 500 mm (W × H × D), 1 door(s), IP55. Mounting plate and gland plates included.
- 5834600VX SE sheet-steel enclosure, 800 × 2000 × 600 mm (W × H × D), 1 door(s), IP55. Mounting plate and gland plates included.
Enclosure sizes and climate control
Browse wall-mounted and floor-standing enclosures, then select height, width and depth from the available range.
Fan units, outlet filters and enclosure cooling are grouped separately so you can find the relevant size and associated accessories. Swift Electrical Supplies is a family-run independent electrical wholesaler in Heywood, Greater Manchester.
Panel services
Enclosure lighting
2500110LED enclosure system light, 600 lm, 7 W, 100–230 V AC, without socket. Connection and mounting accessories separate.
Door-operated light switch
2500460Door-operated switch for LED system lights, supplied with 800 mm cable and assembly parts.

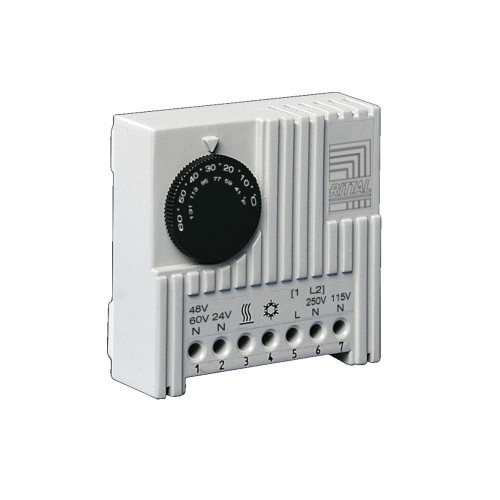

Thermostat
3110000Internal enclosure thermostat, changeover contact, adjustable +5 to +60 °C. DIN-rail mounting.

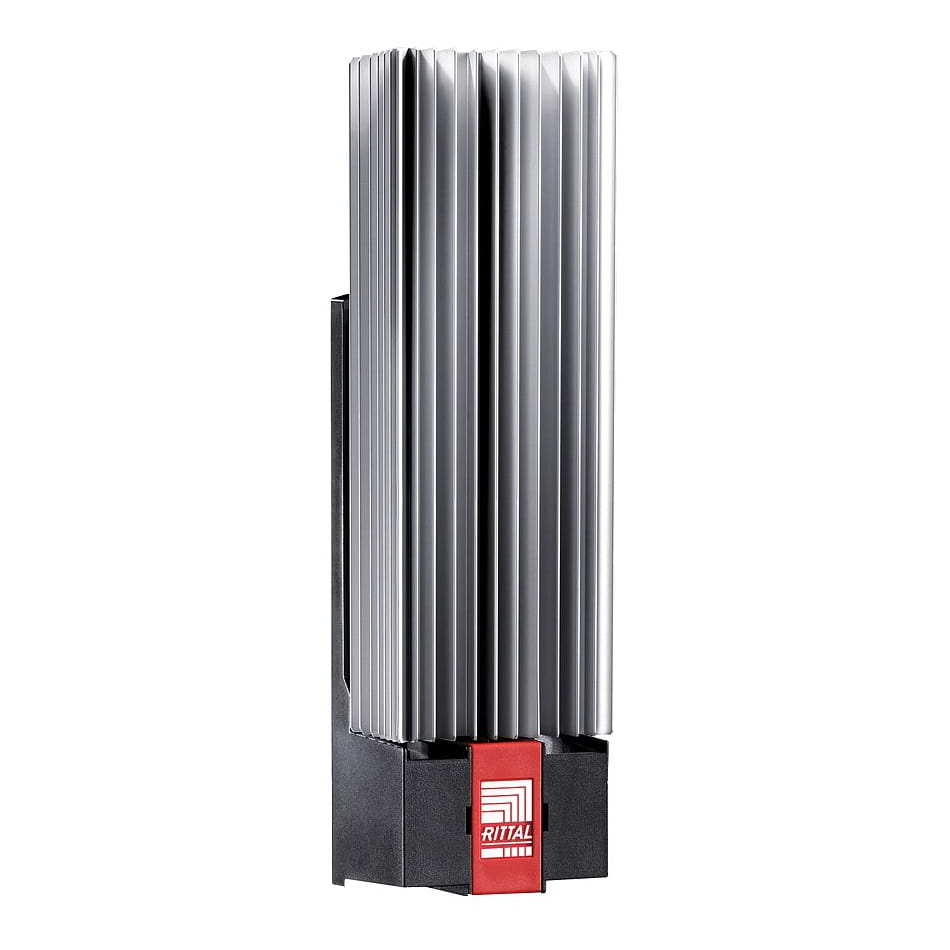

Anti-condensation heater
3105350Enclosure heater without fan, 63–75 W at 10 °C, 110–240 V AC. Temperature or humidity control selected separately.

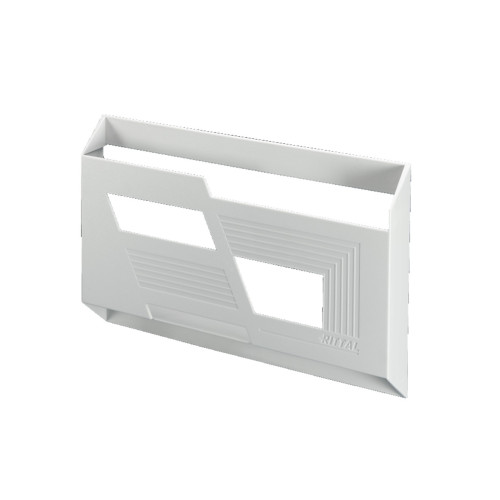

Wiring-plan pocket
2514000A4 portrait wiring-plan pocket, self-adhesive halogen-free polystyrene for the inside of enclosure doors.
