Rittal AX wall-mounted enclosure
1339000

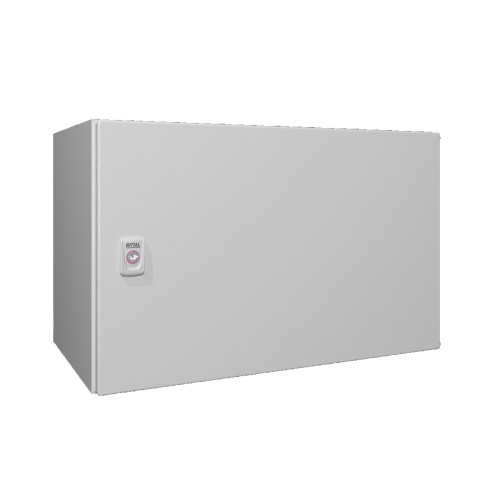

AX sheet-steel enclosure, 600 × 380 × 350 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- W × H × D
- 600 × 380 × 350 mm
- Protection
- IP66
- Material
- Sheet steel
Enclosure sizesCompare dimensions and part numbersView size table
Product specification
1339000
AX sheet-steel enclosure, 600 × 380 × 350 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
Dimensions & specifications
44 AX steel enclosure sizes, 19 VX SE IP55 sizes and 3 VX SE IP66 versions. Dimensions are catalogue Width × Height × Depth. Mounting plate included. Actual drawing dimensions are listed separately in the specifications.
Accessories & related parts
1339000 — specifications & documents
AX sheet-steel enclosure, 600 × 380 × 350 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
| Range | AX |
|---|---|
| Mounting | Wall mounted |
| Width | 600 mm |
| Height | 380 mm |
| Depth | 350 mm |
| Mounting plate width | 550 mm |
| Mounting plate height | 355 mm |
| Doors | 1 |
| Material | Sheet steel |
| Colour | RAL 7035 |
| Protection | IP66 |
| Supply includes | Enclosure, door(s), mounting plate, gland plate(s), perforated door strip, 3 mm double-bit lock |
| Plinth | Not applicable |
| Gland plate size | 7 |
| Gland plates included | 1 |
| Locking | 1 cam lock(s) |
| Size convention | Rittal catalogue dimensions: W × H × D |
| Overall depth (drawing T1) | 350.2 mm |
Related parts
- 2508020 AX zinc-plated wall-mounting bracket, 20 mm wall clearance. Manufacturer pack: 4 brackets including assembly parts.
- 2503020 AX zinc-plated wall-mounting bracket, 40 mm wall clearance. Manufacturer pack: 4 brackets including assembly parts.
- 2537100 AX cam lock comfort handle. For lock insert or profile half-cylinder. Lock insert or cylinder ordered separately.
- 2537300 AX cam lock comfort handle. For padlock plus lock insert or profile half-cylinder. Lock insert or cylinder ordered separately.
- 2567300 AX membrane gland plate, size 7; replaces the supplied plain plate.
- 2519010 AX door stay for securing the door in its open position.
- 2394350 AX interior installation rail for 350 mm enclosure depth. Includes adaptor and assembly parts; manufacturer pack: 4 rails.
- 2565000 Earth strap, M8–M8, 16 mm², 170 mm long. Manufacturer pack: 5 straps.
