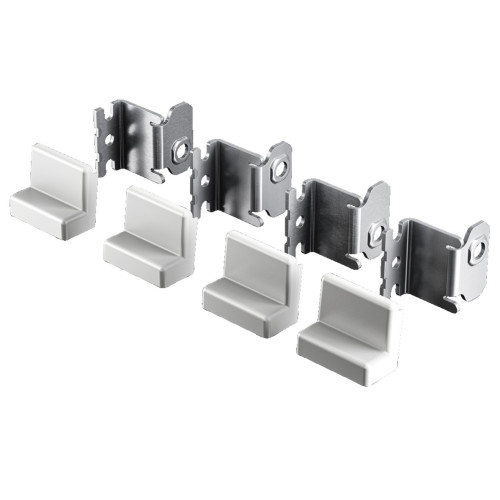

Rittal AX zinc-plated wall-mounting bracket
2503020
AX zinc-plated wall-mounting bracket, 40 mm wall clearance. Manufacturer pack: 4 brackets including assembly parts.
- Application
- AX enclosures
- Accessory type
- Wall mounting
- Option
- 40 mm clearance
Product specification
2503020
AX zinc-plated wall-mounting bracket, 40 mm wall clearance. Manufacturer pack: 4 brackets including assembly parts.
Dimensions & specifications
Accessories are matched to individual parts. A shared manufacturer or frame size alone does not establish compatibility.
Accessories & related parts
2503020 — specifications & documents
AX zinc-plated wall-mounting bracket, 40 mm wall clearance. Manufacturer pack: 4 brackets including assembly parts.
| Wall clearance | 40 mm |
|---|---|
| Manufacturer pack | 4 brackets |
| Quote quantity basis | Individual brackets; four per enclosure |
Fits these parts
- 1033000 AX sheet-steel enclosure, 300 × 300 × 210 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1034000 AX sheet-steel enclosure, 300 × 400 × 210 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1031000 AX sheet-steel enclosure, 380 × 300 × 210 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1380000 AX sheet-steel enclosure, 380 × 380 × 210 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1038000 AX sheet-steel enclosure, 380 × 600 × 210 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1338000 AX sheet-steel enclosure, 380 × 600 × 350 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1045000 AX sheet-steel enclosure, 400 × 500 × 210 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1037000 AX sheet-steel enclosure, 400 × 800 × 300 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1050000 AX sheet-steel enclosure, 500 × 500 × 210 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1350000 AX sheet-steel enclosure, 500 × 500 × 300 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1057000 AX sheet-steel enclosure, 500 × 700 × 250 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1039000 AX sheet-steel enclosure, 600 × 380 × 210 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1339000 AX sheet-steel enclosure, 600 × 380 × 350 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1060000 AX sheet-steel enclosure, 600 × 600 × 210 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1054000 AX sheet-steel enclosure, 600 × 600 × 250 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1360000 AX sheet-steel enclosure, 600 × 600 × 350 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1076000 AX sheet-steel enclosure, 600 × 760 × 210 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1376000 AX sheet-steel enclosure, 600 × 760 × 350 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1058000 AX sheet-steel enclosure, 600 × 800 × 250 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1059000 AX sheet-steel enclosure, 600 × 800 × 400 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1090000 AX sheet-steel enclosure, 600 × 1000 × 250 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1091000 AX sheet-steel enclosure, 600 × 1000 × 400 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1260000 AX sheet-steel enclosure, 600 × 1200 × 300 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1261000 AX sheet-steel enclosure, 600 × 1200 × 400 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1077000 AX sheet-steel enclosure, 760 × 760 × 210 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1073000 AX sheet-steel enclosure, 760 × 760 × 300 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1055000 AX sheet-steel enclosure, 800 × 600 × 300 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1180000 AX sheet-steel enclosure, 800 × 1000 × 300 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1181000 AX sheet-steel enclosure, 800 × 1000 × 400 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1280000 AX sheet-steel enclosure, 800 × 1200 × 300 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1281000 AX sheet-steel enclosure, 800 × 1200 × 400 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1100000 AX sheet-steel enclosure, 1000 × 760 × 210 mm (W × H × D), 2 door(s), IP55. Mounting plate and gland plates included.
- 1130000 AX sheet-steel enclosure, 1000 × 760 × 300 mm (W × H × D), 2 door(s), IP55. Mounting plate and gland plates included.
- 1110000 AX sheet-steel enclosure, 1000 × 1000 × 300 mm (W × H × D), 2 door(s), IP55. Mounting plate and gland plates included.
- 1213000 AX sheet-steel enclosure, 1000 × 1200 × 300 mm (W × H × D), 2 door(s), IP55. Mounting plate and gland plates included.
- 1214000 AX sheet-steel enclosure, 1000 × 1200 × 400 mm (W × H × D), 2 door(s), IP55. Mounting plate and gland plates included.
- 1114000 AX sheet-steel enclosure, 1000 × 1400 × 300 mm (W × H × D), 2 door(s), IP55. Mounting plate and gland plates included.
- 1115000 AX sheet-steel enclosure, 1000 × 1400 × 400 mm (W × H × D), 2 door(s), IP55. Mounting plate and gland plates included.
- 1116000 AX sheet-steel enclosure, 1200 × 1200 × 400 mm (W × H × D), 2 door(s), IP55. Mounting plate and gland plates included.
- 1094000 AX sheet-steel enclosure, 800 × 400 × 250 mm (W × H × D), 2 doors, IP55. Mounting plate and gland plates included.
- 1095000 AX sheet-steel enclosure, 800 × 400 × 300 mm (W × H × D), 2 doors, IP55. Mounting plate and gland plates included.
- 1096000 AX sheet-steel enclosure, 1000 × 600 × 300 mm (W × H × D), 2 doors, IP55. Mounting plate and gland plates included.
- 1112000 AX sheet-steel enclosure, 1200 × 400 × 300 mm (W × H × D), 2 doors, IP55. Mounting plate and gland plates included.
- 1113000 AX sheet-steel enclosure, 1200 × 600 × 300 mm (W × H × D), 2 doors, IP55. Mounting plate and gland plates included.
