Rittal AX wall-mounted enclosure
1261000

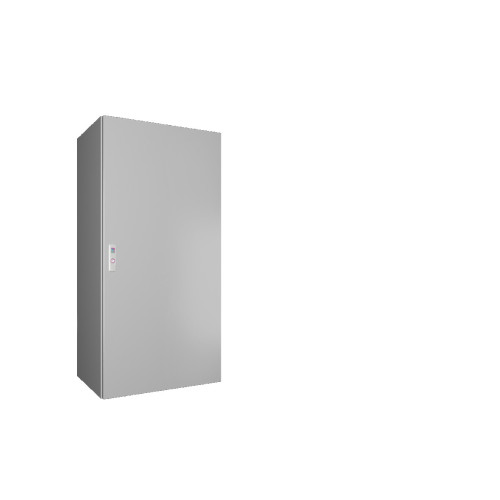

AX sheet-steel enclosure, 600 × 1200 × 400 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- W × H × D
- 600 × 1200 × 400 mm
- Protection
- IP66
- Material
- Sheet steel
Enclosure sizesCompare dimensions and part numbersView size table
Product specification
1261000
AX sheet-steel enclosure, 600 × 1200 × 400 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
Dimensions & specifications
44 AX steel enclosure sizes, 19 VX SE IP55 sizes and 3 VX SE IP66 versions. Dimensions are catalogue Width × Height × Depth. Mounting plate included. Actual drawing dimensions are listed separately in the specifications.
Accessories & related parts
1261000 — specifications & documents
AX sheet-steel enclosure, 600 × 1200 × 400 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
| Range | AX |
|---|---|
| Mounting | Wall mounted |
| Width | 600 mm |
| Height | 1200 mm |
| Depth | 400 mm |
| Mounting plate width | 545 mm |
| Mounting plate height | 1175 mm |
| Doors | 1 |
| Material | Sheet steel |
| Colour | RAL 7035 |
| Protection | IP66 |
| Supply includes | Enclosure, door(s), mounting plate, gland plate(s), perforated door strip, 3 mm double-bit lock |
| Plinth | Not applicable |
| Gland plate size | 7 |
| Gland plates included | 1 |
| Locking | Locking rod |
| Size convention | Rittal catalogue dimensions: W × H × D |
| Overall depth (drawing T1) | 400.7 mm |
Related parts
- 2508020 AX zinc-plated wall-mounting bracket, 20 mm wall clearance. Manufacturer pack: 4 brackets including assembly parts.
- 2503020 AX zinc-plated wall-mounting bracket, 40 mm wall clearance. Manufacturer pack: 4 brackets including assembly parts.
- 2435100 AX locking rod comfort handle. For lock insert or profile half-cylinder. Lock insert or cylinder ordered separately.
- 2435400 AX locking rod comfort handle. For padlock plus lock insert or profile half-cylinder. Lock insert or cylinder ordered separately.
- 2567300 AX membrane gland plate, size 7; replaces the supplied plain plate.
- 2519010 AX door stay for securing the door in its open position.
- 2394400 AX interior installation rail for 400 mm enclosure depth. Includes adaptor and assembly parts; manufacturer pack: 4 rails.
- 2565000 Earth strap, M8–M8, 16 mm², 170 mm long. Manufacturer pack: 5 straps.
- 2514000 A4 portrait wiring-plan pocket, self-adhesive halogen-free polystyrene for the inside of enclosure doors.
- 2500110 LED enclosure system light, 600 lm, 7 W, 100–230 V AC, without socket. Connection and mounting accessories separate.
- 3105350 Enclosure heater without fan, 63–75 W at 10 °C, 110–240 V AC. Temperature or humidity control selected separately.
