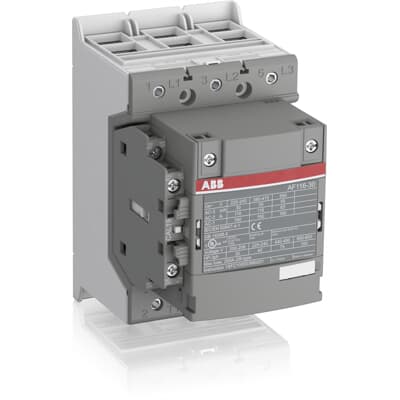

ABB AF 3-pole contactor
AF116-30-11-11
AF 3-pole contactor, 55 kW at 400 V AC-3, 116 A. 24–60 V AC / 20–60 V DC electronic coil; 1 NO + 1 NC auxiliary contacts.
- Motor rating
- 55 kW
- Frame
- AF116
- Coil
- 24 V AC/DC
Product specification
AF116-30-11-11
AF 3-pole contactor, 55 kW at 400 V AC-3, 116 A. 24–60 V AC / 20–60 V DC electronic coil; 1 NO + 1 NC auxiliary contacts.
Dimensions & specifications
Motor ratings shown are for 400 V AC-3 / AC-3e. Select against the motor nameplate current; coil supply is a separate choice.
Accessories & related parts
AF116-30-11-11 — specifications & documents
AF 3-pole contactor, 55 kW at 400 V AC-3, 116 A. 24–60 V AC / 20–60 V DC electronic coil; 1 NO + 1 NC auxiliary contacts.
| Motor rating at 400 V | 55 kW |
|---|---|
| Rated current (AC-3) | 116 A |
| Frame | AF116 |
| Coil voltage | 24–60 V AC (50/60 Hz) / 20–60 V DC |
| Poles | 3 |
| Supplied auxiliary contacts | 1 NO + 1 NC |
| Connection | Screw terminals |
| Surge suppression | Built in |
| ABB order code | 1SFL427001R1111 |
| Control note | Check PLC output capacity and manufacturer control-circuit requirements. |
| Width | 90 mm |
| Height | 150 mm |
| Depth | 126 mm |
| Manufacturer | ABB |
Related parts
- TF140DU-90 TF140DU thermal overload relay, 66–90 A, trip class 10A. Direct mounting on AF116, AF140 contactors.
- TF140DU-110 TF140DU thermal overload relay, 80–110 A, trip class 10A. Direct mounting on AF116, AF140 contactors.
- TF140DU-135 TF140DU thermal overload relay, 100–135 A, trip class 10A. Direct mounting on AF116, AF140 contactors.
- TF140DU-142 TF140DU thermal overload relay, 110–142 A, trip class 10A. Direct mounting on AF116, AF140 contactors.
