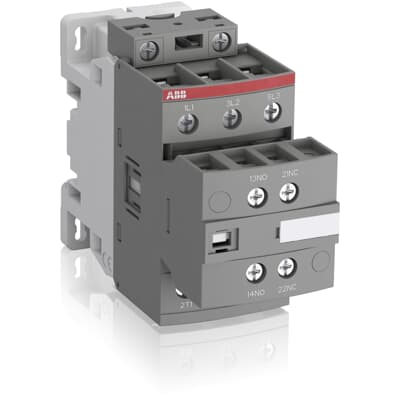

ABB AF 3-pole contactor
AF26-30-11-13
AF 3-pole contactor, 11 kW at 400 V AC-3, 26 A. 100–250 V AC/DC electronic coil; 1 NO + 1 NC auxiliary contacts.
- Motor rating
- 11 kW
- Frame
- AF26
- Coil
- 110 / 230 V AC/DC
Product specification
AF26-30-11-13
AF 3-pole contactor, 11 kW at 400 V AC-3, 26 A. 100–250 V AC/DC electronic coil; 1 NO + 1 NC auxiliary contacts.
Dimensions & specifications
Motor ratings shown are for 400 V AC-3 / AC-3e. Select against the motor nameplate current; coil supply is a separate choice.
Accessories & related parts
AF26-30-11-13 — specifications & documents
AF 3-pole contactor, 11 kW at 400 V AC-3, 26 A. 100–250 V AC/DC electronic coil; 1 NO + 1 NC auxiliary contacts.
| Motor rating at 400 V | 11 kW |
|---|---|
| Rated current (AC-3) | 26 A |
| Frame | AF26 |
| Coil voltage | 100–250 V AC (50/60 Hz) / DC |
| Poles | 3 |
| Supplied auxiliary contacts | 1 NO + 1 NC |
| Connection | Screw terminals |
| Surge suppression | Built in |
| ABB order code | 1SBL237001R1311 |
| Width | 45 mm |
| Height | 86 mm |
| Depth | 111.5 mm |
| Manufacturer | ABB |
