ABB DB42 separate mounting adapter for TF42 thermal overload relays
DB42

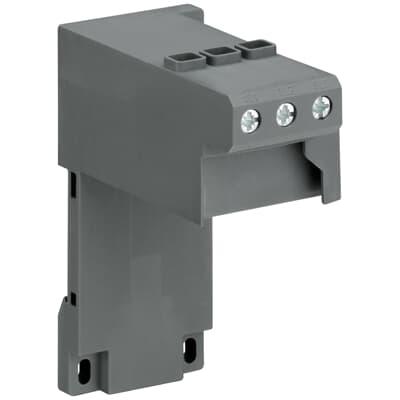

DB42 separate mounting adapter for TF42 thermal overload relays, DIN rail or screw mounting.
- Application
- Thermal overload relays
- Accessory type
- Separate mounting adapter
- Option
- TF42
Product specification
DB42
DB42 separate mounting adapter for TF42 thermal overload relays, DIN rail or screw mounting.
Dimensions & specifications
Accessories are matched to individual parts. A shared manufacturer or frame size alone does not establish compatibility.
Accessories & related parts
DB42 — specifications & documents
DB42 separate mounting adapter for TF42 thermal overload relays, DIN rail or screw mounting.
| Accessory type | Separate mounting adapter |
|---|---|
| Compatible relay | TF42 |
| Manufacturer order code | 1SAZ701902R0001 |
| Mounting | DIN rail or screw fixing |
Fits these parts
- TF42-0.13 TF42 thermal overload relay, 0.1–0.13 A, trip class 10. Direct mounting on AF09, AF12, AF16, AF26, AF30, AF38 contactors.
- TF42-0.17 TF42 thermal overload relay, 0.13–0.17 A, trip class 10. Direct mounting on AF09, AF12, AF16, AF26, AF30, AF38 contactors.
- TF42-0.23 TF42 thermal overload relay, 0.17–0.23 A, trip class 10. Direct mounting on AF09, AF12, AF16, AF26, AF30, AF38 contactors.
- TF42-0.31 TF42 thermal overload relay, 0.23–0.31 A, trip class 10. Direct mounting on AF09, AF12, AF16, AF26, AF30, AF38 contactors.
- TF42-0.41 TF42 thermal overload relay, 0.31–0.41 A, trip class 10. Direct mounting on AF09, AF12, AF16, AF26, AF30, AF38 contactors.
- TF42-0.55 TF42 thermal overload relay, 0.41–0.55 A, trip class 10. Direct mounting on AF09, AF12, AF16, AF26, AF30, AF38 contactors.
- TF42-0.74 TF42 thermal overload relay, 0.55–0.74 A, trip class 10. Direct mounting on AF09, AF12, AF16, AF26, AF30, AF38 contactors.
- TF42-1.0 TF42 thermal overload relay, 0.74–1 A, trip class 10. Direct mounting on AF09, AF12, AF16, AF26, AF30, AF38 contactors.
- TF42-1.3 TF42 thermal overload relay, 1–1.3 A, trip class 10. Direct mounting on AF09, AF12, AF16, AF26, AF30, AF38 contactors.
- TF42-1.7 TF42 thermal overload relay, 1.3–1.7 A, trip class 10. Direct mounting on AF09, AF12, AF16, AF26, AF30, AF38 contactors.
- TF42-2.3 TF42 thermal overload relay, 1.7–2.3 A, trip class 10. Direct mounting on AF09, AF12, AF16, AF26, AF30, AF38 contactors.
- TF42-3.1 TF42 thermal overload relay, 2.3–3.1 A, trip class 10. Direct mounting on AF09, AF12, AF16, AF26, AF30, AF38 contactors.
- TF42-4.2 TF42 thermal overload relay, 3.1–4.2 A, trip class 10. Direct mounting on AF09, AF12, AF16, AF26, AF30, AF38 contactors.
- TF42-5.7 TF42 thermal overload relay, 4.2–5.7 A, trip class 10. Direct mounting on AF09, AF12, AF16, AF26, AF30, AF38 contactors.
- TF42-7.6 TF42 thermal overload relay, 5.7–7.6 A, trip class 10. Direct mounting on AF09, AF12, AF16, AF26, AF30, AF38 contactors.
- TF42-10 TF42 thermal overload relay, 7.6–10 A, trip class 10. Direct mounting on AF09, AF12, AF16, AF26, AF30, AF38 contactors.
- TF42-13 TF42 thermal overload relay, 10–13 A, trip class 10. Direct mounting on AF09, AF12, AF16, AF26, AF30, AF38 contactors.
- TF42-16 TF42 thermal overload relay, 13–16 A, trip class 10. Direct mounting on AF09, AF12, AF16, AF26, AF30, AF38 contactors.
- TF42-20 TF42 thermal overload relay, 16–20 A, trip class 10. Direct mounting on AF09, AF12, AF16, AF26, AF30, AF38 contactors.
- TF42-24 TF42 thermal overload relay, 20–24 A, trip class 10. Direct mounting on AF09, AF12, AF16, AF26, AF30, AF38 contactors.
- TF42-29 TF42 thermal overload relay, 24–29 A, trip class 10. Direct mounting on AF09, AF12, AF16, AF26, AF30, AF38 contactors.
- TF42-35 TF42 thermal overload relay, 29–35 A, trip class 10. Direct mounting on AF09, AF12, AF16, AF26, AF30, AF38 contactors.
- TF42-38 TF42 thermal overload relay, 35–38 A, trip class 10. Direct mounting on AF09, AF12, AF16, AF26, AF30, AF38 contactors.
