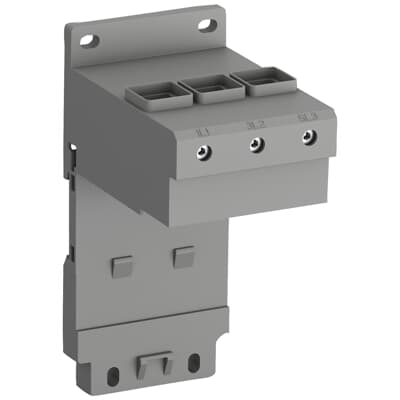

ABB DB96 separate mounting adapter for TF96 thermal overload relays
DB96
DB96 separate mounting adapter for TF96 thermal overload relays, DIN rail or screw mounting.
- Application
- Thermal overload relays
- Accessory type
- Separate mounting adapter
- Option
- TF96
Product specification
DB96
DB96 separate mounting adapter for TF96 thermal overload relays, DIN rail or screw mounting.
Dimensions & specifications
Accessories are matched to individual parts. A shared manufacturer or frame size alone does not establish compatibility.
Accessories & related parts
DB96 — specifications & documents
DB96 separate mounting adapter for TF96 thermal overload relays, DIN rail or screw mounting.
| Accessory type | Separate mounting adapter |
|---|---|
| Compatible relay | TF96 |
| Manufacturer order code | 1SAZ901901R1001 |
| Mounting | DIN rail or screw fixing |
Fits these parts
- TF96-51 TF96 thermal overload relay, 40–51 A, trip class 10. Direct mounting on AF80, AF96 contactors.
- TF96-60 TF96 thermal overload relay, 48–60 A, trip class 10. Direct mounting on AF80, AF96 contactors.
- TF96-68 TF96 thermal overload relay, 57–68 A, trip class 10. Direct mounting on AF80, AF96 contactors.
- TF96-78 TF96 thermal overload relay, 65–78 A, trip class 10. Direct mounting on AF80, AF96 contactors.
- TF96-87 TF96 thermal overload relay, 75–87 A, trip class 10. Direct mounting on AF80, AF96 contactors.
- TF96-96 TF96 thermal overload relay, 84–96 A, trip class 10. Direct mounting on AF80, AF96 contactors.
