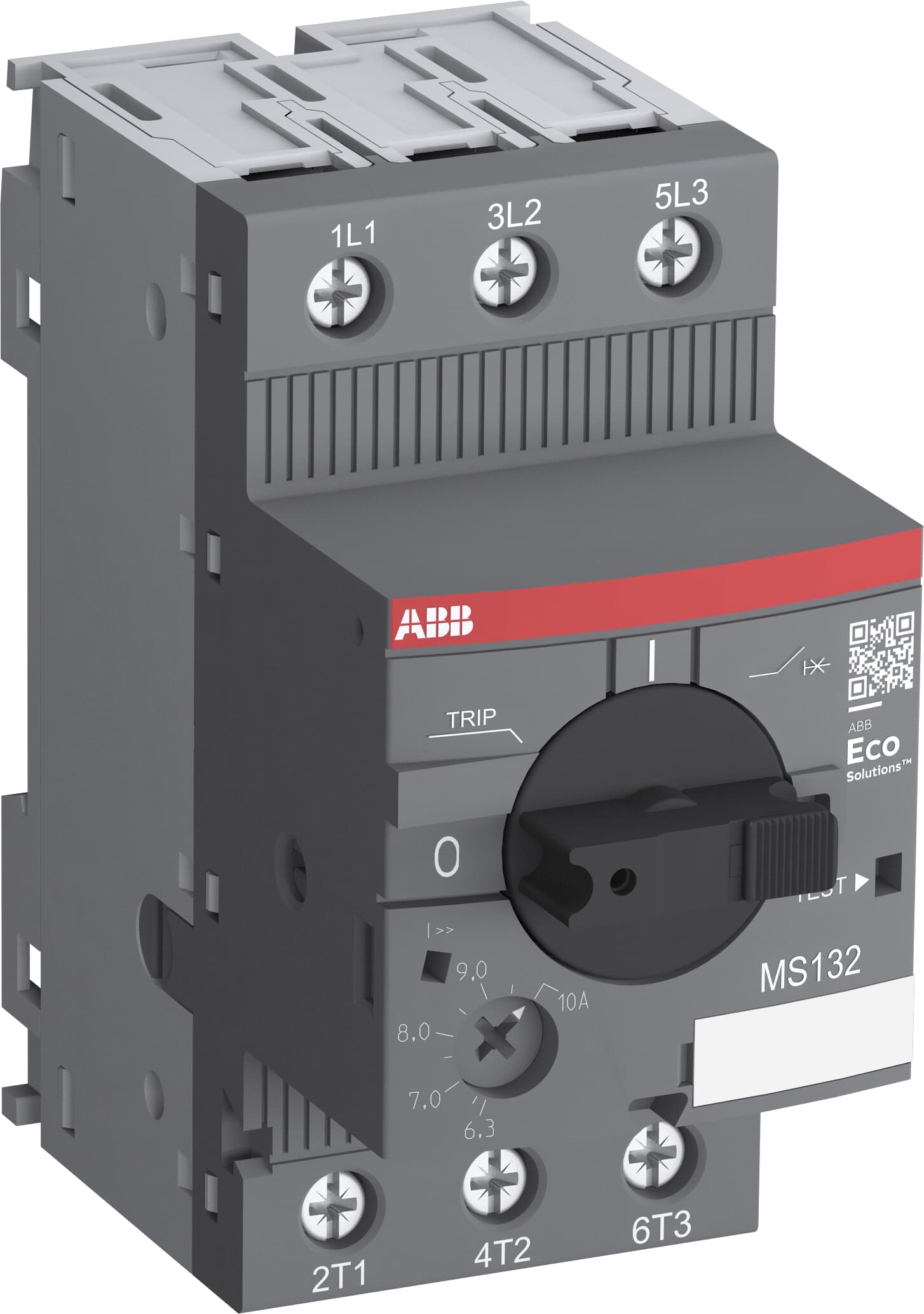

ABB MS132 motor protection circuit breaker
ABB MS132 motor protection circuit breaker, 1.6–2.5 A adjustable setting, 3 pole, trip class 10, screw terminals.
Product specification
MS132-2.5
ABB MS132 motor protection circuit breaker, 1.6–2.5 A adjustable setting, 3 pole, trip class 10, screw terminals.
Dimensions & specifications
| Manufacturer | ABB |
|---|---|
| ABB order code | 1SAM350000R1007 |
| Thermal setting range | 1.6–2.5 A |
| Trip class | 10 |
| Poles | 3 |
| Motor rating at 400 V | 0.75 kW |
| Connection | Screw terminals |
| Width | 45 mm |
| Height | 90 mm |
| Depth | 86.75 mm |
| Size | MS132 |
Choose the setting range to suit the motor nameplate current.
