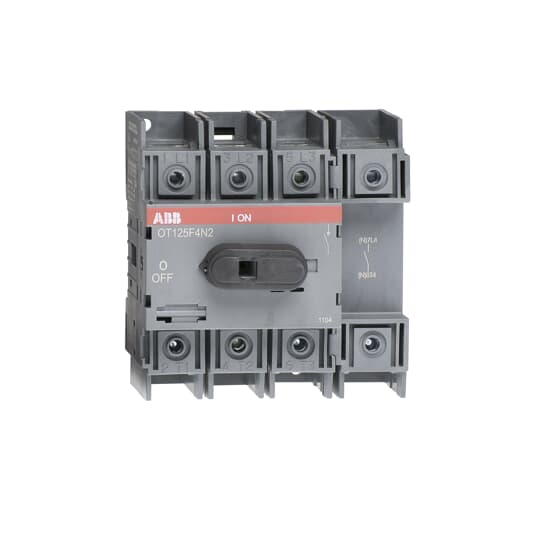

ABB OT125F4N2 4-pole switch disconnector
OT125F4N2
ABB OT125F4N2 4-pole switch disconnector, 125 A AC-21A, base / DIN rail mounting.
- Rated current
- 125 A
Product specification
OT125F4N2
ABB OT125F4N2 4-pole switch disconnector, 125 A AC-21A, base / DIN rail mounting.
Dimensions & specifications
Siemens 3LD: 3 poles, handle and infeed covers included. ABB OT: 4 poles, separate handle and shaft selected below. AC-21A current is shown; check motor-duty AC-23A ratings for the application.
Accessories & related parts
OT125F4N2 — specifications & documents
ABB OT125F4N2 4-pole switch disconnector, 125 A AC-21A, base / DIN rail mounting.
| Manufacturer | ABB |
|---|---|
| Rated current (AC-21A) | 125 A |
| Poles | 4 |
| Mounting | Base / DIN rail |
| Operation | Door-coupled with separate selector handle and shaft |
| Included | Switch body only; select handle and shaft below |
| Motor duty | AC-21A rating shown; check ABB AC-23A ratings for the motor load. |
Related parts
- OHYS2AJ ABB OHYS2AJ selector handle, red / yellow, for OT16–125F.
- OHBS2AJ ABB OHBS2AJ selector handle, black, for OT16–125F.
- OXS6X85 ABB OXS6X85 selector-handle shaft, 6 mm × 85 mm.
- OXS6X105 ABB OXS6X105 selector-handle shaft, 6 mm × 105 mm.
- OXS6X120 ABB OXS6X120 selector-handle shaft, 6 mm × 120 mm.
- OXS6X130 ABB OXS6X130 selector-handle shaft, 6 mm × 130 mm.
- OXS6X160 ABB OXS6X160 selector-handle shaft, 6 mm × 160 mm.
- OXS6X180 ABB OXS6X180 selector-handle shaft, 6 mm × 180 mm.
- OXS6X250 ABB OXS6X250 selector-handle shaft, 6 mm × 250 mm.
- OXS6X330 ABB OXS6X330 selector-handle shaft, 6 mm × 330 mm.
