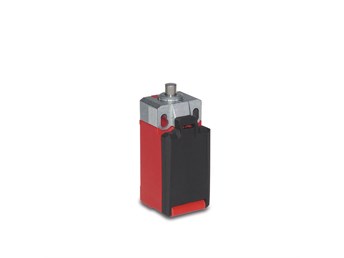

Bernstein IN65-SU1Z SM limit switch
6083000207
IN65-SU1Z SM limit switch, metal plunger, snap action, 1 NO + 1 NC contacts, M20 cable entry.
- Actuator
- Metal plunger
- Contact action
- Snap action
- Contacts
- 1 NO + 1 NC
Product specification
6083000207
IN65-SU1Z SM limit switch, metal plunger, snap action, 1 NO + 1 NC contacts, M20 cable entry.
Dimensions & specifications
Core range with 1 NO + 1 NC contacts and M20 × 1.5 cable entries. Cable glands are selected separately. Refer to the product datasheet for operating travel and wiring.
Accessories & related parts
6083000207 — specifications & documents
IN65-SU1Z SM limit switch, metal plunger, snap action, 1 NO + 1 NC contacts, M20 cable entry.
| Range | IN65 |
|---|---|
| Model | IN65-SU1Z SM |
| Actuator | Metal plunger |
| Actuator construction | Plunger (Steel, nickel) |
| Contact action | Snap action |
| Contacts | 1 NO + 1 NC |
| AC-15 rating | 3 A at 240 V AC |
| DC-13 rating | 1.5 A at 24 V DC |
| Thermal current | 5 A |
| Protection | IP66 / IP67 |
| Housing | Glass-fibre-reinforced thermoplastic |
| Connection | Four M3 screw terminals |
| Cable entry | 1 × M20 × 1.5 |
| Conductor cross-section | 0.34–1.5 mm² |
| Operating temperature | −30 to +75 °C |
| Installation note | IP rating requires correctly closed cover and a suitable cable gland and cable. |
