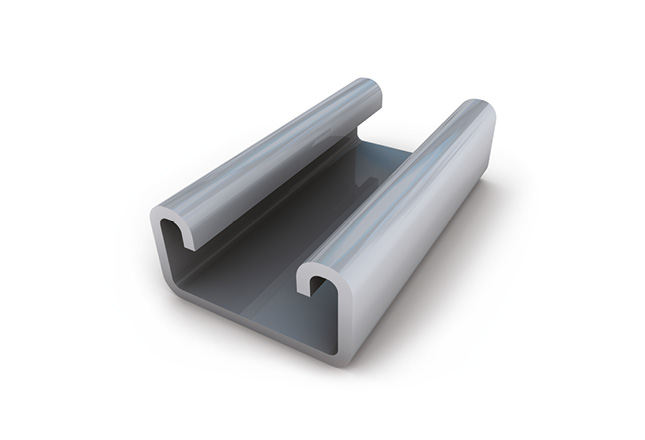

Strut channel & accessories

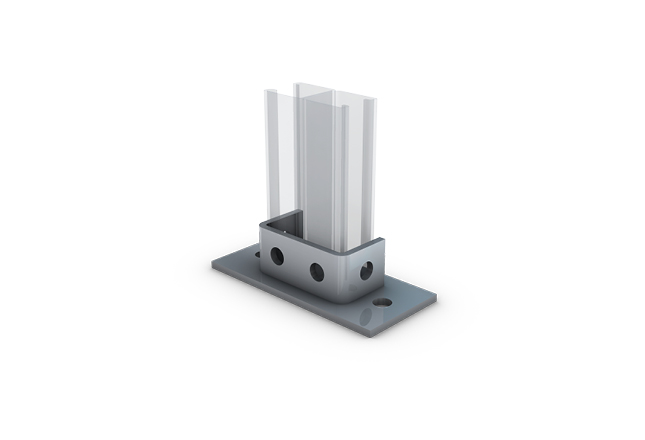

Double-channel base plate

176 × 80 × 40 mm · Hot-dip galvanised (standard)

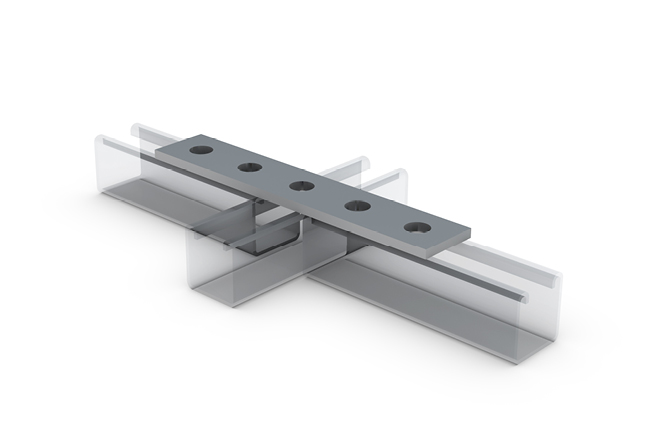

Five-hole plate

40 × 220 mm · Hot-dip galvanised (standard)

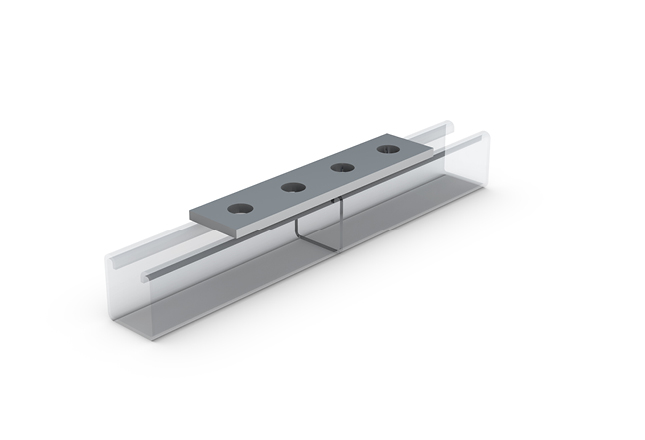

Four-hole plate

40 × 176 mm · Hot-dip galvanised (standard)

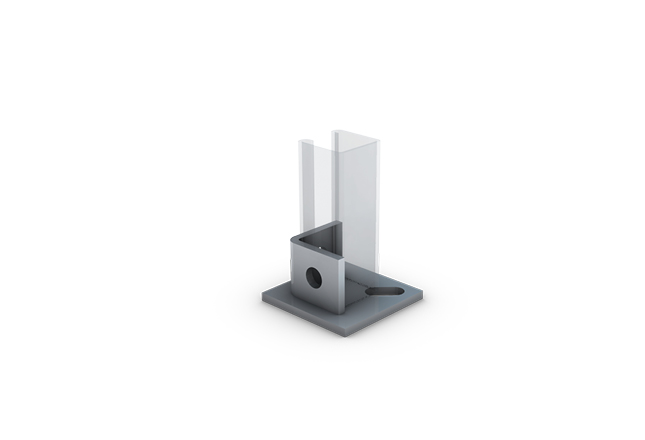

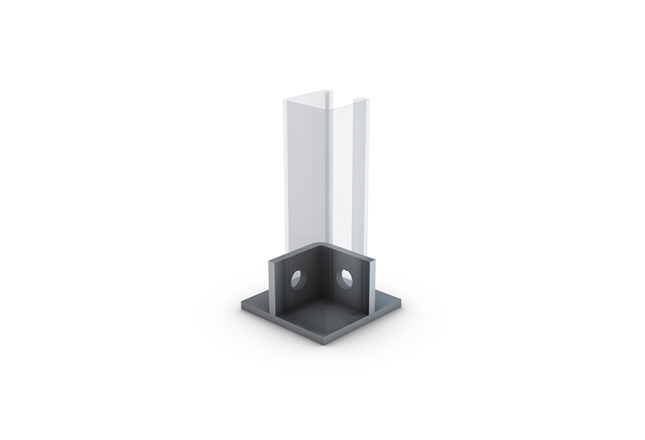

Single-channel base plate, central

80 × 80 × 40 mm · Hot-dip galvanised (standard)

Single-channel base plate, offset

80 × 80 × 40 mm · Hot-dip galvanised (standard)

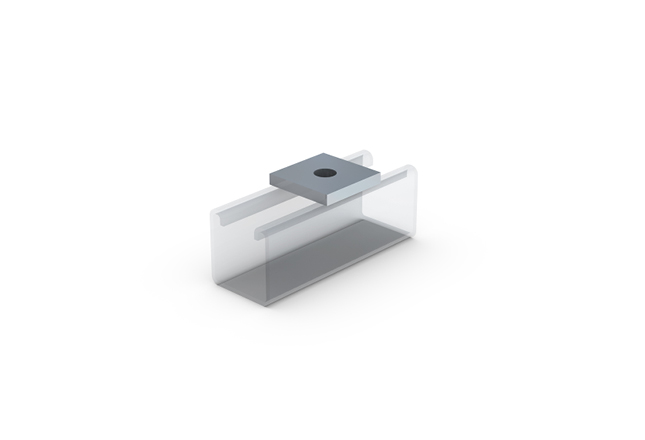

Square plate

6 mm · Hot-dip galvanised (standard)

Square plate

8 mm · Hot-dip galvanised (standard)

Square plate

10 mm · Hot-dip galvanised (standard)

Square plate

12 mm · Hot-dip galvanised (standard)

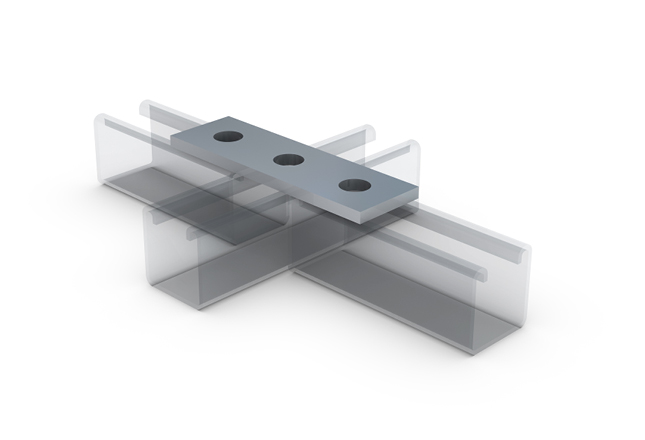

Three-hole plate

40 × 132 mm · Hot-dip galvanised (standard)

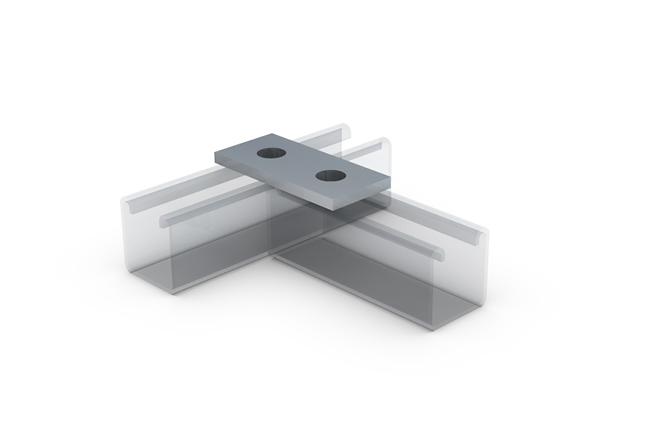

Two-hole plate

40 × 88 mm · Hot-dip galvanised (standard)

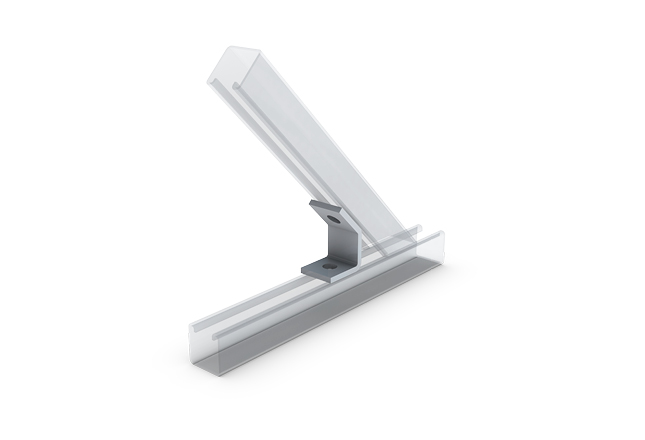

45-degree acute angle bracket

48 × 45 mm · Hot-dip galvanised (standard)

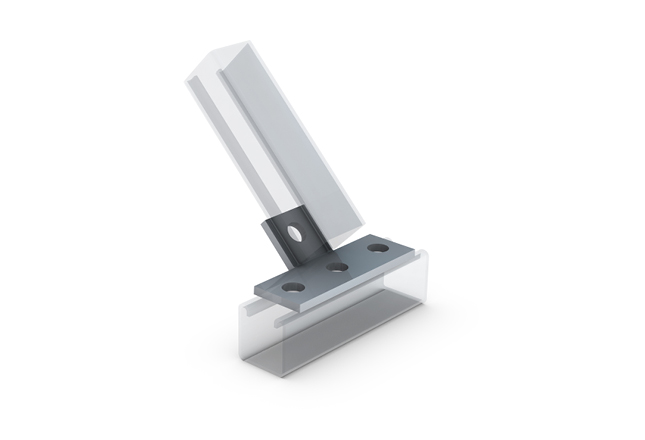

45-degree angle bracket

120 mm · Hot-dip galvanised (standard)

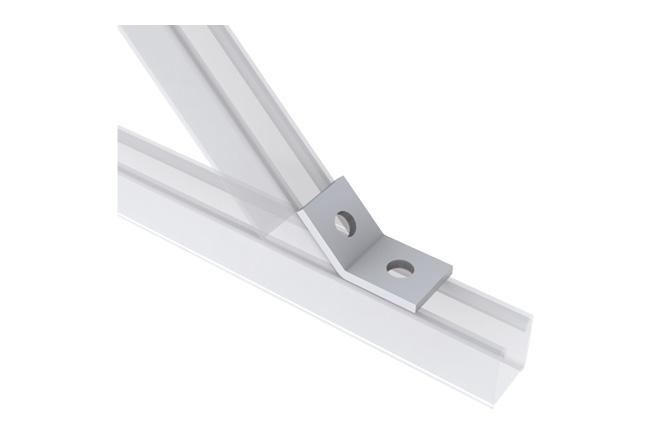

45-degree obtuse angle bracket

64 × 46 mm · Hot-dip galvanised (standard)

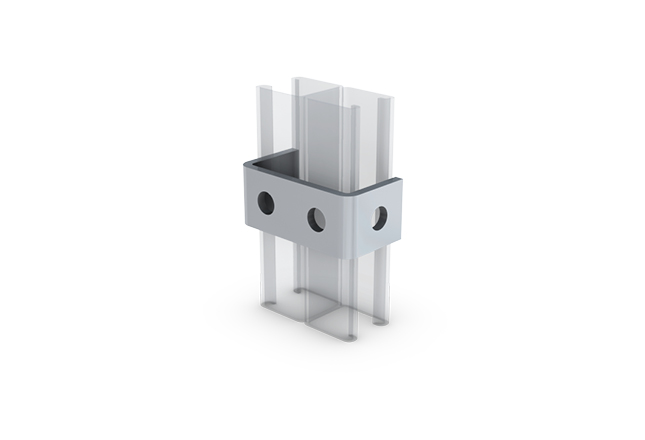

Back-to-back bracket

97 × 50 mm · Hot-dip galvanised (standard)

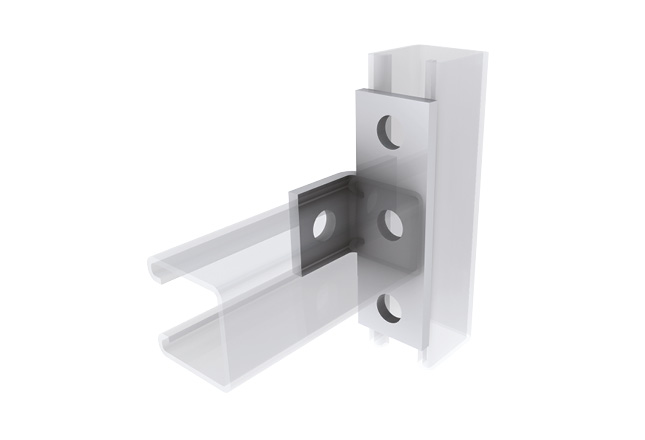

Channel support bracket

120 mm · Hot-dip galvanised (standard)

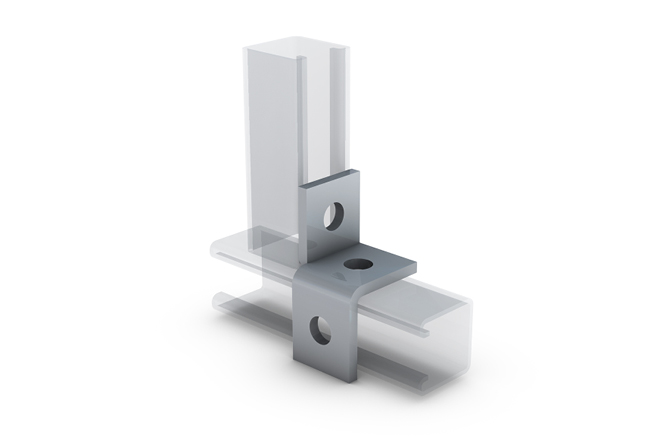

Channel support bracket L/H

40 × 51 mm · Hot-dip galvanised (standard)

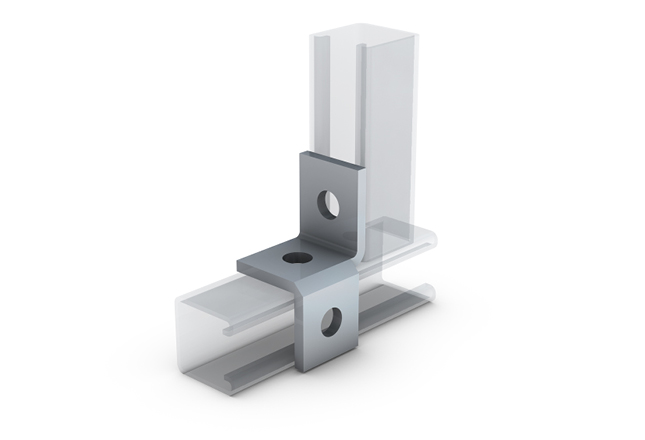

Channel support bracket R/H

40 × 51 mm · Hot-dip galvanised (standard)

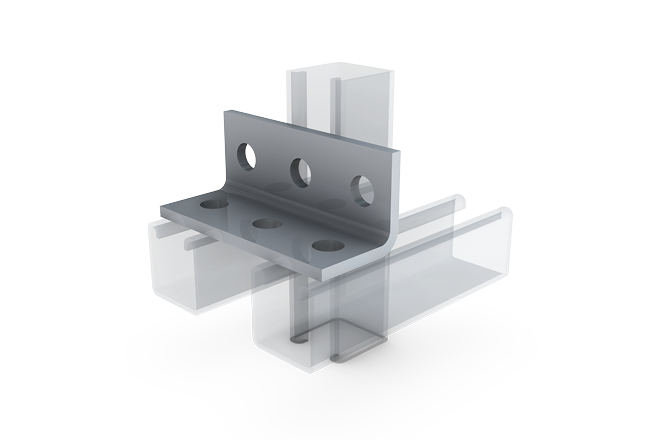

Cross-support bracket

120 × 49 × 49 mm · Hot-dip galvanised (standard)

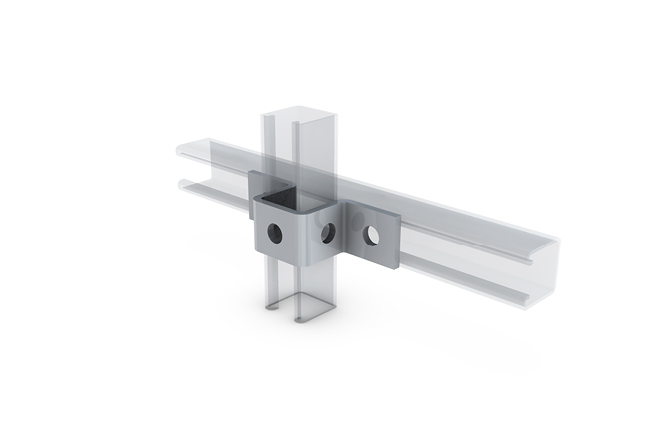

Deep U bracket

150 × 55 × 48 mm · Hot-dip galvanised (standard)

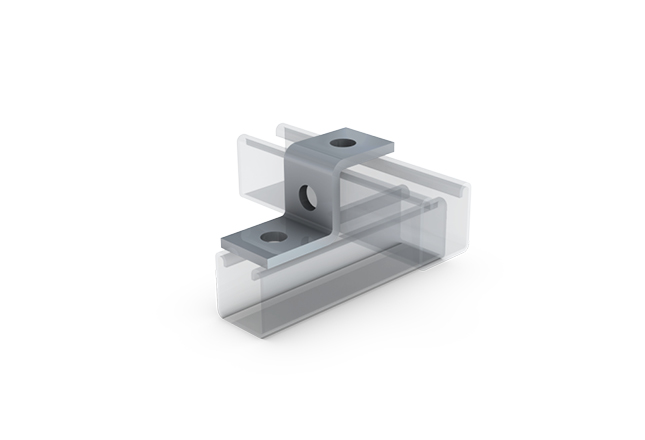

Deep Z bracket

55 × 50 × 47 mm · Hot-dip galvanised (standard)

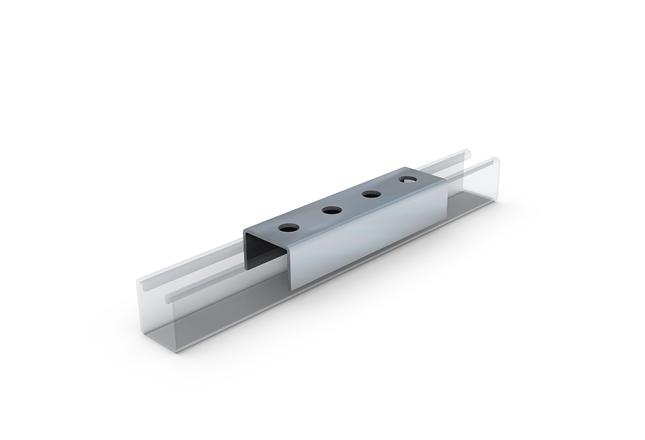

Deep external connector

176 × 34 mm · Hot-dip galvanised (standard)

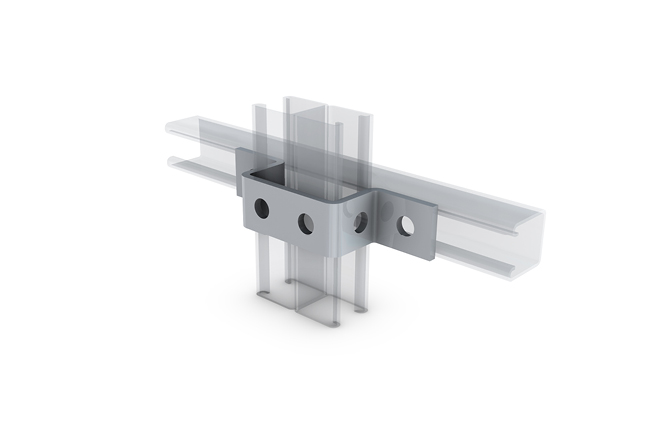

Double-channel bracket

192 × 96 × 48 mm · Hot-dip galvanised (standard)

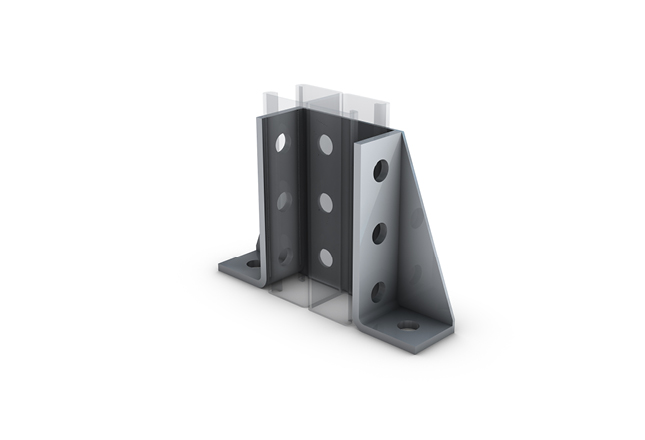

Double-channel wing fitting

195 × 131 mm · Hot-dip galvanised (standard)

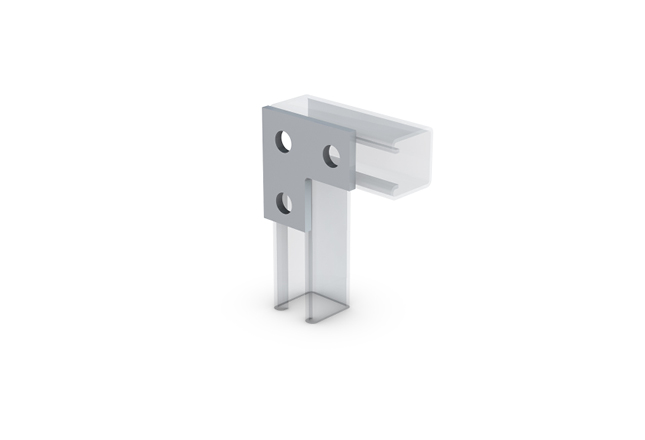

L bracket

80 × 80 mm · Hot-dip galvanised (standard)

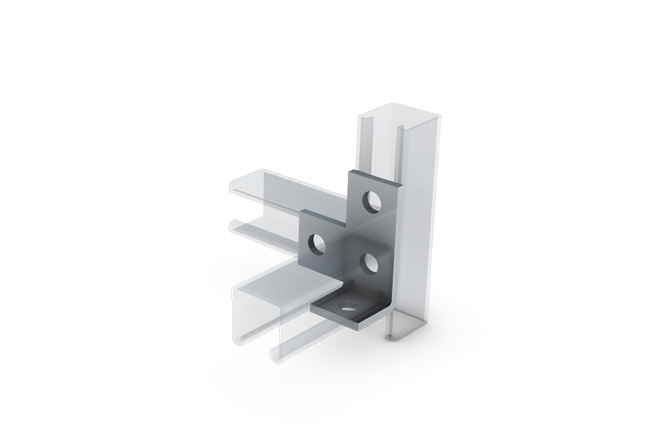

L/H channel support bracket

40 × 89 mm · Hot-dip galvanised (standard)

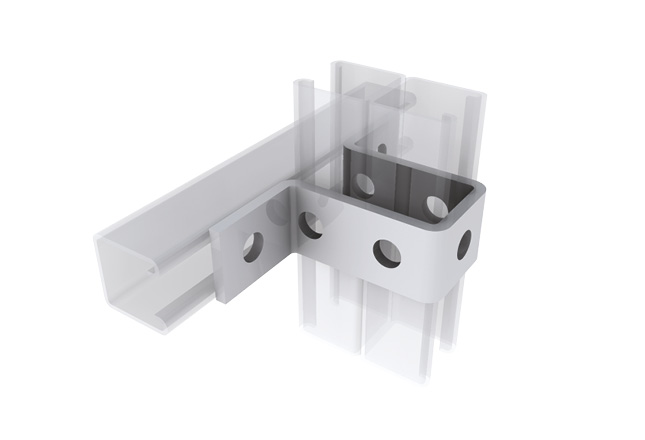

Multi-channel bracket

159 × 55 × 88 mm · Hot-dip galvanised (standard)

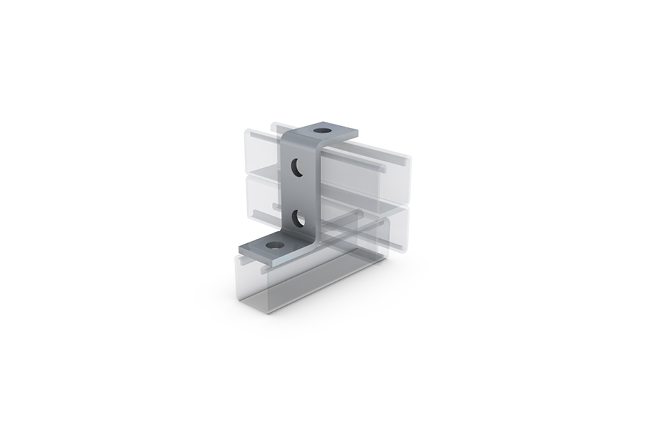

Multiple Z bracket

55 × 90 × 51 mm · Hot-dip galvanised (standard)

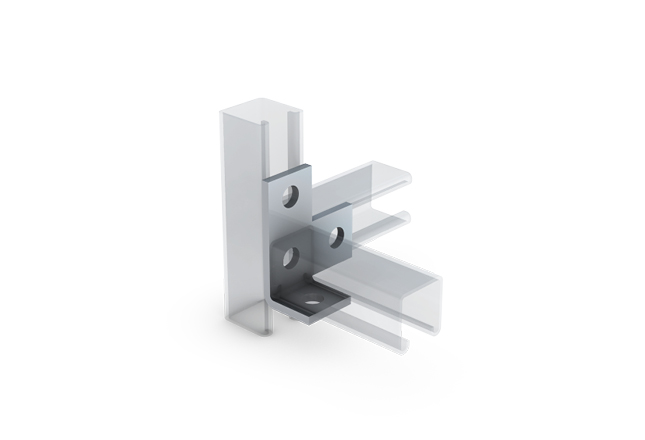

R/H channel support bracket

40 × 89 mm · Hot-dip galvanised (standard)

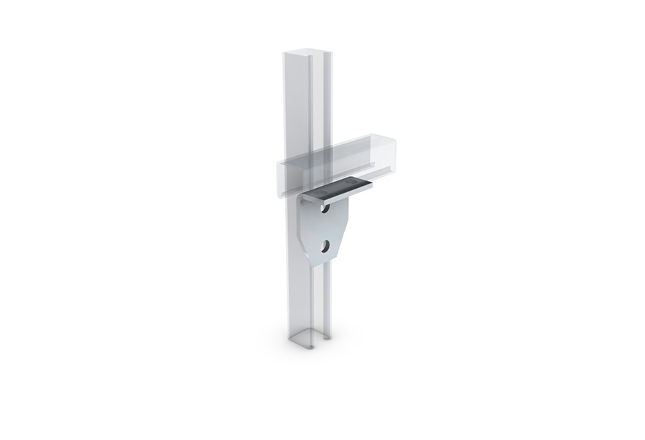

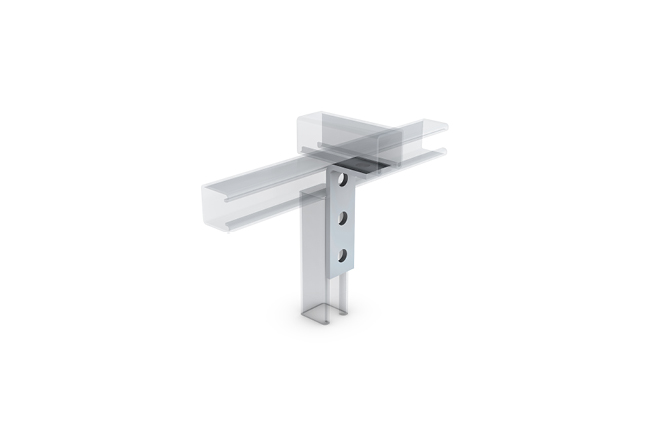

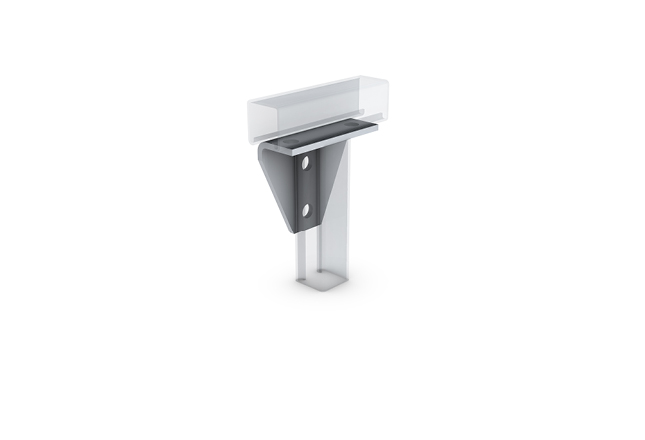

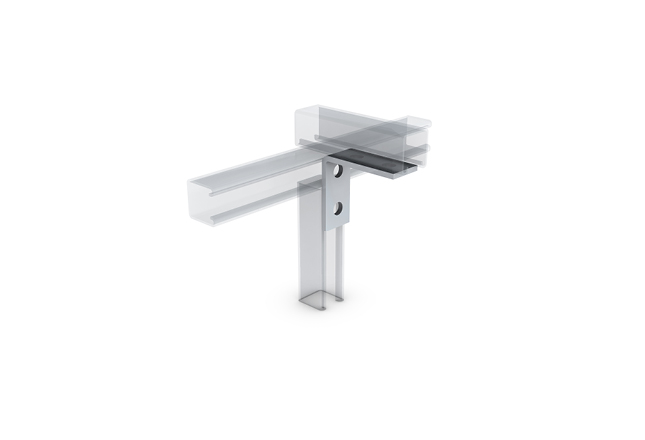

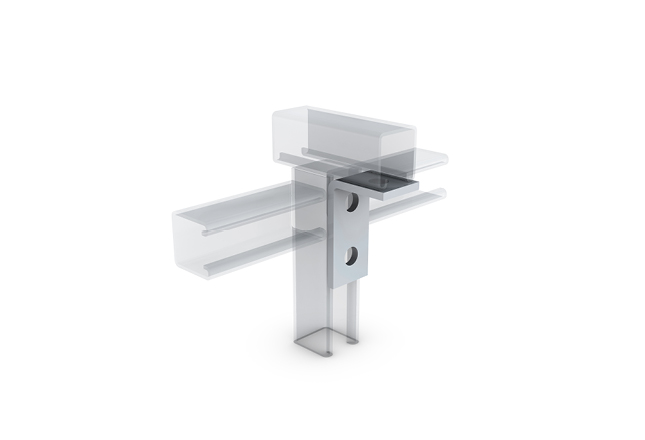

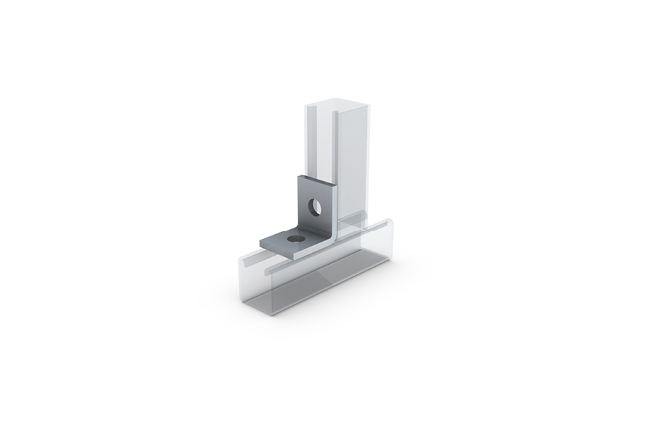

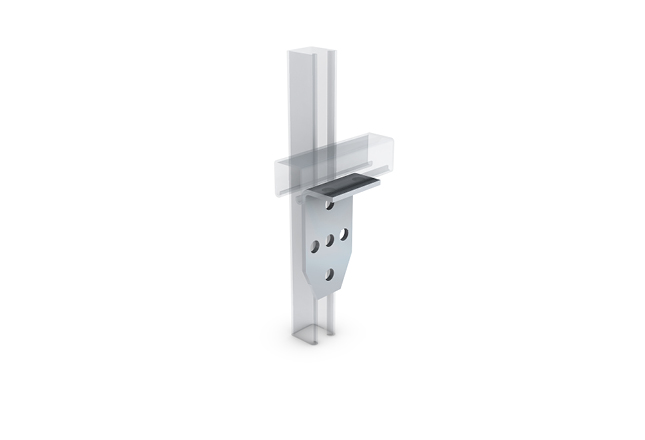

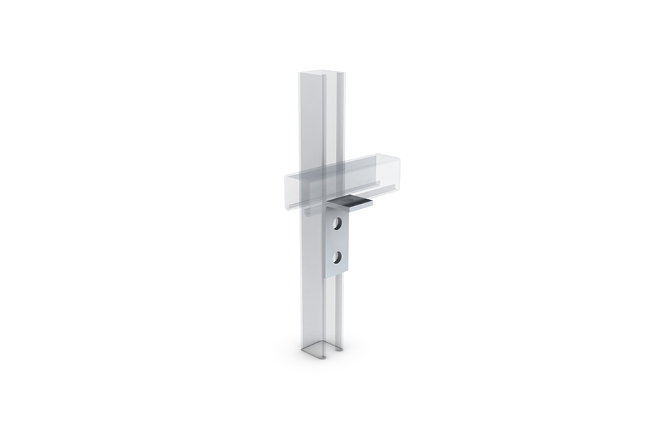

Right-angle bracket

43 × 99 mm · Hot-dip galvanised (standard)

Right-angle bracket

55 × 87 mm · Hot-dip galvanised (standard)

Right-angle bracket

43 × 55 mm · Hot-dip galvanised (standard)

Right-angle bracket

55 × 131 mm · Hot-dip galvanised (standard)

Right-angle bracket

99 × 87 mm · Hot-dip galvanised (standard)

Right-angle bracket

120 × 105 × 47 mm · Hot-dip galvanised (standard)

Right-angle bracket

80 × 144 × 42 mm · Hot-dip galvanised (standard)

Right-angle bracket

80 × 97 × 47 mm · Hot-dip galvanised (standard)

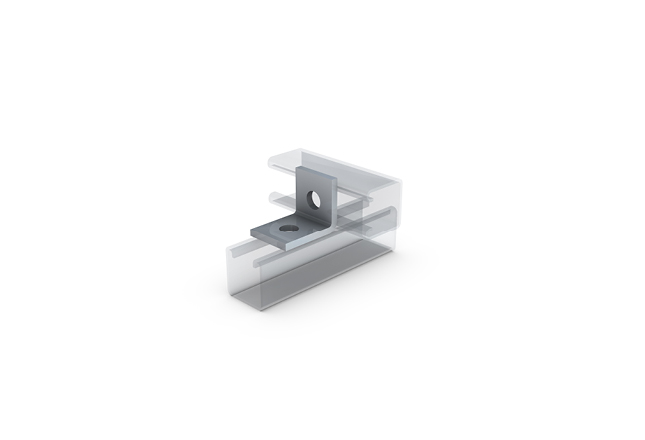

Right-angle bracket

51 × 51 mm · Hot-dip galvanised (standard)

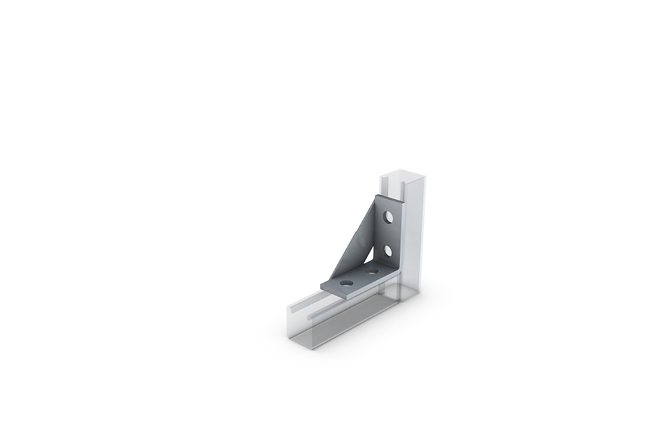

Right-angle shelf bracket

99 × 87 mm · Hot-dip galvanised (standard)

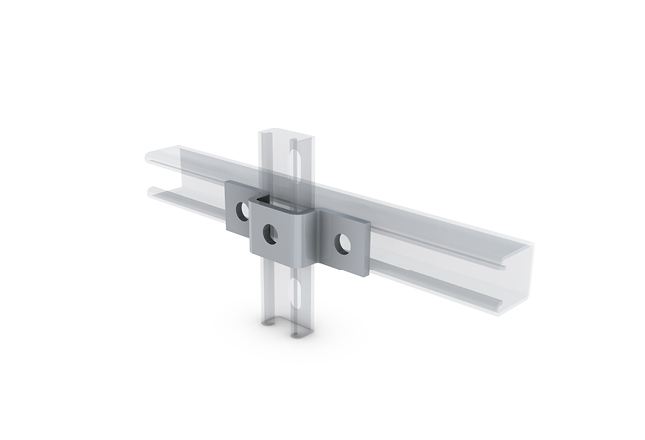

Shallow U bracket

141 × 55 × 27 mm · Hot-dip galvanised (standard)

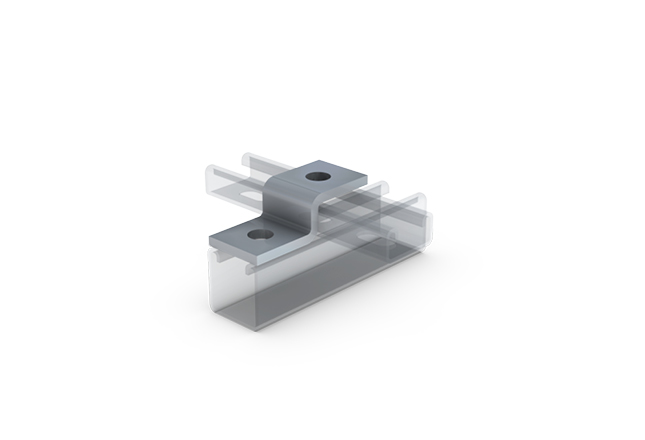

Shallow Z bracket

49 × 27 mm · Hot-dip galvanised (standard)

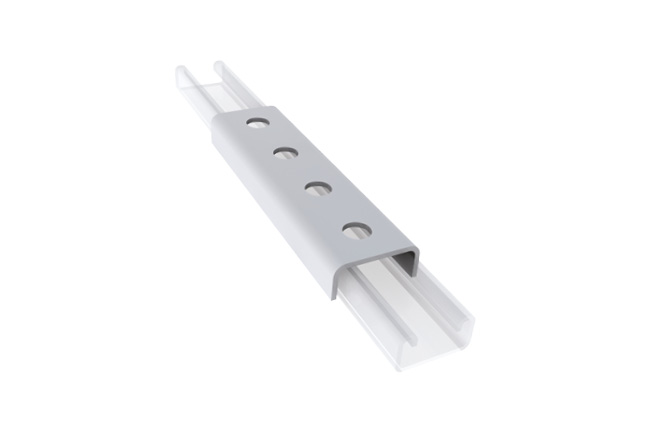

Shallow external connector

176 × 21 mm · Hot-dip galvanised (standard)

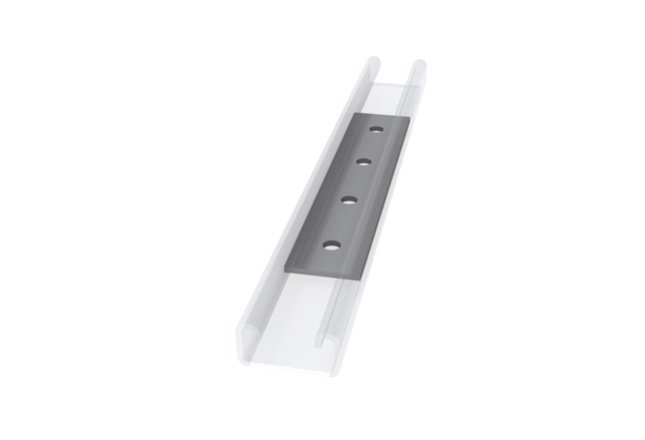

Shallow internal connector

176 mm · Hot-dip galvanised (standard)

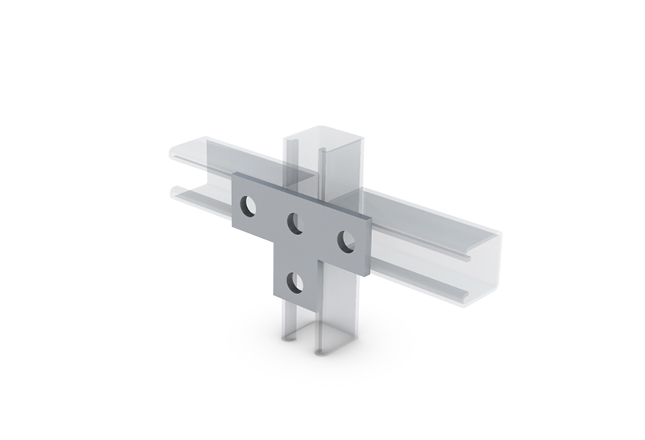

T bracket

120 × 80 mm · Hot-dip galvanised (standard)

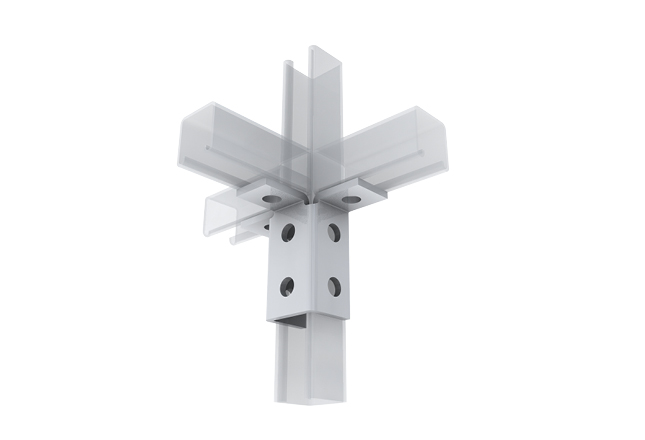

Three-leg wing fitting

129 × 99 mm · Hot-dip galvanised (standard)

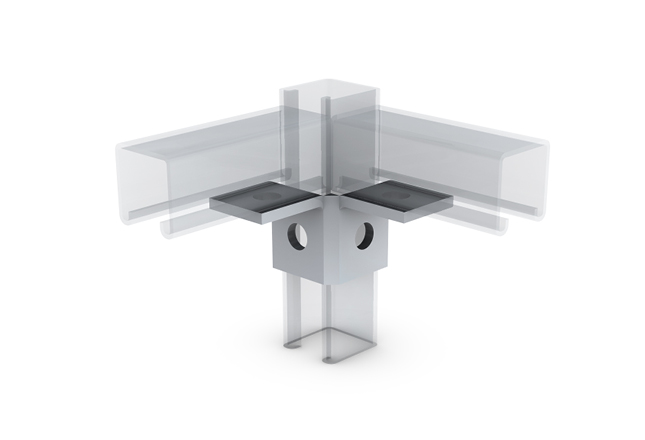

Three-way corner bracket

51 mm · Hot-dip galvanised (standard)

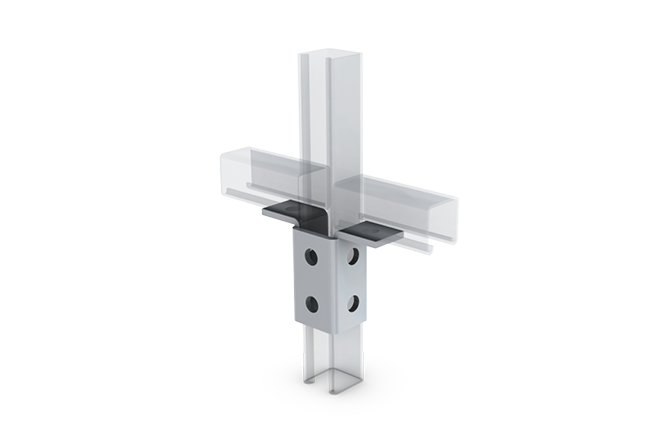

Two-leg wing fitting

129 × 99 mm · Hot-dip galvanised (standard)

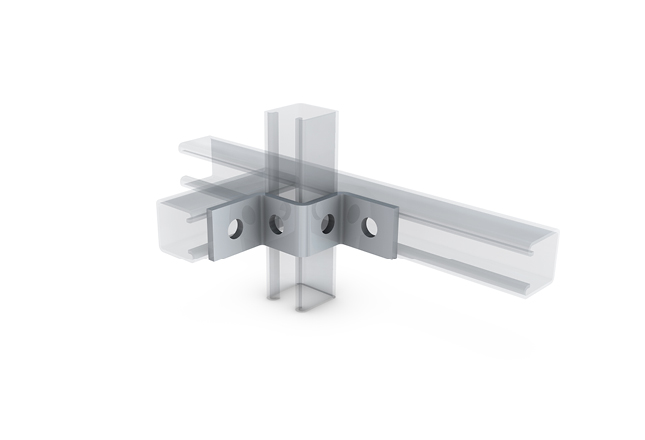

W-shaped deep bracket

97 × 55 × 40 mm · Hot-dip galvanised (standard)

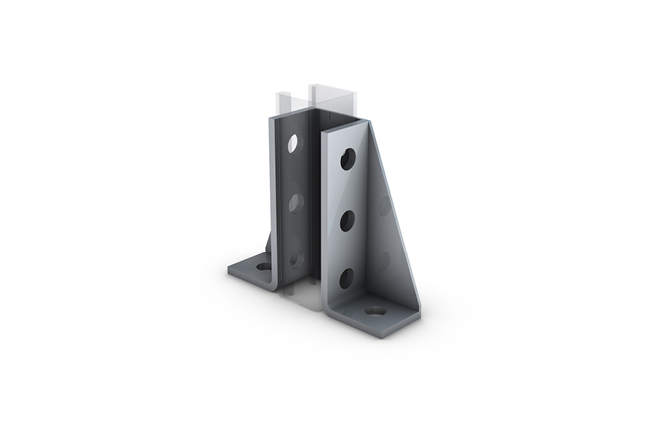

Wing fitting with gussets

153 × 132 mm · Hot-dip galvanised (standard)

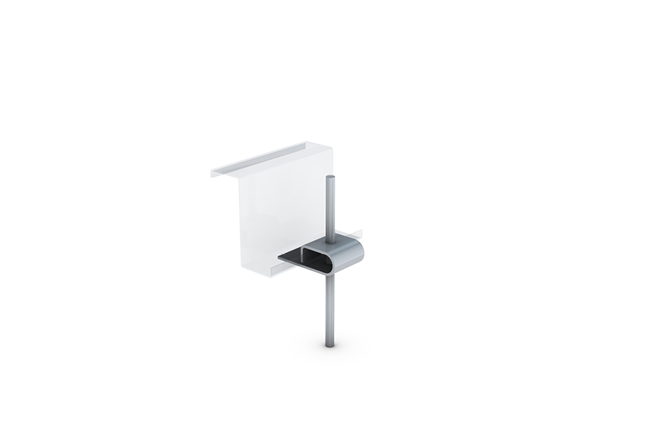

Z-purlin clip

M10 hole · Hot-dip galvanised (standard)

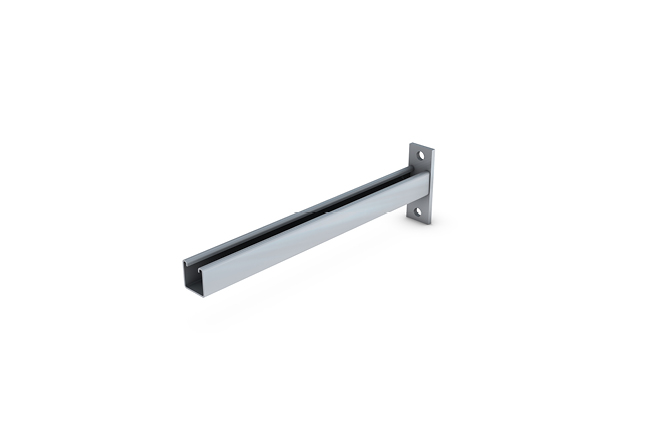

Single-channel cantilever arm

150 mm arm · Hot-dip galvanised

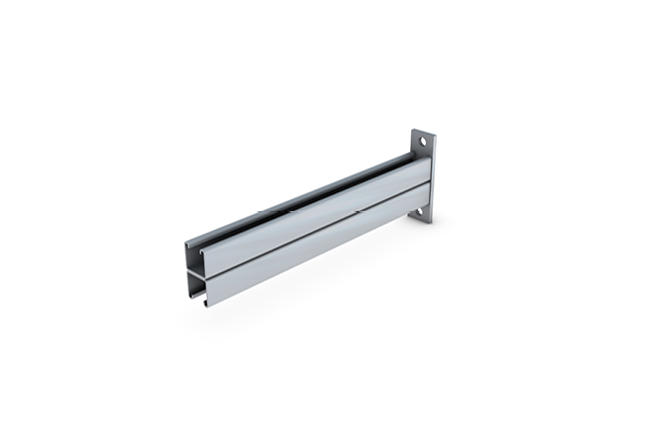

Back-to-back cantilever arm

150 mm arm · Hot-dip galvanised

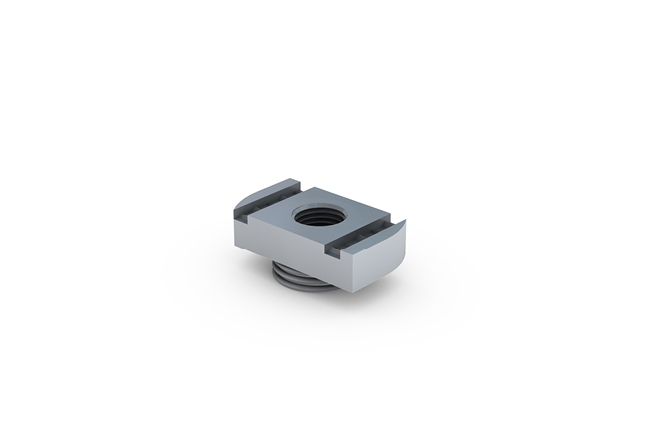

Short-spring channel nut

M6

Long-spring channel nut

M6

Channel nut without spring

M6

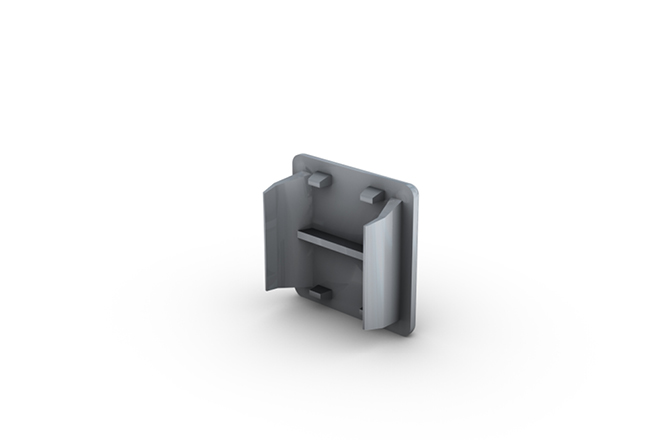

Deep channel end cap

Black PVC

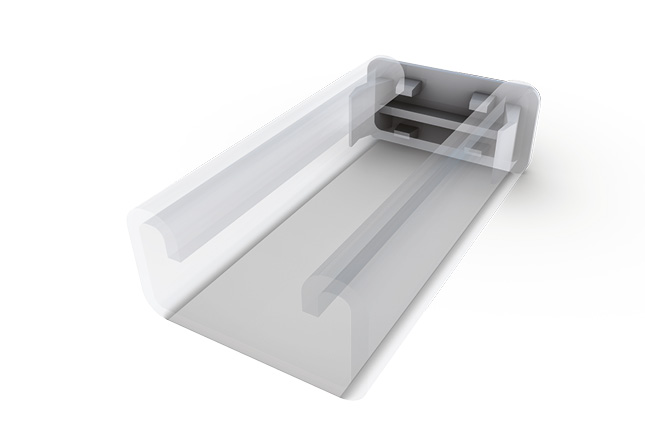

Shallow channel end cap

Black PVC

Basket-to-channel klip

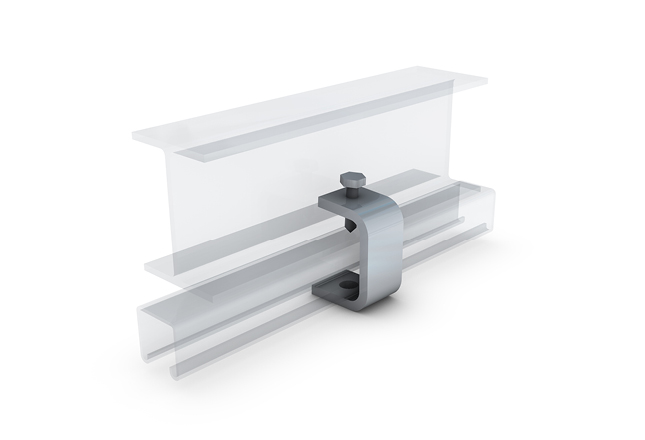

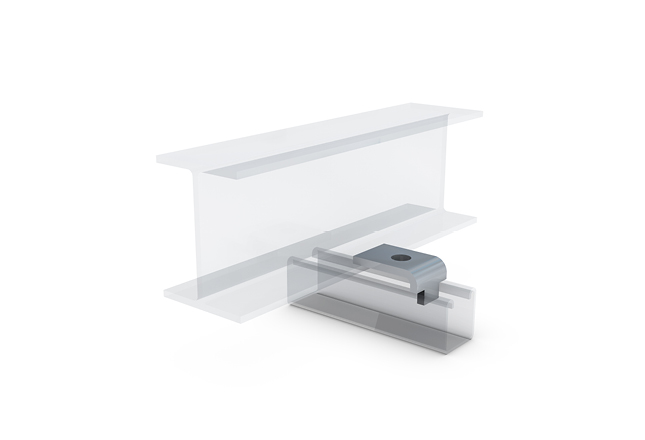

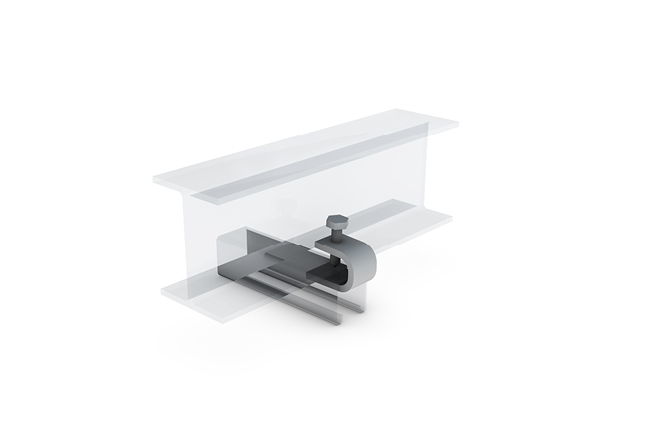

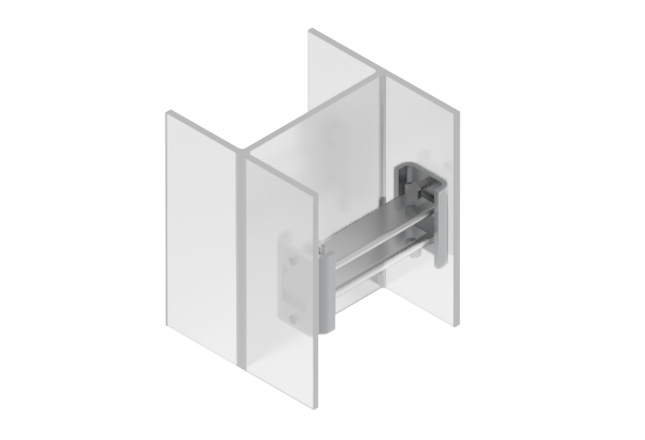

Beam clamp

Hot-dip galvanised (standard)

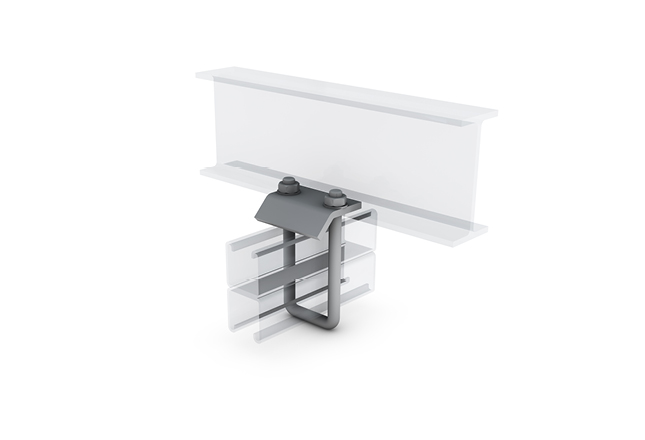

Beam clamp for back-to-back deep channel

Flange up to 25 mm · Hot-dip galvanised (standard)

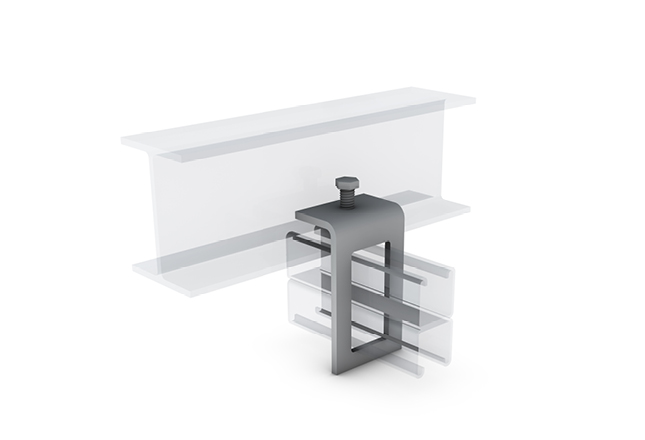

Beam clamp for deep back-to-back window

Flange up to 15 mm · Hot-dip galvanised (standard)

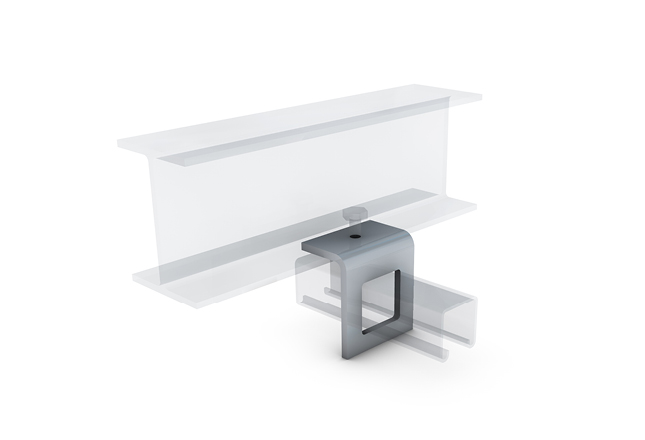

Beam clamp for deep channel

Flange up to 15 mm · Hot-dip galvanised (standard)

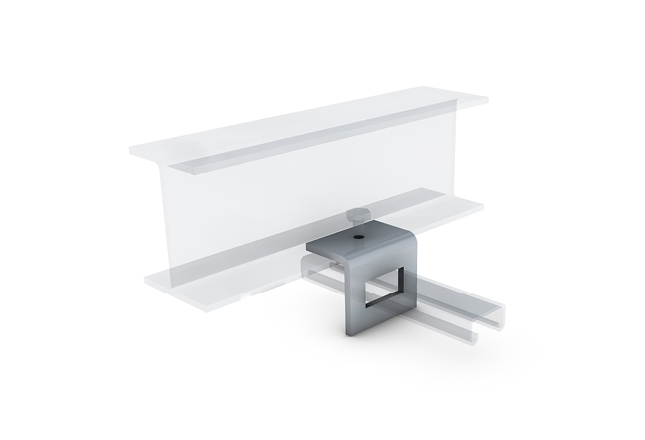

Beam clamp for shallow channel

Flange up to 15 mm · Hot-dip galvanised (standard)

C-shaped beam clamp

Flange up to 17 mm · Hot-dip galvanised (standard)

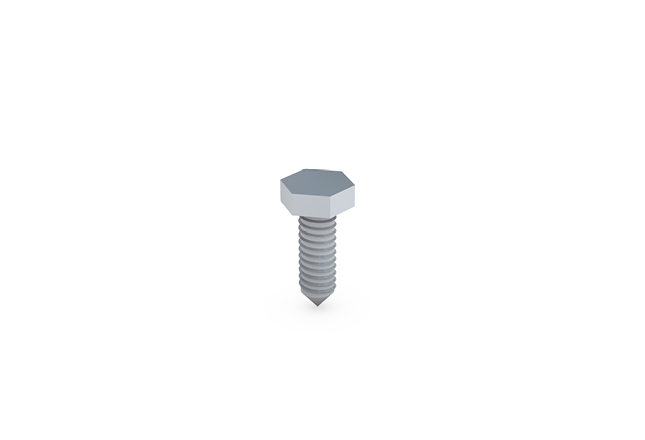

Cone-pointed bolt

M10 × 40 mm

Deep C-shaped beam clamp

Flange up to 18 mm · Hot-dip galvanised (standard)

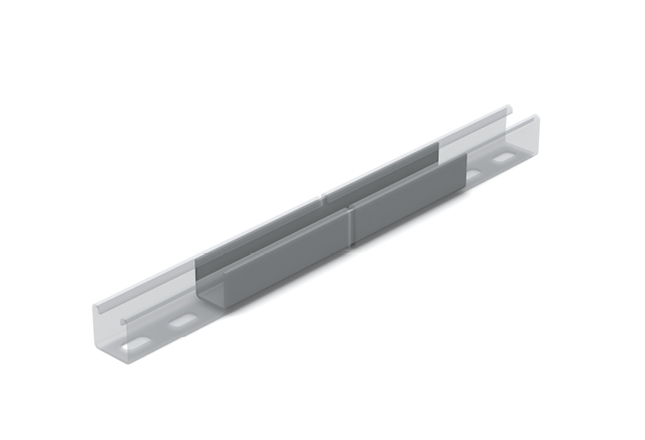

Deep internal connector

176 × 33 mm · Pre-galvanised

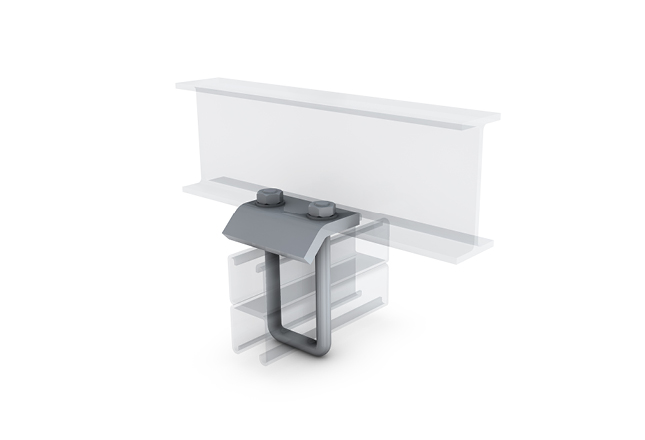

Heavy-duty beam clamp for back-to-back deep channel

Flange up to 25 mm · Hot-dip galvanised (standard)

J-shaped beam clamp

Hot-dip galvanised (standard)

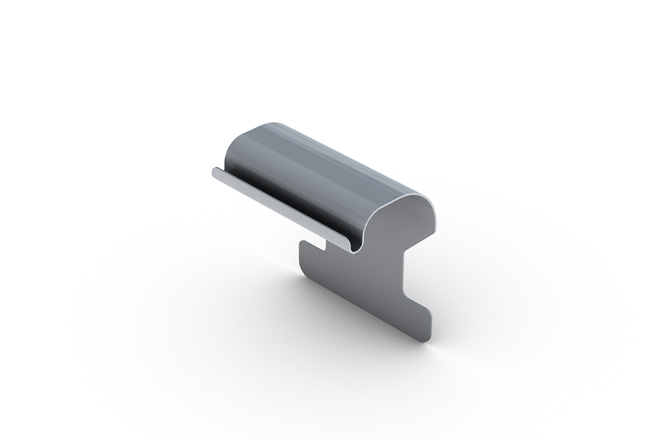

Tray-to-channel klip

KLMR

Trunking-to-channel bracket

50 mm trunking height

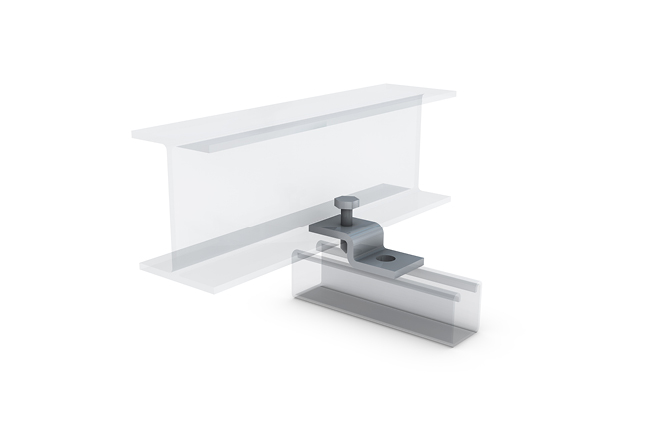

Z-shaped beam clamp

Flange up to 17 mm · Hot-dip galvanised (standard)
