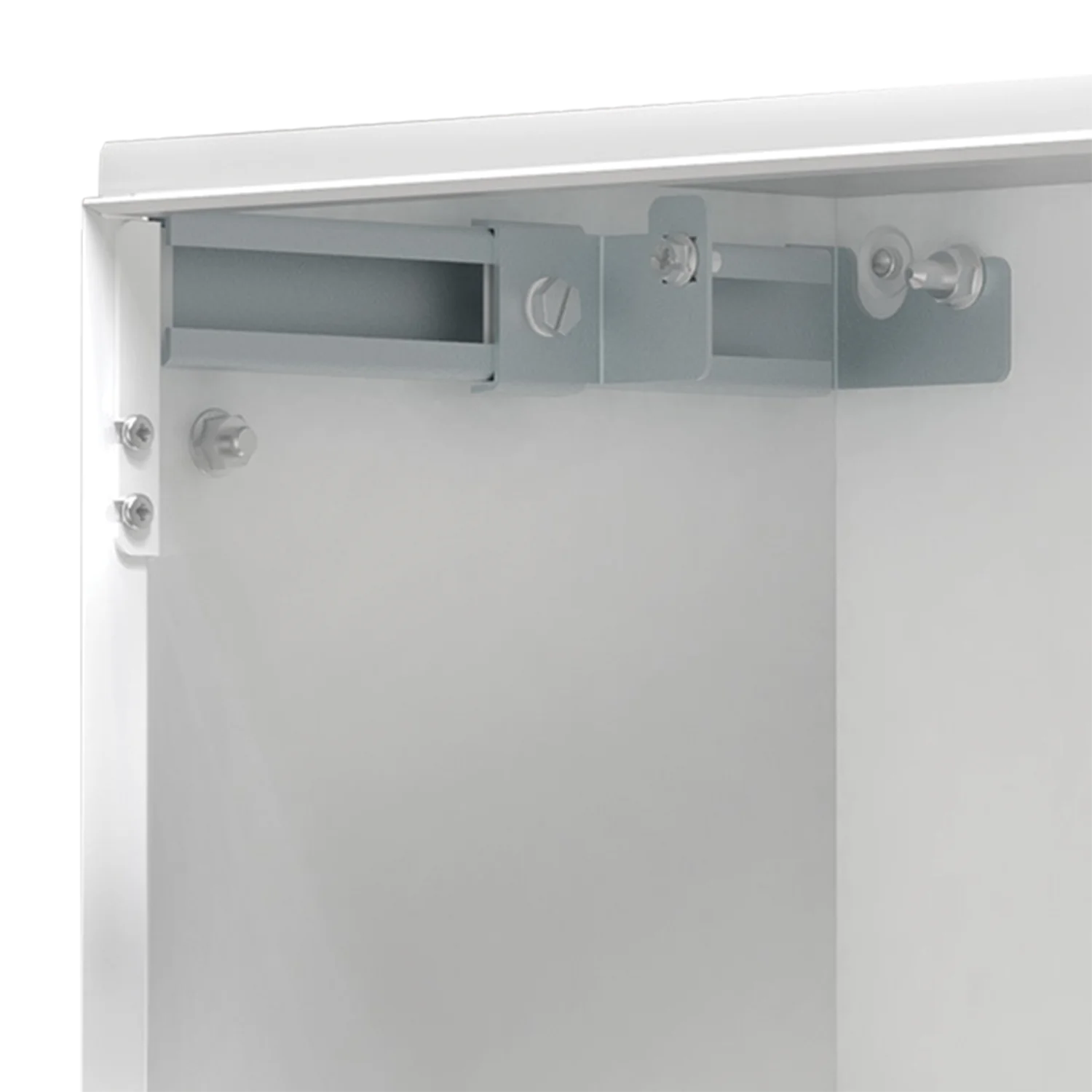

Eldon AMG300 mounting-plate depth adjustment kit for 300 mm deep MAS enclosures. Two pairs with mounting accessories
AMG300
AMG300 mounting-plate depth adjustment kit for 300 mm deep MAS enclosures. Two pairs with mounting accessories.
- Application
- Eldon enclosures
- Accessory type
- Mounting plate adjustment
- Option
- 300 mm enclosure depth
Product specification
AMG300
AMG300 mounting-plate depth adjustment kit for 300 mm deep MAS enclosures. Two pairs with mounting accessories.
Dimensions & specifications
Accessories are matched to individual parts. A shared manufacturer or frame size alone does not establish compatibility.
Accessories & related parts
AMG300 — specifications & documents
AMG300 mounting-plate depth adjustment kit for 300 mm deep MAS enclosures. Two pairs with mounting accessories.
| Range | AMG |
|---|---|
| For enclosure depth | 300 mm |
| Material | 2 mm galvanised steel |
| Pack quantity | 2 pairs |
| Order unit | 1 kit |
| Adjustment distance from door | 65–265 mm |
Fits these parts
- MAS0504030R5 MAS wall-mounted mild-steel enclosure, 400 × 500 × 300 mm (W × H × D), single door, IP66. Mounting plate and gland plate(s) included.
- MAS0604030R5 MAS wall-mounted mild-steel enclosure, 400 × 600 × 300 mm (W × H × D), single door, IP66. Mounting plate and gland plate(s) included.
- MAS0605030R5 MAS wall-mounted mild-steel enclosure, 500 × 600 × 300 mm (W × H × D), single door, IP66. Mounting plate and gland plate(s) included.
- MAS0606030R5 MAS wall-mounted mild-steel enclosure, 600 × 600 × 300 mm (W × H × D), single door, IP66. Mounting plate and gland plate(s) included.
- MAS0806030R5 MAS wall-mounted mild-steel enclosure, 600 × 800 × 300 mm (W × H × D), single door, IP66. Mounting plate and gland plate(s) included.
- MAS0808030R5 MAS wall-mounted mild-steel enclosure, 800 × 800 × 300 mm (W × H × D), single door, IP66. Mounting plate and gland plate(s) included.
- MAS1008030R5 MAS wall-mounted mild-steel enclosure, 800 × 1000 × 300 mm (W × H × D), single door, IP66. Mounting plate and gland plate(s) included.
