Gewiss interlocked wall socket
GW66009

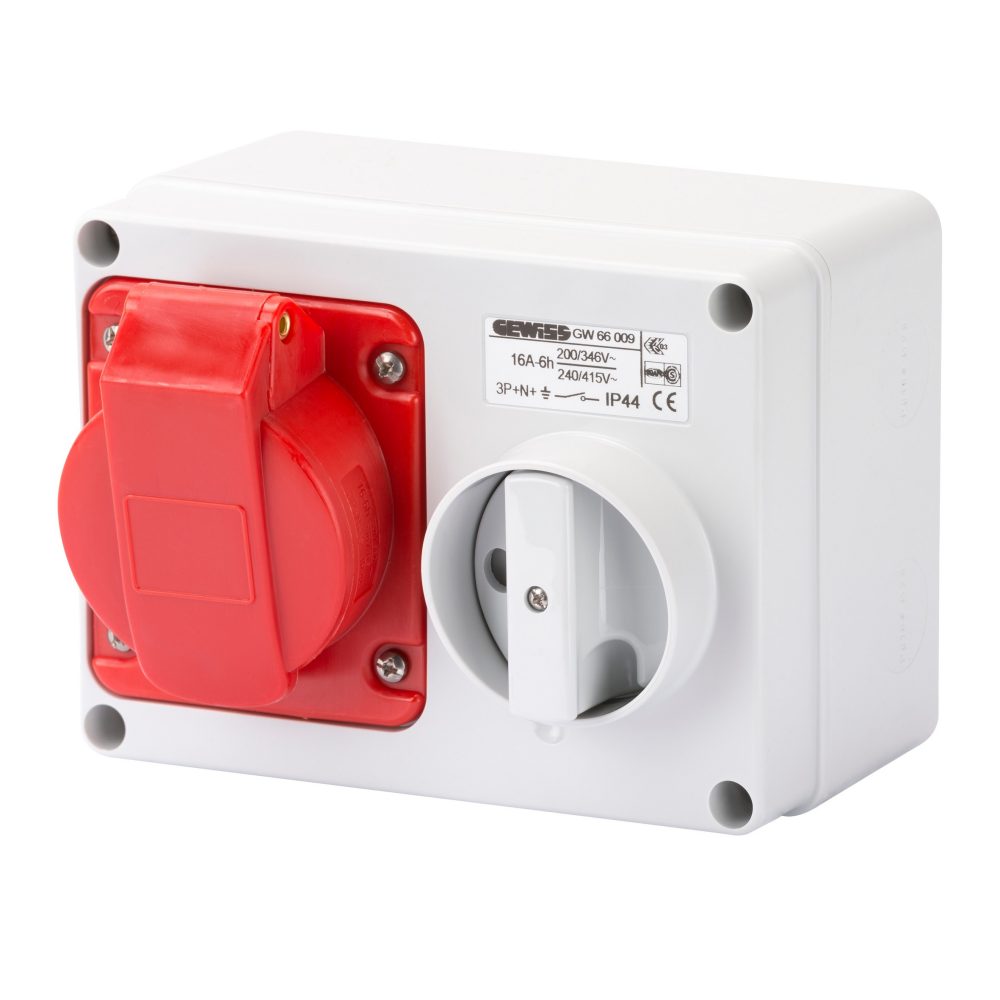

Gewiss interlocked wall socket, 16 A, 400 / 415 V, 3P+N+E, IP44.
- Product type
- Interlocked wall socket
- Current
- 16 A
- Voltage
- 400 / 415 V · 3P+N+E
Product specification
GW66009
Gewiss interlocked wall socket, 16 A, 400 / 415 V, 3P+N+E, IP44.
Dimensions & specifications
Core IP44 range: 16 A or 32 A; 230 V 2P+E or 400/415 V 3P+E (4-pin, no neutral) / 3P+N+E (5-pin, with neutral). Walther plugs and sockets; Gewiss interlocked wall sockets with backbox. Match current, voltage and poles.
Accessories & related parts
GW66009 — specifications & documents
Gewiss interlocked wall socket, 16 A, 400 / 415 V, 3P+N+E, IP44.
| Manufacturer | Gewiss |
|---|---|
| Product type | Interlocked wall socket |
| Current (IEC) | 16 A |
| Voltage | 400 / 415 V |
| Poles | 3P+N+E |
| Pins | 5 |
| Protection | IP44 |
| Colour | Red |
| Clock position | 6h |
| Notes | Horizontal surface mounting; supplied backbox; without fuse-holder base. Supplied20mm conduit coupling and23mm cable gland. IK08; -25 to+40°C. |
