HellermannTyton EL enclosure
EL161

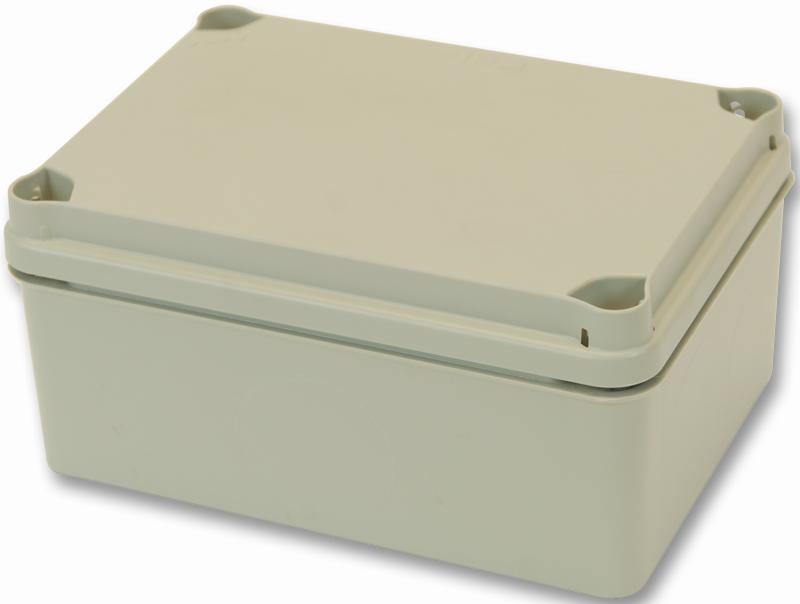

EL161 IP67 polystyrene junction box, 116 × 162 × 78 mm (W × H × D), plain sides and opaque screw-down lid. RAL 7035 grey.
- W × H × D
- EL161 · 116 × 162 × 78 mm
- Protection
- IP67
- Material
- Halogen-free polystyrene
Enclosure sizesEL · compare dimensions and part numbersView size table
Product specification
EL161
EL161 IP67 polystyrene junction box, 116 × 162 × 78 mm (W × H × D), plain sides and opaque screw-down lid. RAL 7035 grey.
Dimensions & specifications
Sizes shown as width × height × depth. DIN rail and mounting plates are separate; mounting-plate options are available on request.
Accessories & related parts
EL161 — specifications & documents
EL161 IP67 polystyrene junction box, 116 × 162 × 78 mm (W × H × D), plain sides and opaque screw-down lid. RAL 7035 grey.
| Range | EL |
|---|---|
| Manufacturer part number | EL161 |
| Width | 116 mm |
| Height | 162 mm |
| Depth | 78 mm |
| Material | Halogen-free polystyrene |
| Colour | RAL 7035 grey |
| Protection | IP67 |
| Impact rating | IK07 |
| Lid | Opaque, screw-down |
| Cable entries | Plain sides; no pre-moulded entries |
| Mounting plate | Separate accessory; available on request |
| Internal mounting | Supports for DIN rail and mounting plates |
| Pack quantity | 1 |
| Size convention | Displayed width × height × depth; manufacturer table lists height × width × depth |
