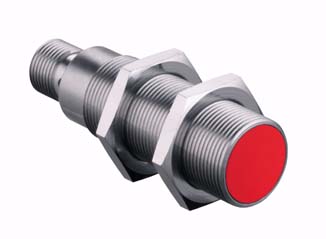

Leuze IS 218MM/4NO-8E0-S12 inductive sensor
50109701
IS 218MM/4NO-8E0-S12 inductive sensor, M18, PNP NO, M12 4-pin.
- Body size
- M18
- Output
- PNP NO
- Connection
- M12 4-pin
Product specification
50109701
IS 218MM/4NO-8E0-S12 inductive sensor, M18, PNP NO, M12 4-pin.
Dimensions & specifications
Select the body size and output. Check sensing distance, flush mounting and wiring against the manufacturer datasheet.
Accessories & related parts
50109701 — specifications & documents
IS 218MM/4NO-8E0-S12 inductive sensor, M18, PNP NO, M12 4-pin.
| Sensing range | 8 mm |
|---|---|
| Supply voltage | 10–30 V DC |
| Dimensions | 18 × 63.5 mm |
| Protection | IP67 |
| Mounting / method | Flush |
| Model | IS 218MM/4NO-8E0-S12 |
| Sensor type | Inductive |
| Body | M18 |
| Output | PNP NO |
| Connection | M12 4-pin |
