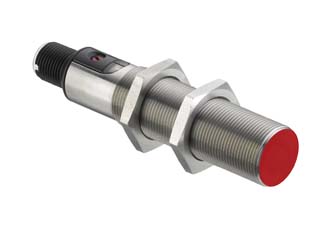

Leuze LCS-1M18M-F08PNO-M12 capacitive sensor
50135704
LCS-1M18M-F08PNO-M12 capacitive sensor, M18, PNP NO, M12 4-pin.
- Body size
- M18
- Output
- PNP NO
- Connection
- M12 4-pin
Product specification
50135704
LCS-1M18M-F08PNO-M12 capacitive sensor, M18, PNP NO, M12 4-pin.
Dimensions & specifications
Select the body size and output. Sensing distance depends on the target material; check the mounting and adjustment requirements.
Accessories & related parts
50135704 — specifications & documents
LCS-1M18M-F08PNO-M12 capacitive sensor, M18, PNP NO, M12 4-pin.
| Sensing range | 1–8 mm adjustable |
|---|---|
| Supply voltage | 10–30 V DC |
| Dimensions | 18 × 88.5 mm |
| Protection | IP67 |
| Mounting / method | Flush |
| Model | LCS-1M18M-F08PNO-M12 |
| Sensor type | Capacitive |
| Body | M18 |
| Output | PNP NO |
| Connection | M12 4-pin |
