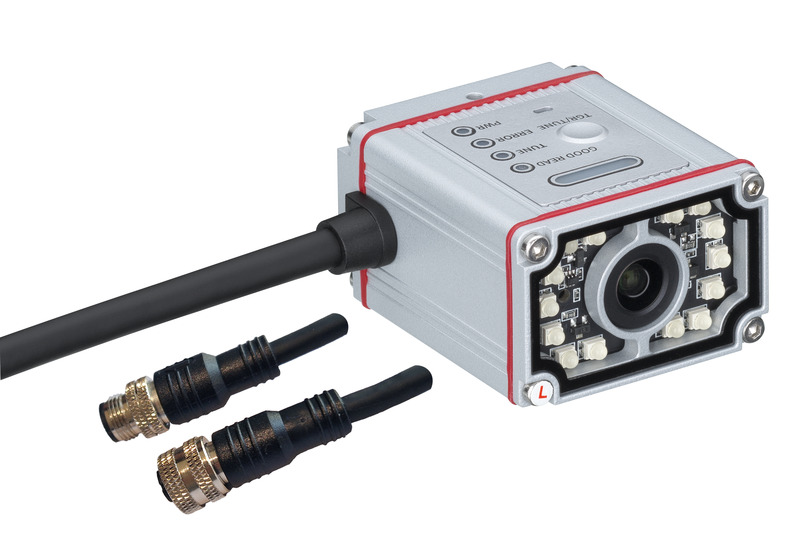

Leuze DCR 108i ADJ-0608-412-R3M camera-based 1D/2D code reader · 1
50155491
DCR 108i ADJ-0608-412-R3M camera-based 1D/2D code reader · 1,080 px × 1,280 px · TCP/IP , UDP, Modbus TCP.
- Range
- DCR 100i
- Model
- DCR 108i ADJ-0608-412-R3M
- Connection
- M12 12-pin + M12 4-pin
Product specification
50155491
DCR 108i ADJ-0608-412-R3M camera-based 1D/2D code reader · 1,080 px × 1,280 px · TCP/IP , UDP, Modbus TCP.
Dimensions & specifications
Reading distance depends on code size, focus and application. Check the exact reading-field data before selection.
Accessories & related parts
50155491 — specifications & documents
DCR 108i ADJ-0608-412-R3M camera-based 1D/2D code reader · 1,080 px × 1,280 px · TCP/IP , UDP, Modbus TCP.
| Range | DCR 100i |
|---|---|
| Model | DCR 108i ADJ-0608-412-R3M |
| Supply voltage | 12 ... 28 V, DC |
| Connection | M12 12-pin + M12 4-pin |
| Protection | IP 64 |
| Dimensions (W × H × D) | 44 mm x 29 mm x 53 mm |
| Housing | Metal |
| Light source | LED, Red |
| Reading distance | 40 ... 550 mm |
| Transmission protocol | TCP/IP , UDP, Modbus TCP |
| Focus | Manualy adjustable |
| Camera resolution, horizontal | 1,080 px |
| Camera resolution, vertical | 1,280 px |
| Output | Opto-coupled transistor |
Related parts
- 50135082 KSS ET-M12-4A-RJ45-A-P7-100 — interconnection cable
- 50135081 KSS ET-M12-4A-RJ45-A-P7-050 — interconnection cable
- 50135080 KSS ET-M12-4A-RJ45-A-P7-020 — interconnection cable
- 50130283 KD S-M12-CA-P1-100 — connection cable, M12 12-pin female, straight, 10 m, PUR.
- 50130282 KD S-M12-CA-P1-050 — connection cable, M12 12-pin female, straight, 5 m, PUR.
- 50130281 KD S-M12-CA-P1-020 — connection cable, M12 12-pin female, straight, 2 m, PUR.
- 50154483 BT DCR 100 — mounting device
