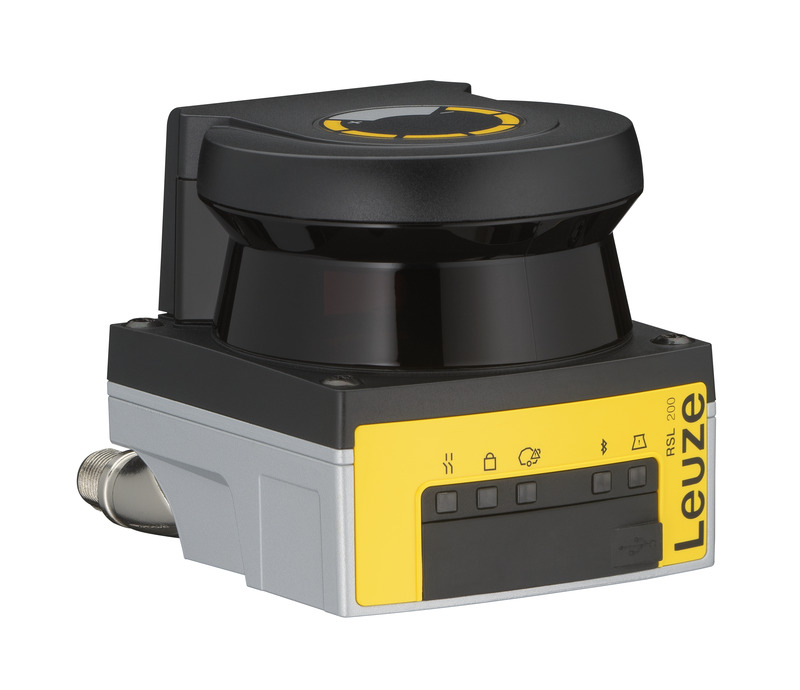

Leuze RSL230-S/12-M12 compact safety laser scanner · 0 ... 3 m protective field · 275 ° scanning angle
53802107
RSL230-S/12-M12 compact safety laser scanner · 0 ... 3 m protective field · 275 ° scanning angle.
- Range
- RSL 200
- Model
- RSL230-S/12-M12
- Connection
- M12 12-pin A-coded machine connection
Product specification
53802107
RSL230-S/12-M12 compact safety laser scanner · 0 ... 3 m protective field · 275 ° scanning angle.
Dimensions & specifications
Safety functions, field configuration and installation must be verified against the exact manufacturer operating instructions.
Accessories & related parts
53802107 — specifications & documents
RSL230-S/12-M12 compact safety laser scanner · 0 ... 3 m protective field · 275 ° scanning angle.
| Range | RSL 200 |
|---|---|
| Model | RSL230-S/12-M12 |
| Supply voltage | 24 V, DC, -30 ... 20 % |
| Connection | M12 12-pin A-coded machine connection |
| Protection | IP 65 |
| Dimensions (W × H × D) | 80 mm x 80 mm x 86 mm |
| Housing | Metal · Plastic |
| Light source | Laser · Laser,Infrared |
| Response time | ≥ 75 ms |
| Switchable field triples | 32 Piece(s) |
| Scanning angle | 275 ° |
| Operating range | 0 ... 3 m |
| Output | Transistor, PNP |
| Protective field range | 0 ... 3 m |
| Selection note | Safety functions, field configuration and installation must be verified against the exact manufacturer operating instructions. |
| Configuration interface | USB 2.0 Type C; passive USB configuration cable up to 5 m |
| Ethernet interface | M12 4-pin D-coded |
Related parts
- 50130283 KD S-M12-CA-P1-100 — connection cable, M12 12-pin female, straight, 10 m, PUR.
- 50130282 KD S-M12-CA-P1-050 — connection cable, M12 12-pin female, straight, 5 m, PUR.
- 50130281 KD S-M12-CA-P1-020 — connection cable, M12 12-pin female, straight, 2 m, PUR.
- 50151103 KSS US-USB2-A-USB2-C-V1-020 — service line
- 50135082 KSS ET-M12-4A-RJ45-A-P7-100 — interconnection cable
- 50135081 KSS ET-M12-4A-RJ45-A-P7-050 — interconnection cable
- 50135080 KSS ET-M12-4A-RJ45-A-P7-020 — interconnection cable
- 50152258 BT 500M — mounting plate
- 50152257 BTU 500M-Set — mounting system
