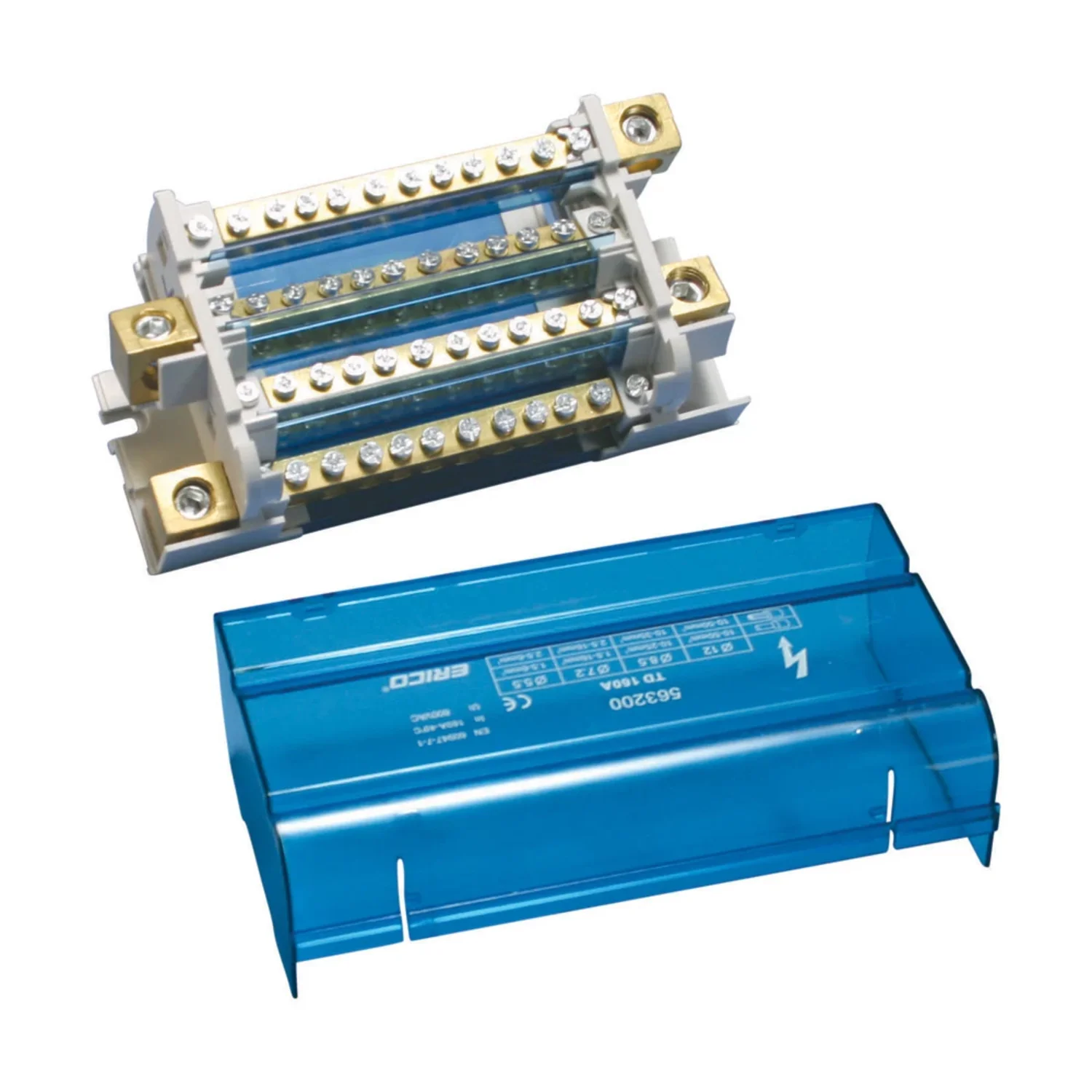

nVent ERIFLEX TD-160A 4-pole distribution block
563200
TD-160A 4-pole distribution block, 160 A IEC, 1 incoming connection and 11 outgoing connections per pole.
- Poles
- 4 pole
- Current
- 160 A
- Connection layout
- 1 in / 11 out · 50 mm depth
Product specification
563200
TD-160A 4-pole distribution block, 160 A IEC, 1 incoming connection and 11 outgoing connections per pole.
Dimensions & specifications
Connection counts are per pole. Capacities for compact-stranded and ferruled conductors are shown separately. Covers are included; compatible bridges appear with the selected block.
Accessories & related parts
563200 — specifications & documents
TD-160A 4-pole distribution block, 160 A IEC, 1 incoming connection and 11 outgoing connections per pole.
| Range | TD |
|---|---|
| Manufacturer catalogue number | TD-160A |
| Manufacturer article number | 563200 |
| Poles | 4 |
| Max IEC current | 160 A |
| IEC voltage (Ui) | 690 V AC |
| Connection method | Screw terminals |
| Incoming connections per pole | 1 |
| Outgoing connections per pole | 11 |
| Mounting | DIN rail or screw fixing to panel |
| Width | 175 mm |
| Height | 90 mm |
| Depth | 50 mm |
| Cover | Included transparent protection cover |
| Pack quantity | 1 |
| Material | Thermoplastic; Brass |
| Incoming — compact stranded | 10–50 mm² |
| Incoming — stranded with ferrule | 10–50 mm² |
| Outgoing — compact stranded | (1) 2.5–6 mm²; (7) 2.5–16 mm²; (3) 10–35 mm² |
| Outgoing — stranded with ferrule | (1) 1.5–6 mm²; (7) 1.5–16 mm²; (3) 10–25 mm² |
| Connection counts | Per pole; do not multiply the stated conductor capacity between terminals. |
