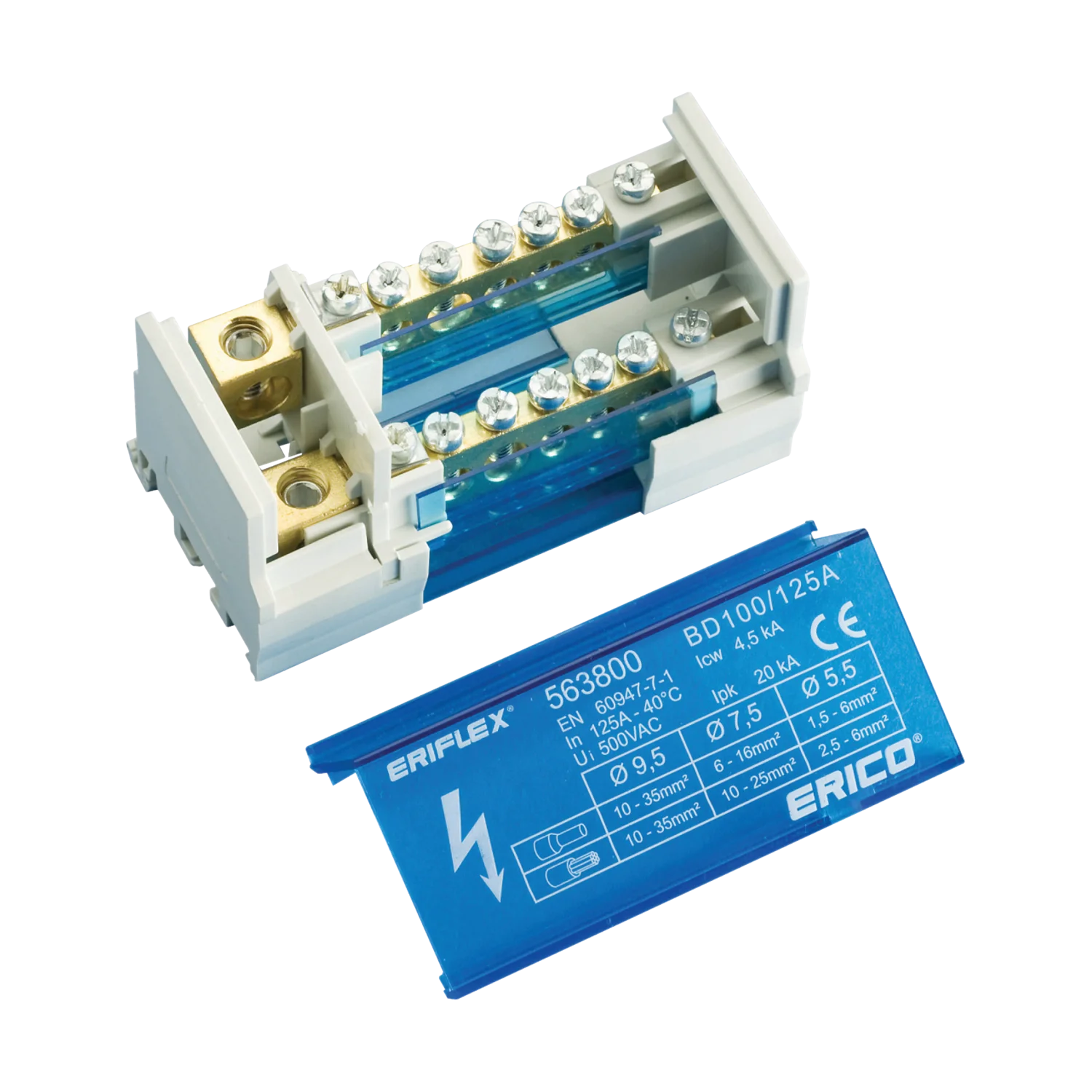

nVent ERIFLEX BD-100-125A 2-pole distribution block
563800
BD-100-125A 2-pole distribution block, 125 A IEC, 1 incoming connection and 6 outgoing connections per pole.
- Poles
- 2 pole
- Current
- 125 A
- Connection layout
- 1 in / 6 out
Product specification
563800
BD-100-125A 2-pole distribution block, 125 A IEC, 1 incoming connection and 6 outgoing connections per pole.
Dimensions & specifications
Connection counts are per pole. Capacities for compact-stranded and ferruled conductors are shown separately. Covers are included; compatible bridges appear with the selected block.
Accessories & related parts
563800 — specifications & documents
BD-100-125A 2-pole distribution block, 125 A IEC, 1 incoming connection and 6 outgoing connections per pole.
| Range | BD |
|---|---|
| Manufacturer catalogue number | BD-100-125A |
| Manufacturer article number | 563800 |
| Poles | 2 |
| Max IEC current | 125 A |
| IEC voltage (Ui) | 690 V AC / DC |
| Connection method | Screw terminals |
| Incoming connections per pole | 1 |
| Outgoing connections per pole | 6 |
| Mounting | DIN rail or screw fixing to panel |
| Width | 94 mm |
| Height | 50 mm |
| Depth | 50 mm |
| Cover | Included transparent protection cover |
| Pack quantity | 1 |
| Incoming — compact stranded | 10–35 mm² |
| Incoming — stranded with ferrule | 10–35 mm² |
| Outgoing — compact stranded | (5) 2.5–6 mm²; (1) 10–25 mm² |
| Outgoing — stranded with ferrule | (5) 1.5–6 mm²; (1) 6–16 mm² |
| Connection counts | Per pole; do not multiply the stated conductor capacity between terminals. |
