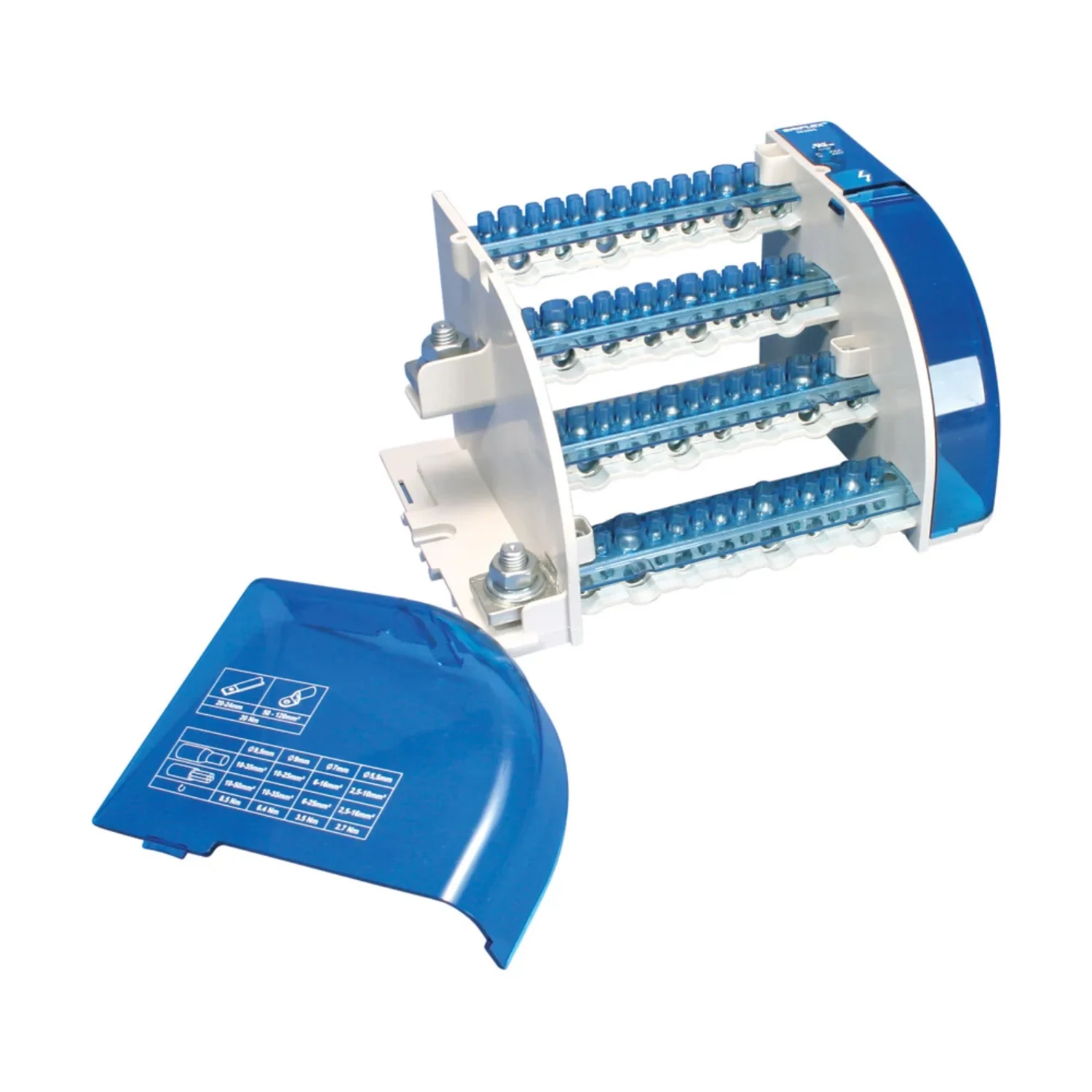

nVent ERIFLEX TDL-400A 4-pole distribution block
563995
TDL-400A 4-pole distribution block, 400 A IEC, 1 incoming connection and 14 outgoing connections per pole.
- Poles
- 4 pole
- Current
- 400 A
- Connection layout
- 1 in / 14 out
Product specification
563995
TDL-400A 4-pole distribution block, 400 A IEC, 1 incoming connection and 14 outgoing connections per pole.
Dimensions & specifications
Connection counts are per pole. Capacities for compact-stranded and ferruled conductors are shown separately. Covers are included; compatible bridges appear with the selected block.
Accessories & related parts
563995 — specifications & documents
TDL-400A 4-pole distribution block, 400 A IEC, 1 incoming connection and 14 outgoing connections per pole.
| Range | TDL |
|---|---|
| Manufacturer catalogue number | TDL-400A |
| Manufacturer article number | 563995 |
| Poles | 4 |
| Max IEC current | 400 A |
| IEC voltage (Ui) | 1000 V AC / 1500 V DC |
| Connection method | Screw terminals |
| Incoming connections per pole | 1 |
| Outgoing connections per pole | 14 |
| Mounting | DIN rail or screw fixing to panel |
| Width | 224 mm |
| Height | 156 mm |
| Depth | 121 mm |
| Cover | Included transparent protection cover |
| Pack quantity | 1 |
| Material | Copper; Thermoplastic |
| Finish | Tinned |
| Protection | IP 10 |
| Incoming — compact stranded | 35–120 mm² |
| Incoming — stranded with ferrule | 35–120 mm² |
| Outgoing — compact stranded | (1) 10–50 mm²; (2) 10–35 mm²; (4) 6–25 mm²; (7) 2.5–16 mm² |
| Outgoing — stranded with ferrule | (1) 10–35 mm²; (2) 10–25 mm²; (4) 6–16 mm²; (7) 2.5–10 mm² |
| Max UL/CSA current | 400 A |
| Connection counts | Per pole; do not multiply the stated conductor capacity between terminals. |
| Incoming conductor options | 35–120 mm² cable with lug, or 20–24 mm wide Flexibar / insulated braid; see connection drawing. |
