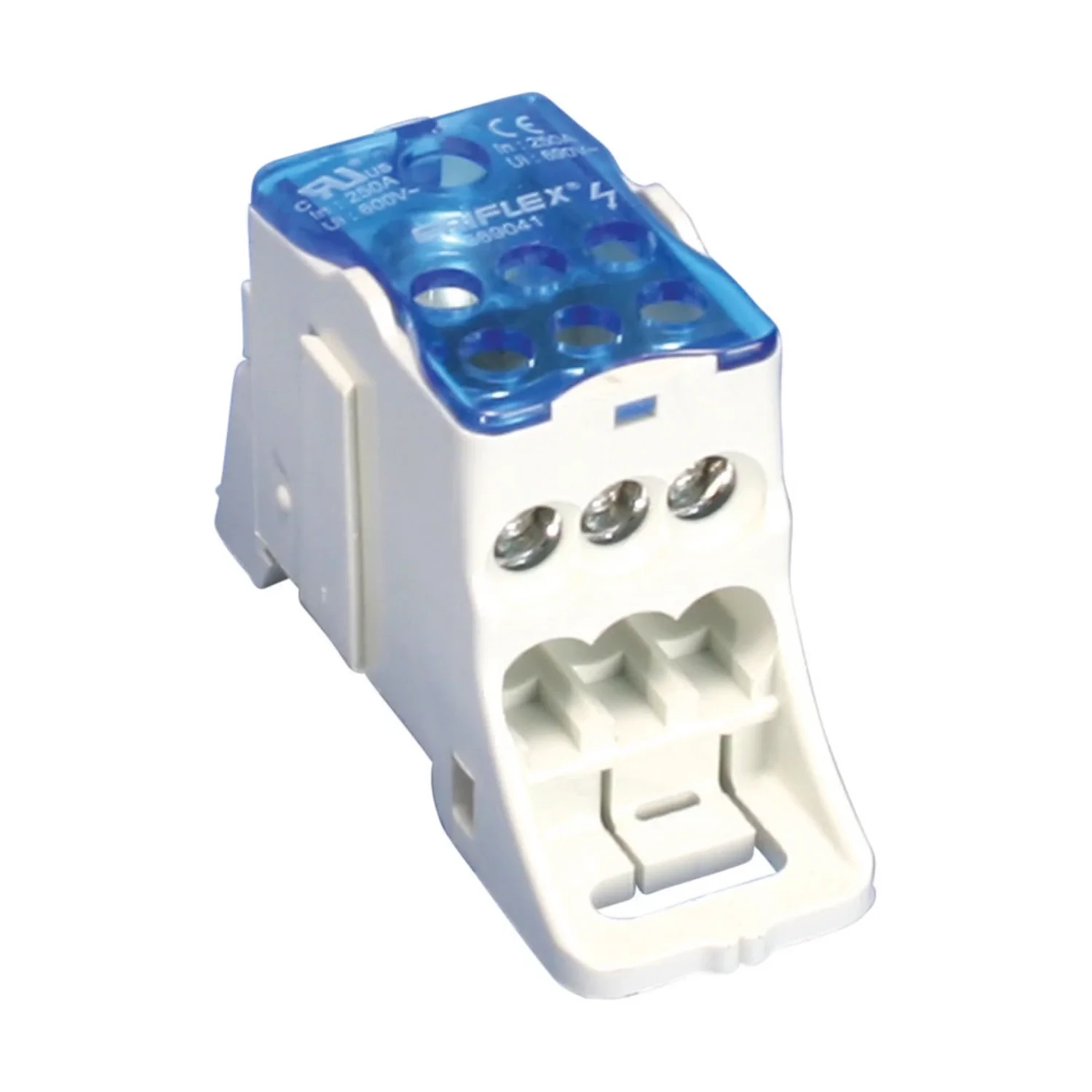

nVent ERIFLEX UDF-250A 1-pole distribution block
569041
UDF-250A 1-pole distribution block, 250 A IEC, flat conductor input and 6 outgoing connections per pole.
- Poles
- 1 pole
- Current
- 250 A
- Connection layout
- Flat feed / 6 out
Product specification
569041
UDF-250A 1-pole distribution block, 250 A IEC, flat conductor input and 6 outgoing connections per pole.
Dimensions & specifications
Connection counts are per pole. Capacities for compact-stranded and ferruled conductors are shown separately. Covers are included; compatible bridges appear with the selected block.
Accessories & related parts
569041 — specifications & documents
UDF-250A 1-pole distribution block, 250 A IEC, flat conductor input and 6 outgoing connections per pole.
| Range | UDF |
|---|---|
| Manufacturer catalogue number | UDF-250A |
| Manufacturer article number | 569041 |
| Poles | 1 |
| Max IEC current | 250 A |
| IEC voltage (Ui) | 1000 V AC / DC |
| Connection method | Screw terminals |
| Incoming connections per pole | 1 |
| Outgoing connections per pole | 6 |
| Mounting | DIN rail or screw fixing to panel |
| Width | 29 mm |
| Height | 79 mm |
| Depth | 46 mm |
| Cover | Included, hinged/removable |
| Pack quantity | 1 |
| Material | Copper; Thermoplastic |
| Finish | Tinned |
| Protection | IP 20 |
| Outgoing — compact stranded | (6) 2.5–16 mm² |
| Outgoing — stranded with ferrule | (6) 2.5–16 mm² |
| Max UL/CSA current | 255 A |
| Incoming flat conductor | Flexibar Advanced 3 × 9 × 0.8 to 6 × 15.5 × 0.8 mm; one flat-conductor input |
