Omron G2R-2-SN
G2R-2-SN-230VAC-S

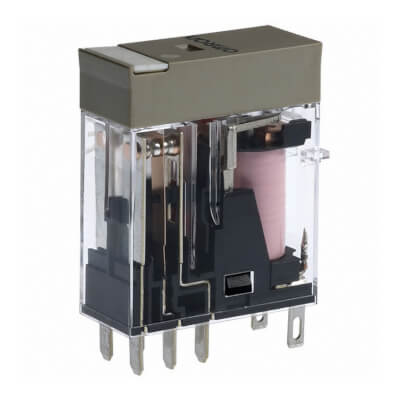

Omron G2R-2-SN, 2 changeover (DPDT), 230 V AC coil, with LED.
- Relay family
- G2R-2 · 2 changeover
- Coil supply
- 230 V AC
- LED indicator
- With LED
Product specification
G2R-2-SN-230VAC-S
Omron G2R-2-SN, 2 changeover (DPDT), 230 V AC coil, with LED.
Dimensions & specifications
110 / 230 V selections are AC; 24 V is DC. MY4 AC coils cover 110–120 / 220–240 V respectively. Bases are supplied separately.
Accessories & related parts
G2R-2-SN-230VAC-S — specifications & documents
Omron G2R-2-SN, 2 changeover (DPDT), 230 V AC coil, with LED.
| Manufacturer | Omron |
|---|---|
| Manufacturer ordering reference | G2R-2-SN 230VAC (S) |
| Contact arrangement | 2 changeover (DPDT) |
| Rated current (resistive) | 5 A |
| Rated coil supply | 230 V AC |
| LED indicator | Yes |
| Pins | 8 |
| Mounting | Plug-in; select matching relay base below |
| Mechanical indicator | Yes |
