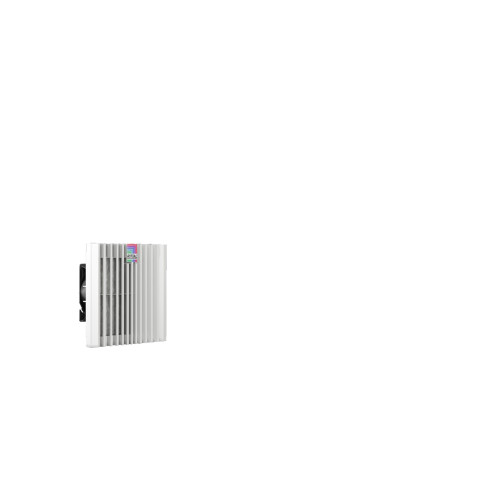

Rittal Blue e+ fan-and-filter unit
3239700
Blue e+ fan-and-filter unit, 110 m³/h at 50 Hz, 230 V AC. With matching outlet filter: 92 m³/h. Pleated filter included.
- Cooling method
- Fan and filter
- Capacity
- 110 m³/h free airflow
- Supply voltage
- 230 V AC
Product specification
3239700
Blue e+ fan-and-filter unit, 110 m³/h at 50 Hz, 230 V AC. With matching outlet filter: 92 m³/h. Pleated filter included.
Dimensions & specifications
Fan airflow is shown at 50 Hz; installed airflow with the outlet filter is listed separately. Replacement filters are selected by the cut-out of the fan or outlet they fit. Use RiTherm for thermal sizing.
Accessories & related parts
3239700 — specifications & documents
Blue e+ fan-and-filter unit, 110 m³/h at 50 Hz, 230 V AC. With matching outlet filter: 92 m³/h. Pleated filter included.
| Cooling method | Filtered ventilation |
|---|---|
| Supply voltage | 230 V AC, single phase, 50/60 Hz |
| Free airflow, 50/60 Hz | 110 / 125 m³/h with pleated filter |
| Airflow with matched outlet, 50/60 Hz | 92 / 104 m³/h with pleated filters |
| Width | 204 mm |
| Height | 204 mm |
| Depth | 105 mm |
| Internal projection | 84 mm |
| Cut-out | 177 × 177 mm |
| Supply includes | Complete fan unit and pleated filter |
| Protection | IP54 as supplied |
| Sizing | Use RiTherm with ambient temperature and equipment losses; free airflow is not installed airflow |
Related parts
- 3239300 Blue e+ outlet filter, 204 × 204 mm, with pleated filter. Cut-out 177 × 177 mm.
- 3110000 Internal enclosure thermostat, changeover contact, adjustable +5 to +60 °C. DIN-rail mounting.
- 3171120 Replacement IP54 pleated filter for fan/outlet sizes 3239; 167 × 167 × 21 mm. Manufacturer pack: 5 filters.
