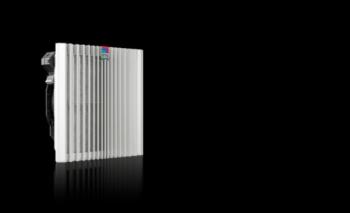

Rittal Blue e+ fan-and-filter unit
3244700
Blue e+ fan-and-filter unit, 867 m³/h at 50 Hz, 230 V AC. With matching outlet filter: 720 m³/h. Pleated filter included.
- Cooling method
- Fan and filter
- Capacity
- 867 m³/h free airflow
- Supply voltage
- 230 V AC
Product specification
3244700
Blue e+ fan-and-filter unit, 867 m³/h at 50 Hz, 230 V AC. With matching outlet filter: 720 m³/h. Pleated filter included.
Dimensions & specifications
Fan airflow is shown at 50 Hz; installed airflow with the outlet filter is listed separately. Replacement filters are selected by the cut-out of the fan or outlet they fit. Use RiTherm for thermal sizing.
Accessories & related parts
3244700 — specifications & documents
Blue e+ fan-and-filter unit, 867 m³/h at 50 Hz, 230 V AC. With matching outlet filter: 720 m³/h. Pleated filter included.
| Cooling method | Filtered ventilation |
|---|---|
| Supply voltage | 230 V AC, single phase, 50/60 Hz |
| Free airflow, 50/60 Hz | 867 / 910 m³/h with pleated filter |
| Airflow with matched outlet, 50/60 Hz | 720 / 745 m³/h with pleated filters |
| Width | 323 mm |
| Height | 323 mm |
| Depth | 156 mm |
| Internal projection | 136 mm |
| Cut-out | 292 × 292 mm |
| Supply includes | Complete fan unit and pleated filter |
| Protection | IP54 as supplied |
| Sizing | Use RiTherm with ambient temperature and equipment losses; free airflow is not installed airflow |
Related parts
- 3243300 Blue e+ outlet filter, 323 × 323 mm, with pleated filter. Cut-out 292 × 292 mm.
- 3110000 Internal enclosure thermostat, changeover contact, adjustable +5 to +60 °C. DIN-rail mounting.
- 3173120 Replacement IP54 pleated filter for fan/outlet sizes 3243 / 3244; 280 × 282 × 21 mm. Manufacturer pack: 5 filters.
