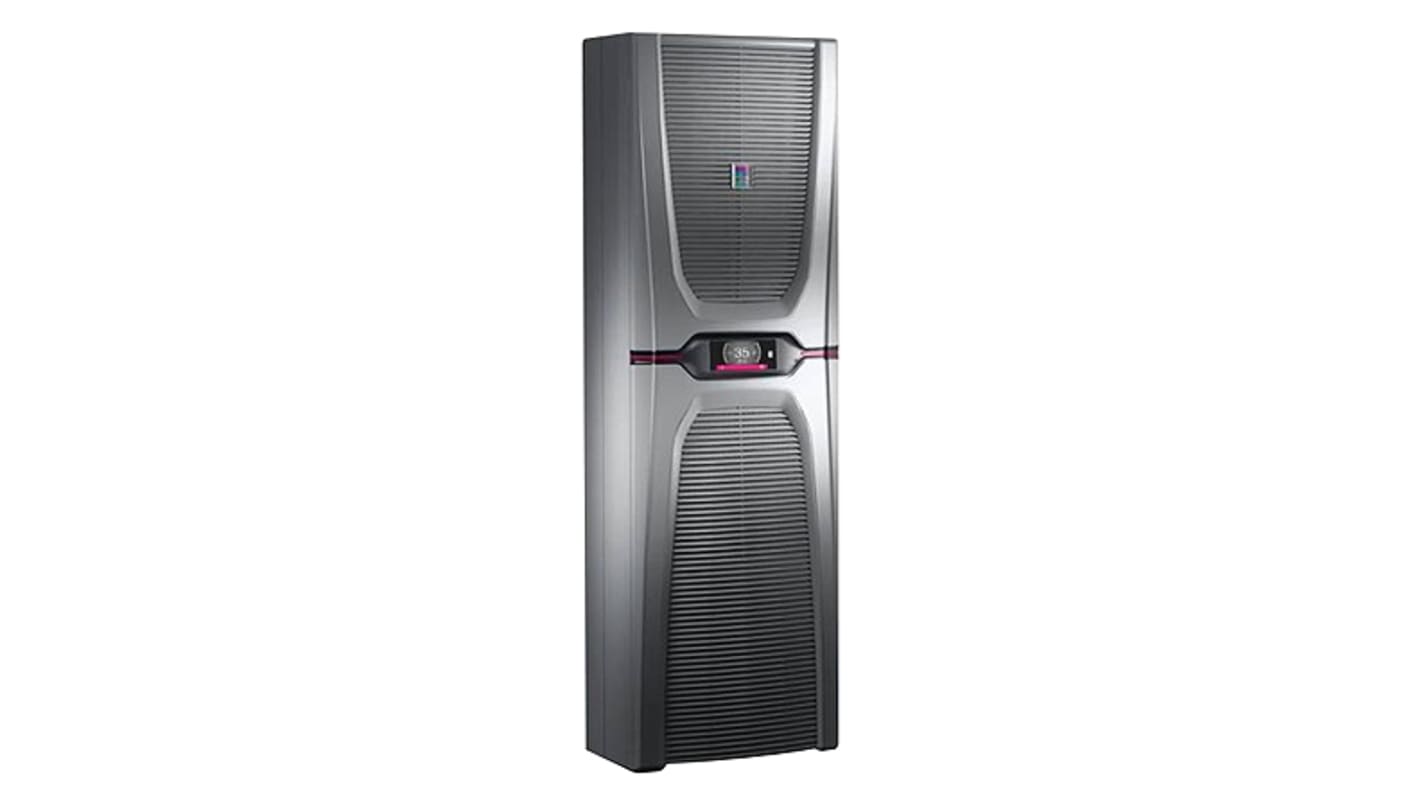

Rittal Blue e+ wall-mounted cooling unit
3486930
Blue e+ wall-mounted cooling unit, 2 kW at L35/L35; 1.29 kW at L35/L50. 110–240 V AC 1-phase / 380–480 V AC 3-phase. R-1234yf.
- Cooling method
- Air conditioning
- Capacity
- 2 kW at L35/L35
- Supply voltage
- 110–240 V AC 1-phase / 380–480 V AC 3-phase
Product specification
3486930
Blue e+ wall-mounted cooling unit, 2 kW at L35/L35; 1.29 kW at L35/L50. 110–240 V AC 1-phase / 380–480 V AC 3-phase. R-1234yf.
Dimensions & specifications
Fan airflow is shown at 50 Hz; installed airflow with the outlet filter is listed separately. Replacement filters are selected by the cut-out of the fan or outlet they fit. Use RiTherm for thermal sizing.
Accessories & related parts
3486930 — specifications & documents
Blue e+ wall-mounted cooling unit, 2 kW at L35/L35; 1.29 kW at L35/L50. 110–240 V AC 1-phase / 380–480 V AC 3-phase. R-1234yf.
| Range | Blue e+ |
|---|---|
| Cooling method | Refrigerated air conditioning |
| Cooling output L35/L35 | 2 kW |
| Cooling output L35/L50 | 1.29 kW |
| Supply voltage | 110–240 V AC 1-phase / 380–480 V AC 3-phase, 50/60 Hz |
| Width | 450 mm |
| Height | 1600 mm |
| Depth | 294 mm |
| Cut-out | 433 × 1579 mm |
| Refrigerant | R-1234yf |
| Temperature setting | +20 to +50 °C |
| Internal-circuit protection | IP55 |
| Supply includes | Assembly parts, wired plug-in connection, integral condensate evaporation |
| Sizing | Use RiTherm for actual ambient, heat losses, enclosure and installation conditions; check mounting instructions and clearances |
