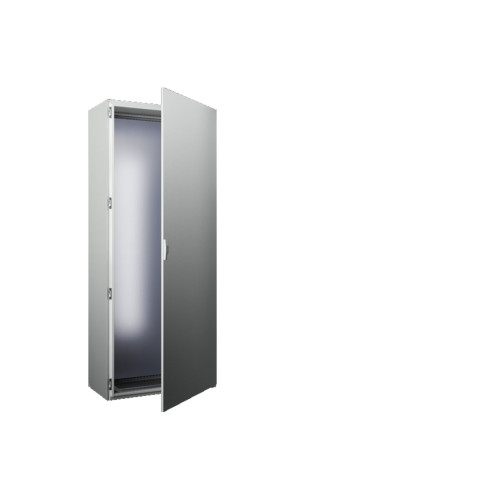

Rittal VX SE floor-standing enclosure
5834680
VX SE sheet-steel enclosure, 800 × 2000 × 600 mm (W × H × D), single door, IP66 / NEMA 4. Mounting plate, sealed base and gland plates included.
- W × H × D
- 800 × 2000 × 600 mm
- Protection
- IP66
- Material
- Sheet steel
Enclosure sizesCompare dimensions and part numbersView size table
Product specification
5834680
VX SE sheet-steel enclosure, 800 × 2000 × 600 mm (W × H × D), single door, IP66 / NEMA 4. Mounting plate, sealed base and gland plates included.
Dimensions & specifications
44 AX steel enclosure sizes, 19 VX SE IP55 sizes and 3 VX SE IP66 versions. Dimensions are catalogue Width × Height × Depth. Mounting plate included. Actual drawing dimensions are listed separately in the specifications.
Accessories & related parts
5834680 — specifications & documents
VX SE sheet-steel enclosure, 800 × 2000 × 600 mm (W × H × D), single door, IP66 / NEMA 4. Mounting plate, sealed base and gland plates included.
| Range | VX SE |
|---|---|
| Mounting | Floor standing |
| Width | 800 mm |
| Height | 2000 mm |
| Depth | 600 mm |
| Mounting plate width | 699 mm |
| Mounting plate height | 1896 mm |
| Mounting plate material | 3 mm zinc-plated sheet steel |
| Doors | 1 |
| Door hinge | Right hand; reversible |
| Material | Sheet steel |
| Colour | RAL 7035 |
| Protection | IP66 |
| NEMA | NEMA 4 |
| Impact rating | IK10 |
| Supply includes | Enclosure with integral roof and sides, single door, detachable rear panel, mounting plate, sealed base with gland plates, 3 mm double-bit lock, two 18 × 39 mm punched rails |
| Plinth | Not included |
| Net weight | 148 kg |
| EAN | 4028177959316 |
| Size convention | Rittal catalogue dimensions: W × H × D |
| Overall height (drawing H1) | 2002 mm |
| Overall depth (drawing T1) | 605 mm |
Related parts
- 8800190 180° hinges for VX SE sheet-steel doors. Pack of 4 with assembly parts. Check the hinge count for the chosen door; the enclosure protection category may be reduced.
- 2514000 A4 portrait wiring-plan pocket, self-adhesive halogen-free polystyrene for the inside of enclosure doors.
- 2500110 LED enclosure system light, 600 lm, 7 W, 100–230 V AC, without socket. Connection and mounting accessories separate.
- 3105350 Enclosure heater without fan, 63–75 W at 10 °C, 110–240 V AC. Temperature or humidity control selected separately.
