Rittal VX plinth front/rear assemblies
8640023

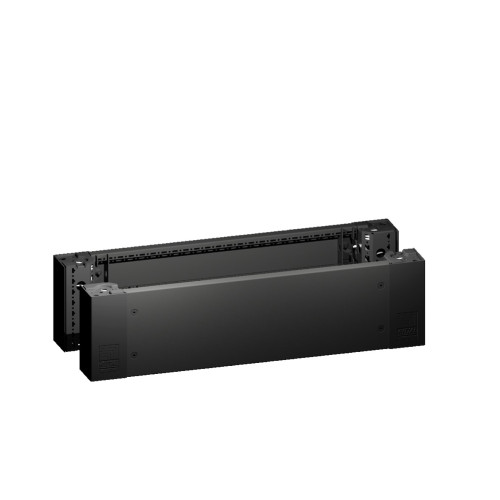

VX plinth front/rear assemblies, 200 mm high, for 800 mm enclosure width. One manufacturer pack completes front and rear, including four corner pieces; side panels separate.
- Application
- VX SE enclosures
- Accessory type
- Plinth front/rear
- Option
- 800 mm wide / 200 mm high
Product specification
8640023
VX plinth front/rear assemblies, 200 mm high, for 800 mm enclosure width. One manufacturer pack completes front and rear, including four corner pieces; side panels separate.
Dimensions & specifications
Accessories are matched to individual parts. A shared manufacturer or frame size alone does not establish compatibility.
Accessories & related parts
8640023 — specifications & documents
VX plinth front/rear assemblies, 200 mm high, for 800 mm enclosure width. One manufacturer pack completes front and rear, including four corner pieces; side panels separate.
| Enclosure width | 800 mm |
|---|---|
| Plinth height | 200 mm |
| Colour | RAL 9005 |
| Manufacturer pack | 2 front/rear assemblies |
| Supply per pack | 4 corner pieces, corner/baying covers, front/rear trim panels and assembly parts |
| Quote quantity basis | 2 assemblies = 1 manufacturer pack for one enclosure |
| Side panels | Separate, matched to depth and height |
Fits these parts
- 5822600 VX SE sheet-steel enclosure, 800 × 1800 × 300 mm (W × H × D), 1 door(s), IP55. Mounting plate and gland plates included.
- 5831600 VX SE sheet-steel enclosure, 800 × 1800 × 400 mm (W × H × D), 1 door(s), IP55. Mounting plate and gland plates included.
- 5823600 VX SE sheet-steel enclosure, 800 × 2000 × 300 mm (W × H × D), 1 door(s), IP55. Mounting plate and gland plates included.
- 5832600 VX SE sheet-steel enclosure, 800 × 2000 × 400 mm (W × H × D), 1 door(s), IP55. Mounting plate and gland plates included.
- 5833600 VX SE sheet-steel enclosure, 800 × 2000 × 500 mm (W × H × D), 1 door(s), IP55. Mounting plate and gland plates included.
- 5834600 VX SE sheet-steel enclosure, 800 × 2000 × 600 mm (W × H × D), 1 door(s), IP55. Mounting plate and gland plates included.
