Siemens SENTRON 3LD2 switch disconnector
3LD2504-0TK53

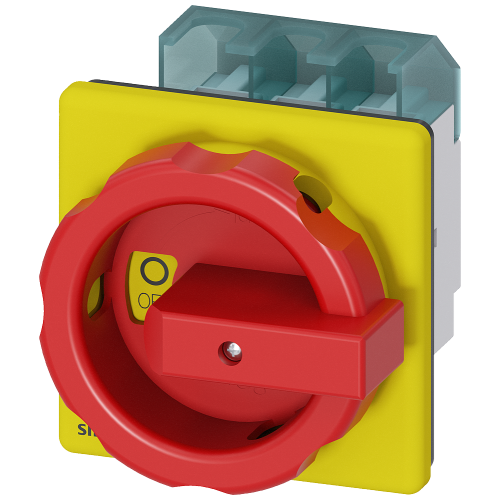

SENTRON 3LD2 switch disconnector, 63 A, 3 pole, front mounting, red/yellow handle. AC-23A 22 kW at 400 V.
- Rated current
- 63 A
- Mounting
- Front mounting
- Handle colour
- Red/yellow
Product specification
3LD2504-0TK53
SENTRON 3LD2 switch disconnector, 63 A, 3 pole, front mounting, red/yellow handle. AC-23A 22 kW at 400 V.
Dimensions & specifications
Siemens 3LD: 3 poles, handle and infeed covers included. ABB OT: 4 poles, separate handle and shaft selected below. AC-21A current is shown; check motor-duty AC-23A ratings for the application.
Accessories & related parts
3LD2504-0TK53 — specifications & documents
SENTRON 3LD2 switch disconnector, 63 A, 3 pole, front mounting, red/yellow handle. AC-23A 22 kW at 400 V.
| Rated current (AC-21A) | 63 A |
|---|---|
| Poles | 3 |
| Mounting | Front mounting |
| Handle colour | Red/yellow |
| Handle fixing | Four-hole |
| Power at 400 V AC-23A | 22 kW |
| Power at 400 V AC-3 | 18.5 kW |
| Supplied | Handle and infeed terminal cover |
Related parts
- 3LD9200-5B SENTRON 3LD2 auxiliary contact block, 1 NO + 1 NC, front mounting.
- 3LD9250-0BA SENTRON 3LD2 switched neutral pole, 63 A, front mounting.
- 3LD9251-0A SENTRON 3LD2 terminal cover, 3 pole, 63 A frame. Catalogue pack of four covers.
- 3LD9284-1B SENTRON 3LD2 replacement rotary handle, black, four-hole mounting.
- 3LD9284-3B SENTRON 3LD2 replacement rotary handle, red/yellow, four-hole mounting.
