Siemens SENTRON 3LD2 switch disconnector
3LD2704-0TK51

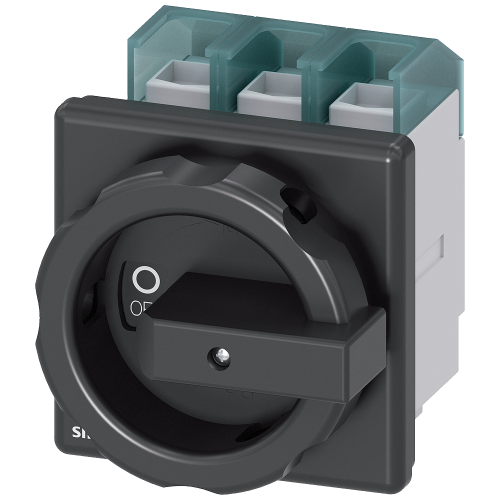

SENTRON 3LD2 switch disconnector, 100 A, 3 pole, front mounting, black handle. AC-23A 37 kW at 400 V.
- Rated current
- 100 A
- Mounting
- Front mounting
- Handle colour
- Black
Product specification
3LD2704-0TK51
SENTRON 3LD2 switch disconnector, 100 A, 3 pole, front mounting, black handle. AC-23A 37 kW at 400 V.
Dimensions & specifications
Siemens 3LD: 3 poles, handle and infeed covers included. ABB OT: 4 poles, separate handle and shaft selected below. AC-21A current is shown; check motor-duty AC-23A ratings for the application.
Accessories & related parts
3LD2704-0TK51 — specifications & documents
SENTRON 3LD2 switch disconnector, 100 A, 3 pole, front mounting, black handle. AC-23A 37 kW at 400 V.
| Rated current (AC-21A) | 100 A |
|---|---|
| Poles | 3 |
| Mounting | Front mounting |
| Handle colour | Black |
| Handle fixing | Four-hole |
| Power at 400 V AC-23A | 37 kW |
| Power at 400 V AC-3 | 30 kW |
| Supplied | Handle and infeed terminal cover |
