Siemens SENTRON 3LD2 switching shaft
3LD9205-0C

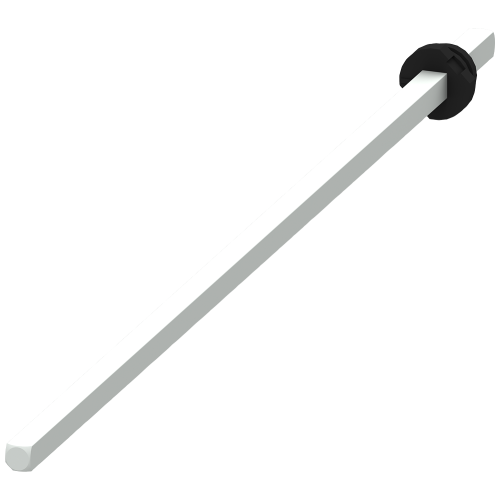

SENTRON 3LD2 switching shaft, 300 mm, 6 × 6 mm, for floor-mounted 16–125 A switches.
- Application
- Switch disconnectors
- Accessory type
- Shafts
- Option
- 300 mm · 6 × 6 mm
Product specification
3LD9205-0C
SENTRON 3LD2 switching shaft, 300 mm, 6 × 6 mm, for floor-mounted 16–125 A switches.
Dimensions & specifications
Accessories are matched to individual parts. A shared manufacturer or frame size alone does not establish compatibility.
Accessories & related parts
3LD9205-0C — specifications & documents
SENTRON 3LD2 switching shaft, 300 mm, 6 × 6 mm, for floor-mounted 16–125 A switches.
| Accessory type | Shafts |
|---|---|
| Length | 300 mm |
| Cross-section | 6 × 6 mm |
| Suitable range | 3LD20/21/22/25/27/28 floor mounting |
Fits these parts
- 3LD2213-0TK51 SENTRON 3LD2 switch disconnector, 32 A, 3 pole, door-coupled, black handle. AC-23A 11.5 kW at 400 V.
- 3LD2213-0TK53 SENTRON 3LD2 switch disconnector, 32 A, 3 pole, door-coupled, red/yellow handle. AC-23A 11.5 kW at 400 V.
- 3LD2514-0TK51 SENTRON 3LD2 switch disconnector, 63 A, 3 pole, door-coupled, black handle. AC-23A 22 kW at 400 V.
- 3LD2514-0TK53 SENTRON 3LD2 switch disconnector, 63 A, 3 pole, door-coupled, red/yellow handle. AC-23A 22 kW at 400 V.
- 3LD2714-0TK51 SENTRON 3LD2 switch disconnector, 100 A, 3 pole, door-coupled, black handle. AC-23A 37 kW at 400 V.
- 3LD2714-0TK53 SENTRON 3LD2 switch disconnector, 100 A, 3 pole, door-coupled, red/yellow handle. AC-23A 37 kW at 400 V.
- 3LD2814-0TK51 SENTRON 3LD2 switch disconnector, 125 A, 3 pole, door-coupled, black handle. AC-23A 45 kW at 400 V.
- 3LD2814-0TK53 SENTRON 3LD2 switch disconnector, 125 A, 3 pole, door-coupled, red/yellow handle. AC-23A 45 kW at 400 V.
