Siemens SENTRON 3LD2 replacement rotary handle
3LD9224-3B

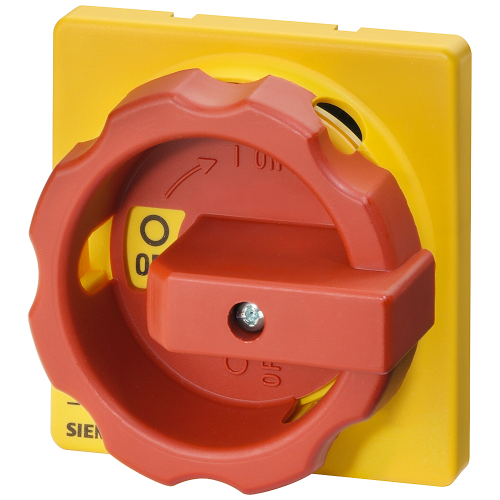

SENTRON 3LD2 replacement rotary handle, red/yellow, four-hole mounting.
- Application
- Switch disconnectors
- Accessory type
- Handles
- Option
- 16/25/32 A · Red/yellow
Product specification
3LD9224-3B
SENTRON 3LD2 replacement rotary handle, red/yellow, four-hole mounting.
Dimensions & specifications
Accessories are matched to individual parts. A shared manufacturer or frame size alone does not establish compatibility.
Accessories & related parts
3LD9224-3B — specifications & documents
SENTRON 3LD2 replacement rotary handle, red/yellow, four-hole mounting.
| Accessory type | Handles |
|---|---|
| Suitable current frame | 16/25/32 A |
| Handle colour | Red/yellow |
| Mounting | Four-hole |
| Use | Replacement handle; basic switches already include a handle |
Fits these parts
- 3LD2003-0TK51 SENTRON 3LD2 switch disconnector, 16 A, 3 pole, front mounting, black handle. AC-23A 7.5 kW at 400 V.
- 3LD2003-0TK53 SENTRON 3LD2 switch disconnector, 16 A, 3 pole, front mounting, red/yellow handle. AC-23A 7.5 kW at 400 V.
- 3LD2103-0TK51 SENTRON 3LD2 switch disconnector, 25 A, 3 pole, front mounting, black handle. AC-23A 9.5 kW at 400 V.
- 3LD2103-0TK53 SENTRON 3LD2 switch disconnector, 25 A, 3 pole, front mounting, red/yellow handle. AC-23A 9.5 kW at 400 V.
- 3LD2203-0TK51 SENTRON 3LD2 switch disconnector, 32 A, 3 pole, front mounting, black handle. AC-23A 11.5 kW at 400 V.
- 3LD2203-0TK53 SENTRON 3LD2 switch disconnector, 32 A, 3 pole, front mounting, red/yellow handle. AC-23A 11.5 kW at 400 V.
- 3LD2213-0TK51 SENTRON 3LD2 switch disconnector, 32 A, 3 pole, door-coupled, black handle. AC-23A 11.5 kW at 400 V.
- 3LD2213-0TK53 SENTRON 3LD2 switch disconnector, 32 A, 3 pole, door-coupled, red/yellow handle. AC-23A 11.5 kW at 400 V.
