Siemens SIRIUS S00 power contactor
3RT2017-1AB01

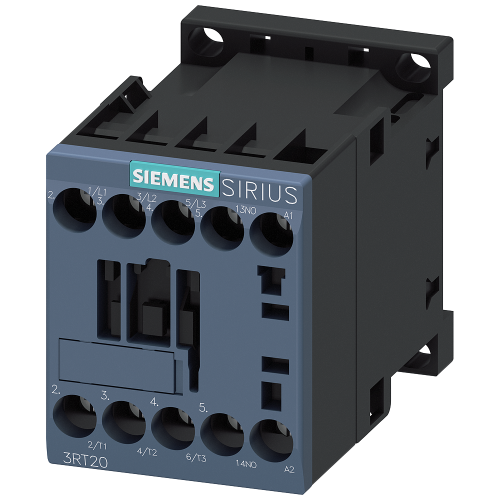

SIRIUS S00 power contactor, 5.5 kW at 400 V, 12 A AC-3 / AC-3e, 3 pole. 24 V AC, 50/60 Hz coil, 1 NO, screw terminals.
- Motor rating
- 5.5 kW
- Coil
- 24 V AC
Product specification
3RT2017-1AB01
SIRIUS S00 power contactor, 5.5 kW at 400 V, 12 A AC-3 / AC-3e, 3 pole. 24 V AC, 50/60 Hz coil, 1 NO, screw terminals.
Dimensions & specifications
Motor ratings shown are for 400 V AC-3 / AC-3e. Select against the motor nameplate current; coil supply is a separate choice.
Accessories & related parts
3RT2017-1AB01 — specifications & documents
SIRIUS S00 power contactor, 5.5 kW at 400 V, 12 A AC-3 / AC-3e, 3 pole. 24 V AC, 50/60 Hz coil, 1 NO, screw terminals.
| Motor rating at 400 V | 5.5 kW |
|---|---|
| Rated current (AC-3 / AC-3e) | 12 A |
| Coil voltage | 24 V AC, 50/60 Hz |
| Poles | 3 |
| Supplied auxiliary contacts | 1 NO |
| Size | S00 |
| Connection | Screw terminals |
| Coil suppression | Optional matched suppressor |
| Manufacturer | Siemens |
Related parts
- 3RH2911-1HA11 SIRIUS front-mounted auxiliary contact block, 1 NO + 1 NC, screw terminals. For compatible 3RT2 contactors.
- 3RH2911-1HA22 SIRIUS front-mounted auxiliary contact block, 2 NO + 2 NC, screw terminals. For compatible 3RT2 contactors.
- 3RT2916-1BB00 SIRIUS varistor surge suppressor, 24–48 V AC / 24–70 V DC, for 3RT2.1 contactors and 3RH2 contactor relays, size S00.
- 3RH2911-1HA01 SIRIUS front-mounted auxiliary contact block, 1 NC, screw terminals. For compatible 3RT2 contactors.
- 3RH2911-1HA02 SIRIUS front-mounted auxiliary contact block, 2 NC, screw terminals. For compatible 3RT2 contactors.
- 3RH2911-1HA10 SIRIUS front-mounted auxiliary contact block, 1 NO, screw terminals. For compatible 3RT2 contactors.
- 3RH2911-1HA20 SIRIUS front-mounted auxiliary contact block, 2 NO, screw terminals. For compatible 3RT2 contactors.
- 3RH2911-1HA13 SIRIUS front-mounted auxiliary contact block, 1 NO + 3 NC, screw terminals. For compatible 3RT2 contactors.
- 3RH2911-1HA31 SIRIUS front-mounted auxiliary contact block, 3 NO + 1 NC, screw terminals. For compatible 3RT2 contactors.
- 3RH2911-1DA02 SIRIUS side-mounted auxiliary contact block, 2 NC, screw terminals. For compatible S00 motor contactors.
- 3RH2911-1DA11 SIRIUS side-mounted auxiliary contact block, 1 NO + 1 NC, screw terminals. For compatible S00 motor contactors.
- 3RH2911-1DA20 SIRIUS side-mounted auxiliary contact block, 2 NO, screw terminals. For compatible S00 motor contactors.
- 3RU2116-0AB0 SIRIUS 3RU2 thermal overload relay, 0.11–0.16 A, size S00, CLASS 10, screw terminals. Direct mounting to matching 3RT201 contactor; separate mounting support available.
- 3RU2116-0BB0 SIRIUS 3RU2 thermal overload relay, 0.14–0.2 A, size S00, CLASS 10, screw terminals. Direct mounting to matching 3RT201 contactor; separate mounting support available.
- 3RU2116-0CB0 SIRIUS 3RU2 thermal overload relay, 0.18–0.25 A, size S00, CLASS 10, screw terminals. Direct mounting to matching 3RT201 contactor; separate mounting support available.
- 3RU2116-0DB0 SIRIUS 3RU2 thermal overload relay, 0.22–0.32 A, size S00, CLASS 10, screw terminals. Direct mounting to matching 3RT201 contactor; separate mounting support available.
- 3RU2116-0EB0 SIRIUS 3RU2 thermal overload relay, 0.28–0.4 A, size S00, CLASS 10, screw terminals. Direct mounting to matching 3RT201 contactor; separate mounting support available.
- 3RU2116-0FB0 SIRIUS 3RU2 thermal overload relay, 0.35–0.5 A, size S00, CLASS 10, screw terminals. Direct mounting to matching 3RT201 contactor; separate mounting support available.
- 3RU2116-0GB0 SIRIUS 3RU2 thermal overload relay, 0.45–0.63 A, size S00, CLASS 10, screw terminals. Direct mounting to matching 3RT201 contactor; separate mounting support available.
- 3RU2116-0HB0 SIRIUS 3RU2 thermal overload relay, 0.55–0.8 A, size S00, CLASS 10, screw terminals. Direct mounting to matching 3RT201 contactor; separate mounting support available.
- 3RU2116-0JB0 SIRIUS 3RU2 thermal overload relay, 0.7–1 A, size S00, CLASS 10, screw terminals. Direct mounting to matching 3RT201 contactor; separate mounting support available.
- 3RU2116-0KB0 SIRIUS 3RU2 thermal overload relay, 0.9–1.25 A, size S00, CLASS 10, screw terminals. Direct mounting to matching 3RT201 contactor; separate mounting support available.
- 3RU2116-1AB0 SIRIUS 3RU2 thermal overload relay, 1.1–1.6 A, size S00, CLASS 10, screw terminals. Direct mounting to matching 3RT201 contactor; separate mounting support available.
- 3RU2116-1BB0 SIRIUS 3RU2 thermal overload relay, 1.4–2 A, size S00, CLASS 10, screw terminals. Direct mounting to matching 3RT201 contactor; separate mounting support available.
- 3RU2116-1CB0 SIRIUS 3RU2 thermal overload relay, 1.8–2.5 A, size S00, CLASS 10, screw terminals. Direct mounting to matching 3RT201 contactor; separate mounting support available.
- 3RU2116-1DB0 SIRIUS 3RU2 thermal overload relay, 2.2–3.2 A, size S00, CLASS 10, screw terminals. Direct mounting to matching 3RT201 contactor; separate mounting support available.
- 3RU2116-1EB0 SIRIUS 3RU2 thermal overload relay, 2.8–4 A, size S00, CLASS 10, screw terminals. Direct mounting to matching 3RT201 contactor; separate mounting support available.
- 3RU2116-1FB0 SIRIUS 3RU2 thermal overload relay, 3.5–5 A, size S00, CLASS 10, screw terminals. Direct mounting to matching 3RT201 contactor; separate mounting support available.
- 3RU2116-1GB0 SIRIUS 3RU2 thermal overload relay, 4.5–6.3 A, size S00, CLASS 10, screw terminals. Direct mounting to matching 3RT201 contactor; separate mounting support available.
- 3RU2116-1HB0 SIRIUS 3RU2 thermal overload relay, 5.5–8 A, size S00, CLASS 10, screw terminals. Direct mounting to matching 3RT201 contactor; separate mounting support available.
- 3RU2116-1JB0 SIRIUS 3RU2 thermal overload relay, 7–10 A, size S00, CLASS 10, screw terminals. Direct mounting to matching 3RT201 contactor; separate mounting support available.
- 3RU2116-1KB0 SIRIUS 3RU2 thermal overload relay, 9–12.5 A, size S00, CLASS 10, screw terminals. Direct mounting to matching 3RT201 contactor; separate mounting support available.
- 3RU2116-4AB0 SIRIUS 3RU2 thermal overload relay, 11–16 A, size S00, CLASS 10, screw terminals. Direct mounting to matching 3RT201 contactor; separate mounting support available.
