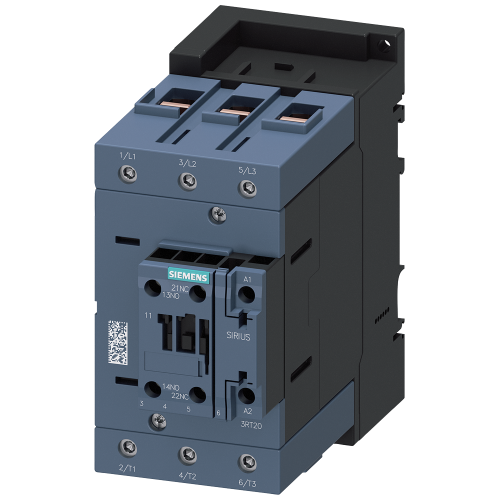

Siemens SIRIUS S3 power contactor
3RT2046-1AC20
SIRIUS S3 power contactor, 45 kW at 400 V, 95 A AC-3 / AC-3e, 3 pole. 24 V AC, 50/60 Hz coil, 1 NO + 1 NC, screw terminals.
- Motor rating
- 45 kW
- Coil
- 24 V AC
Product specification
3RT2046-1AC20
SIRIUS S3 power contactor, 45 kW at 400 V, 95 A AC-3 / AC-3e, 3 pole. 24 V AC, 50/60 Hz coil, 1 NO + 1 NC, screw terminals.
Dimensions & specifications
Motor ratings shown are for 400 V AC-3 / AC-3e. Select against the motor nameplate current; coil supply is a separate choice.
Accessories & related parts
3RT2046-1AC20 — specifications & documents
SIRIUS S3 power contactor, 45 kW at 400 V, 95 A AC-3 / AC-3e, 3 pole. 24 V AC, 50/60 Hz coil, 1 NO + 1 NC, screw terminals.
| Motor rating at 400 V | 45 kW |
|---|---|
| Rated current (AC-3 / AC-3e) | 95 A |
| Coil voltage | 24 V AC, 50/60 Hz |
| Poles | 3 |
| Supplied auxiliary contacts | 1 NO + 1 NC |
| Size | S3 |
| Connection | Screw terminals |
| Coil suppression | Optional matched suppressor |
| Manufacturer | Siemens |
Related parts
- 3RH2911-1HA11 SIRIUS front-mounted auxiliary contact block, 1 NO + 1 NC, screw terminals. For compatible 3RT2 contactors.
- 3RH2911-1HA22 SIRIUS front-mounted auxiliary contact block, 2 NO + 2 NC, screw terminals. For compatible 3RT2 contactors.
- 3RT2936-1BB00 SIRIUS varistor surge suppressor for size S2 / S3, 24–48 V AC / 24–70 V DC.
- 3RH2911-1HA01 SIRIUS front-mounted auxiliary contact block, 1 NC, screw terminals. For compatible 3RT2 contactors.
- 3RH2911-1HA02 SIRIUS front-mounted auxiliary contact block, 2 NC, screw terminals. For compatible 3RT2 contactors.
- 3RH2911-1HA10 SIRIUS front-mounted auxiliary contact block, 1 NO, screw terminals. For compatible 3RT2 contactors.
- 3RH2911-1HA20 SIRIUS front-mounted auxiliary contact block, 2 NO, screw terminals. For compatible 3RT2 contactors.
- 3RH2911-1HA13 SIRIUS front-mounted auxiliary contact block, 1 NO + 3 NC, screw terminals. For compatible 3RT2 contactors.
- 3RH2911-1HA31 SIRIUS front-mounted auxiliary contact block, 3 NO + 1 NC, screw terminals. For compatible 3RT2 contactors.
- 3RT2946-4EA2 SIRIUS terminal cover for S3 3-pole contactors with screw/box terminals. Two covers required per contactor.
- 3RU2146-4FB0 SIRIUS 3RU2 thermal overload relay, 28–40 A, size S3, CLASS 10, screw terminals. Direct mounting to matching 3RT204 contactor; separate mounting support available.
- 3RU2146-4HB0 SIRIUS 3RU2 thermal overload relay, 36–50 A, size S3, CLASS 10, screw terminals. Direct mounting to matching 3RT204 contactor; separate mounting support available.
- 3RU2146-4JB0 SIRIUS 3RU2 thermal overload relay, 45–63 A, size S3, CLASS 10, screw terminals. Direct mounting to matching 3RT204 contactor; separate mounting support available.
- 3RU2146-4KB0 SIRIUS 3RU2 thermal overload relay, 57–75 A, size S3, CLASS 10, screw terminals. Direct mounting to matching 3RT204 contactor; separate mounting support available.
- 3RU2146-4LB0 SIRIUS 3RU2 thermal overload relay, 70–90 A, size S3, CLASS 10, screw terminals. Direct mounting to matching 3RT204 contactor; separate mounting support available.
- 3RU2146-4MB0 SIRIUS 3RU2 thermal overload relay, 80–100 A, size S3, CLASS 10, screw terminals. Direct mounting to matching 3RT204 contactor; separate mounting support available.
