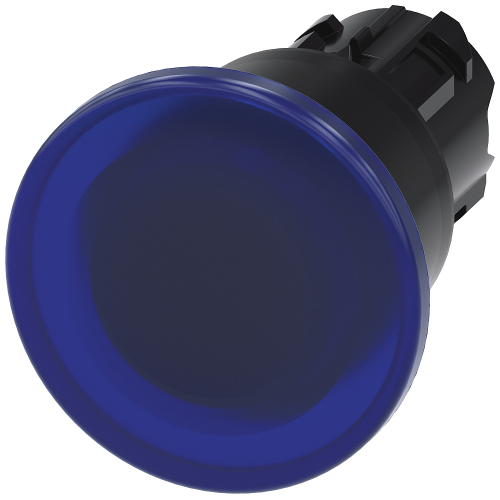

Siemens SIRIUS ACT 22 mm black plastic illuminated mushroom buttons: blue
3SU1001-1BA50-0AA0
SIRIUS ACT 22 mm black plastic illuminated mushroom buttons: blue, latching · pull to release · 40 mm, unmarked. Operator only.
- Product type
- Illuminated mushroom buttons
- Finish
- Black plastic
- Colour
- Blue
Product specification
3SU1001-1BA50-0AA0
SIRIUS ACT 22 mm black plastic illuminated mushroom buttons: blue, latching · pull to release · 40 mm, unmarked. Operator only.
Dimensions & specifications
Operator heads are supplied separately. Select a universal holder, contacts and a standard LED where required. Empty control stations are available in 1, 2, 3, 4 and 6 ways.
Accessories & related parts
3SU1001-1BA50-0AA0 — specifications & documents
SIRIUS ACT 22 mm black plastic illuminated mushroom buttons: blue, latching · pull to release · 40 mm, unmarked. Operator only.
| Product type | Illuminated mushroom buttons |
|---|---|
| Finish | Black plastic |
| Colour | Blue |
| Operation | Latching · pull to release · 40 mm |
| Option | Unmarked |
| Mounting diameter | 22 mm |
| Supplied assembly | Operator only; holder, contacts and LED modules selected separately |
| Head diameter | 40 mm |
| Panel cut-out | 22.3 mm (+0.4 mm) |
| Panel thickness | 1–6 mm |
| Assembly guidance | Select a holder and contact modules. LED occupies centre holder position. Contact position and circuit function must follow the Siemens mounting instructions. |
| Module capacity | Three holder positions in one layer. Centre reserved for LED; two side contact positions. |
Related parts
- 3SU1550-0AA10-0AA0 SIRIUS ACT universal holder, three module positions. For plastic and metal operators.
- 3SU1400-1AA10-1BA0 SIRIUS ACT front-mounted contact module, 1 NO, screw terminals.
- 3SU1400-1AA10-1CA0 SIRIUS ACT front-mounted contact module, 1 NC, screw terminals.
- 3SU1400-1AA10-1DA0 SIRIUS ACT front-mounted contact module, 2 NO, screw terminals.
- 3SU1400-1AA10-1EA0 SIRIUS ACT front-mounted contact module, 2 NC, screw terminals.
- 3SU1400-1AA10-1FA0 SIRIUS ACT front-mounted contact module, 1 NO + 1 NC, screw terminals.
- 3SU1400-1AA10-3BA0 SIRIUS ACT front-mounted contact module, 1 NO, spring-loaded terminals.
- 3SU1400-1AA10-3CA0 SIRIUS ACT front-mounted contact module, 1 NC, spring-loaded terminals.
- 3SU1400-1AA10-3DA0 SIRIUS ACT front-mounted contact module, 2 NO, spring-loaded terminals.
- 3SU1400-1AA10-3EA0 SIRIUS ACT front-mounted contact module, 2 NC, spring-loaded terminals.
- 3SU1400-1AA10-3FA0 SIRIUS ACT front-mounted contact module, 1 NO + 1 NC, spring-loaded terminals.
- 3SU1401-1BB50-1AA0 SIRIUS ACT front-mounted blue LED module, 24 V AC/DC, screw terminals.
- 3SU1401-1BC50-1AA0 SIRIUS ACT front-mounted blue LED module, 110 V AC, screw terminals.
- 3SU1401-1BF50-1AA0 SIRIUS ACT front-mounted blue LED module, 230 V AC, screw terminals.
- 3SU1401-1BG50-1AA0 SIRIUS ACT front-mounted blue LED module, 6–24 V AC/DC, screw terminals.
- 3SU1401-1BH50-1AA0 SIRIUS ACT front-mounted blue LED module, 24–240 V AC/DC, screw terminals.
- 3SU1401-1BB50-3AA0 SIRIUS ACT front-mounted blue LED module, 24 V AC/DC, spring-loaded terminals.
- 3SU1401-1BC50-3AA0 SIRIUS ACT front-mounted blue LED module, 110 V AC, spring-loaded terminals.
- 3SU1401-1BF50-3AA0 SIRIUS ACT front-mounted blue LED module, 230 V AC, spring-loaded terminals.
- 3SU1401-1BG50-3AA0 SIRIUS ACT front-mounted blue LED module, 6–24 V AC/DC, spring-loaded terminals.
- 3SU1401-1BH50-3AA0 SIRIUS ACT front-mounted blue LED module, 24–240 V AC/DC, spring-loaded terminals.
- 3SU1900-0DE70-0AA0 Clear silicone protective cap for 40 mm mushroom pushbuttons.
- 3SU1900-0EG70-0AA0 Clear silicone-free protective cap for 40 mm mushroom pushbuttons.
- 3SU1950-0DL80-0AA0 Silver metal protective collar for 40 mm mushroom buttons. Cannot be combined with a label holder or single frame.
- 3SU1900-0AG10-0AA0 Black plastic 22 mm label holder for 12.5 × 27 mm self-adhesive plates, rounded shape. Incompatible with protective caps and collars.
- 3SU1900-0AH10-0AA0 Black plastic 22 mm label holder for 17.5 × 27 mm self-adhesive plates, rounded shape. Incompatible with protective caps and collars.
- 3SU1900-0AJ10-0AA0 Black plastic 22 mm label holder for 27 × 27 mm self-adhesive plates, rounded shape. Incompatible with protective caps and collars.
- 3SU1900-0AR10-0AA0 Black plastic 22 mm label holder for 12.5 × 27 mm snap-on plates, rounded shape. Incompatible with protective caps and collars.
- 3SU1900-0AS10-0AA0 Black plastic 22 mm label holder for 17.5 × 27 mm snap-on plates, rounded shape. Incompatible with protective caps and collars.
- 3SU1900-0AT10-0AA0 Black plastic 22 mm label holder for 27 × 27 mm snap-on plates, rounded shape. Incompatible with protective caps and collars.
- 3SU1900-0AN10-0AA0 Black plastic 22 mm label holder for 12.5 × 27 mm self-adhesive plates, square shape. Incompatible with protective caps and collars.
- 3SU1900-0AP10-0AA0 Black plastic 22 mm label holder for 17.5 × 27 mm self-adhesive plates, square shape. Incompatible with protective caps and collars.
- 3SU1900-0AQ10-0AA0 Black plastic 22 mm label holder for 27 × 27 mm self-adhesive plates, square shape. Incompatible with protective caps and collars.
