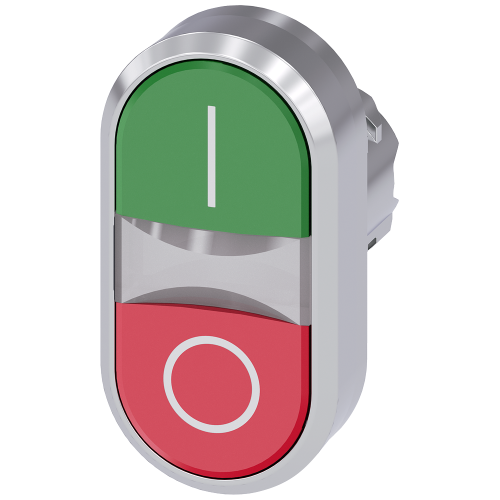

Siemens SIRIUS ACT 22 mm shiny metal twin pushbuttons: green / red
3SU1050-3AB42-0AK0
SIRIUS ACT 22 mm shiny metal twin pushbuttons: green / red, momentary · flush/flush, i / o marking. Operator only.
- Product type
- Twin pushbuttons
- Finish
- Shiny metal
- Colour
- Green / red
Product specification
3SU1050-3AB42-0AK0
SIRIUS ACT 22 mm shiny metal twin pushbuttons: green / red, momentary · flush/flush, i / o marking. Operator only.
Dimensions & specifications
Operator heads are supplied separately. Select a universal holder, contacts and a standard LED where required. Empty control stations are available in 1, 2, 3, 4 and 6 ways.
Accessories & related parts
3SU1050-3AB42-0AK0 — specifications & documents
SIRIUS ACT 22 mm shiny metal twin pushbuttons: green / red, momentary · flush/flush, i / o marking. Operator only.
| Product type | Twin pushbuttons |
|---|---|
| Finish | Shiny metal |
| Colour | Green / red |
| Operation | Momentary · flush/flush |
| Option | I / O marking |
| Mounting diameter | 22 mm |
| Supplied assembly | Operator only; holder, contacts and LED modules selected separately |
| Panel cut-out | 22.3 mm (+0.4 mm) |
| Panel thickness | 1–6 mm |
| Assembly guidance | Select a holder and contact modules. Contact position and circuit function must follow the Siemens mounting instructions. |
| Module capacity | Three holder positions in one layer. Switching position requirements depend on operator. |
Related parts
- 3SU1550-0AA10-0AA0 SIRIUS ACT universal holder, three module positions. For plastic and metal operators.
- 3SU1400-1AA10-1BA0 SIRIUS ACT front-mounted contact module, 1 NO, screw terminals.
- 3SU1400-1AA10-1CA0 SIRIUS ACT front-mounted contact module, 1 NC, screw terminals.
- 3SU1400-1AA10-1DA0 SIRIUS ACT front-mounted contact module, 2 NO, screw terminals.
- 3SU1400-1AA10-1EA0 SIRIUS ACT front-mounted contact module, 2 NC, screw terminals.
- 3SU1400-1AA10-1FA0 SIRIUS ACT front-mounted contact module, 1 NO + 1 NC, screw terminals.
- 3SU1400-1AA10-3BA0 SIRIUS ACT front-mounted contact module, 1 NO, spring-loaded terminals.
- 3SU1400-1AA10-3CA0 SIRIUS ACT front-mounted contact module, 1 NC, spring-loaded terminals.
- 3SU1400-1AA10-3DA0 SIRIUS ACT front-mounted contact module, 2 NO, spring-loaded terminals.
- 3SU1400-1AA10-3EA0 SIRIUS ACT front-mounted contact module, 2 NC, spring-loaded terminals.
- 3SU1400-1AA10-3FA0 SIRIUS ACT front-mounted contact module, 1 NO + 1 NC, spring-loaded terminals.
- 3SU1900-0DG70-0AA0 Clear silicone protective cap for flush twin pushbuttons.
- 3SU1900-0AK10-0AA0 Black plastic 22 mm label holder for 12.5 × 27 mm self-adhesive plates, twin pushbutton shape. Incompatible with protective caps and collars.
