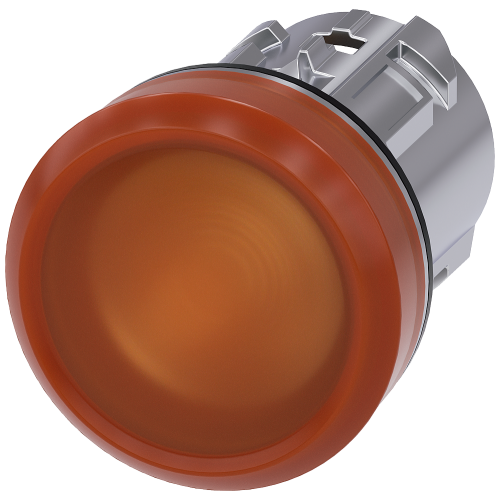

Siemens SIRIUS ACT 22 mm shiny metal indicators: amber
3SU1051-6AA00-0AA0
SIRIUS ACT 22 mm shiny metal indicators: amber, smooth lens, unmarked. Operator only.
- Product type
- Indicators
- Finish
- Shiny metal
- Colour
- Amber
Product specification
3SU1051-6AA00-0AA0
SIRIUS ACT 22 mm shiny metal indicators: amber, smooth lens, unmarked. Operator only.
Dimensions & specifications
Operator heads are supplied separately. Select a universal holder, contacts and a standard LED where required. Empty control stations are available in 1, 2, 3, 4 and 6 ways.
Accessories & related parts
3SU1051-6AA00-0AA0 — specifications & documents
SIRIUS ACT 22 mm shiny metal indicators: amber, smooth lens, unmarked. Operator only.
| Product type | Indicators |
|---|---|
| Finish | Shiny metal |
| Colour | Amber |
| Operation | Smooth lens |
| Option | Unmarked |
| Mounting diameter | 22 mm |
| Supplied assembly | Operator only; holder, contacts and LED modules selected separately |
| Panel cut-out | 22.3 mm (+0.4 mm) |
| Panel thickness | 1–6 mm |
| Module capacity | Three holder positions in one layer. Centre reserved for LED; two side contact positions. |
Related parts
- 3SU1550-0AA10-0AA0 SIRIUS ACT universal holder, three module positions. For plastic and metal operators.
- 3SU1401-1BB00-1AA0 SIRIUS ACT front-mounted amber LED module, 24 V AC/DC, screw terminals.
- 3SU1401-1BC00-1AA0 SIRIUS ACT front-mounted amber LED module, 110 V AC, screw terminals.
- 3SU1401-1BF00-1AA0 SIRIUS ACT front-mounted amber LED module, 230 V AC, screw terminals.
- 3SU1401-1BG00-1AA0 SIRIUS ACT front-mounted amber LED module, 6–24 V AC/DC, screw terminals.
- 3SU1401-1BH00-1AA0 SIRIUS ACT front-mounted amber LED module, 24–240 V AC/DC, screw terminals.
- 3SU1401-1BB00-3AA0 SIRIUS ACT front-mounted amber LED module, 24 V AC/DC, spring-loaded terminals.
- 3SU1401-1BC00-3AA0 SIRIUS ACT front-mounted amber LED module, 110 V AC, spring-loaded terminals.
- 3SU1401-1BF00-3AA0 SIRIUS ACT front-mounted amber LED module, 230 V AC, spring-loaded terminals.
- 3SU1401-1BG00-3AA0 SIRIUS ACT front-mounted amber LED module, 6–24 V AC/DC, spring-loaded terminals.
- 3SU1401-1BH00-3AA0 SIRIUS ACT front-mounted amber LED module, 24–240 V AC/DC, spring-loaded terminals.
- 3SU1900-0AG10-0AA0 Black plastic 22 mm label holder for 12.5 × 27 mm self-adhesive plates, rounded shape. Incompatible with protective caps and collars.
- 3SU1900-0AH10-0AA0 Black plastic 22 mm label holder for 17.5 × 27 mm self-adhesive plates, rounded shape. Incompatible with protective caps and collars.
- 3SU1900-0AJ10-0AA0 Black plastic 22 mm label holder for 27 × 27 mm self-adhesive plates, rounded shape. Incompatible with protective caps and collars.
- 3SU1900-0AR10-0AA0 Black plastic 22 mm label holder for 12.5 × 27 mm snap-on plates, rounded shape. Incompatible with protective caps and collars.
- 3SU1900-0AS10-0AA0 Black plastic 22 mm label holder for 17.5 × 27 mm snap-on plates, rounded shape. Incompatible with protective caps and collars.
- 3SU1900-0AT10-0AA0 Black plastic 22 mm label holder for 27 × 27 mm snap-on plates, rounded shape. Incompatible with protective caps and collars.
- 3SU1900-0AN10-0AA0 Black plastic 22 mm label holder for 12.5 × 27 mm self-adhesive plates, square shape. Incompatible with protective caps and collars.
- 3SU1900-0AP10-0AA0 Black plastic 22 mm label holder for 17.5 × 27 mm self-adhesive plates, square shape. Incompatible with protective caps and collars.
- 3SU1900-0AQ10-0AA0 Black plastic 22 mm label holder for 27 × 27 mm self-adhesive plates, square shape. Incompatible with protective caps and collars.
