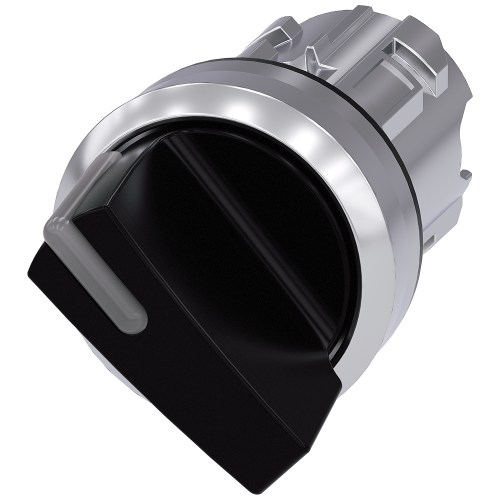

Siemens SIRIUS ACT 22 mm shiny metal selector switches: black
3SU1052-2BC10-0AA0
SIRIUS ACT 22 mm shiny metal selector switches: black, 2 positions · spring return, short handle. Operator only.
- Product type
- Selector switches
- Finish
- Shiny metal
- Colour
- Black
Product specification
3SU1052-2BC10-0AA0
SIRIUS ACT 22 mm shiny metal selector switches: black, 2 positions · spring return, short handle. Operator only.
Dimensions & specifications
Operator heads are supplied separately. Select a universal holder, contacts and a standard LED where required. Empty control stations are available in 1, 2, 3, 4 and 6 ways.
Accessories & related parts
3SU1052-2BC10-0AA0 — specifications & documents
SIRIUS ACT 22 mm shiny metal selector switches: black, 2 positions · spring return, short handle. Operator only.
| Product type | Selector switches |
|---|---|
| Finish | Shiny metal |
| Colour | Black |
| Option | Short handle |
| Mounting diameter | 22 mm |
| Supplied assembly | Operator only; holder, contacts and LED modules selected separately |
| Panel cut-out | 22.3 mm (+0.4 mm) |
| Panel thickness | 1–6 mm |
| Assembly guidance | Select a holder and contact modules. LED occupies centre holder position. Contact position and circuit function must follow the Siemens mounting instructions. |
| Module capacity | Three holder positions in one layer. Centre reserved for LED; two side contact positions. |
| Positions | 2 positions |
| Action | Spring return |
Related parts
- 3SU1550-0AA10-0AA0 SIRIUS ACT universal holder, three module positions. For plastic and metal operators.
- 3SU1400-1AA10-1BA0 SIRIUS ACT front-mounted contact module, 1 NO, screw terminals.
- 3SU1400-1AA10-1CA0 SIRIUS ACT front-mounted contact module, 1 NC, screw terminals.
- 3SU1400-1AA10-1DA0 SIRIUS ACT front-mounted contact module, 2 NO, screw terminals.
- 3SU1400-1AA10-1EA0 SIRIUS ACT front-mounted contact module, 2 NC, screw terminals.
- 3SU1400-1AA10-1FA0 SIRIUS ACT front-mounted contact module, 1 NO + 1 NC, screw terminals.
- 3SU1400-1AA10-3BA0 SIRIUS ACT front-mounted contact module, 1 NO, spring-loaded terminals.
- 3SU1400-1AA10-3CA0 SIRIUS ACT front-mounted contact module, 1 NC, spring-loaded terminals.
- 3SU1400-1AA10-3DA0 SIRIUS ACT front-mounted contact module, 2 NO, spring-loaded terminals.
- 3SU1400-1AA10-3EA0 SIRIUS ACT front-mounted contact module, 2 NC, spring-loaded terminals.
- 3SU1400-1AA10-3FA0 SIRIUS ACT front-mounted contact module, 1 NO + 1 NC, spring-loaded terminals.
- 3SU1401-1BB00-1AA0 SIRIUS ACT front-mounted amber LED module, 24 V AC/DC, screw terminals.
- 3SU1401-1BB20-1AA0 SIRIUS ACT front-mounted red LED module, 24 V AC/DC, screw terminals.
- 3SU1401-1BB30-1AA0 SIRIUS ACT front-mounted yellow LED module, 24 V AC/DC, screw terminals.
- 3SU1401-1BB40-1AA0 SIRIUS ACT front-mounted green LED module, 24 V AC/DC, screw terminals.
- 3SU1401-1BB50-1AA0 SIRIUS ACT front-mounted blue LED module, 24 V AC/DC, screw terminals.
- 3SU1401-1BB60-1AA0 SIRIUS ACT front-mounted white LED module, 24 V AC/DC, screw terminals.
- 3SU1401-1BC00-1AA0 SIRIUS ACT front-mounted amber LED module, 110 V AC, screw terminals.
- 3SU1401-1BC20-1AA0 SIRIUS ACT front-mounted red LED module, 110 V AC, screw terminals.
- 3SU1401-1BC30-1AA0 SIRIUS ACT front-mounted yellow LED module, 110 V AC, screw terminals.
- 3SU1401-1BC40-1AA0 SIRIUS ACT front-mounted green LED module, 110 V AC, screw terminals.
- 3SU1401-1BC50-1AA0 SIRIUS ACT front-mounted blue LED module, 110 V AC, screw terminals.
- 3SU1401-1BC60-1AA0 SIRIUS ACT front-mounted white LED module, 110 V AC, screw terminals.
- 3SU1401-1BF00-1AA0 SIRIUS ACT front-mounted amber LED module, 230 V AC, screw terminals.
- 3SU1401-1BF20-1AA0 SIRIUS ACT front-mounted red LED module, 230 V AC, screw terminals.
- 3SU1401-1BF30-1AA0 SIRIUS ACT front-mounted yellow LED module, 230 V AC, screw terminals.
- 3SU1401-1BF40-1AA0 SIRIUS ACT front-mounted green LED module, 230 V AC, screw terminals.
- 3SU1401-1BF50-1AA0 SIRIUS ACT front-mounted blue LED module, 230 V AC, screw terminals.
- 3SU1401-1BF60-1AA0 SIRIUS ACT front-mounted white LED module, 230 V AC, screw terminals.
- 3SU1401-1BG00-1AA0 SIRIUS ACT front-mounted amber LED module, 6–24 V AC/DC, screw terminals.
- 3SU1401-1BG20-1AA0 SIRIUS ACT front-mounted red LED module, 6–24 V AC/DC, screw terminals.
- 3SU1401-1BG30-1AA0 SIRIUS ACT front-mounted yellow LED module, 6–24 V AC/DC, screw terminals.
- 3SU1401-1BG40-1AA0 SIRIUS ACT front-mounted green LED module, 6–24 V AC/DC, screw terminals.
- 3SU1401-1BG50-1AA0 SIRIUS ACT front-mounted blue LED module, 6–24 V AC/DC, screw terminals.
- 3SU1401-1BG60-1AA0 SIRIUS ACT front-mounted white LED module, 6–24 V AC/DC, screw terminals.
- 3SU1401-1BH00-1AA0 SIRIUS ACT front-mounted amber LED module, 24–240 V AC/DC, screw terminals.
- 3SU1401-1BH20-1AA0 SIRIUS ACT front-mounted red LED module, 24–240 V AC/DC, screw terminals.
- 3SU1401-1BH30-1AA0 SIRIUS ACT front-mounted yellow LED module, 24–240 V AC/DC, screw terminals.
- 3SU1401-1BH40-1AA0 SIRIUS ACT front-mounted green LED module, 24–240 V AC/DC, screw terminals.
- 3SU1401-1BH50-1AA0 SIRIUS ACT front-mounted blue LED module, 24–240 V AC/DC, screw terminals.
- 3SU1401-1BH60-1AA0 SIRIUS ACT front-mounted white LED module, 24–240 V AC/DC, screw terminals.
- 3SU1401-1BB00-3AA0 SIRIUS ACT front-mounted amber LED module, 24 V AC/DC, spring-loaded terminals.
- 3SU1401-1BB20-3AA0 SIRIUS ACT front-mounted red LED module, 24 V AC/DC, spring-loaded terminals.
- 3SU1401-1BB30-3AA0 SIRIUS ACT front-mounted yellow LED module, 24 V AC/DC, spring-loaded terminals.
- 3SU1401-1BB40-3AA0 SIRIUS ACT front-mounted green LED module, 24 V AC/DC, spring-loaded terminals.
- 3SU1401-1BB50-3AA0 SIRIUS ACT front-mounted blue LED module, 24 V AC/DC, spring-loaded terminals.
- 3SU1401-1BB60-3AA0 SIRIUS ACT front-mounted white LED module, 24 V AC/DC, spring-loaded terminals.
- 3SU1401-1BC00-3AA0 SIRIUS ACT front-mounted amber LED module, 110 V AC, spring-loaded terminals.
- 3SU1401-1BC20-3AA0 SIRIUS ACT front-mounted red LED module, 110 V AC, spring-loaded terminals.
- 3SU1401-1BC30-3AA0 SIRIUS ACT front-mounted yellow LED module, 110 V AC, spring-loaded terminals.
- 3SU1401-1BC40-3AA0 SIRIUS ACT front-mounted green LED module, 110 V AC, spring-loaded terminals.
- 3SU1401-1BC50-3AA0 SIRIUS ACT front-mounted blue LED module, 110 V AC, spring-loaded terminals.
- 3SU1401-1BC60-3AA0 SIRIUS ACT front-mounted white LED module, 110 V AC, spring-loaded terminals.
- 3SU1401-1BF00-3AA0 SIRIUS ACT front-mounted amber LED module, 230 V AC, spring-loaded terminals.
- 3SU1401-1BF20-3AA0 SIRIUS ACT front-mounted red LED module, 230 V AC, spring-loaded terminals.
- 3SU1401-1BF30-3AA0 SIRIUS ACT front-mounted yellow LED module, 230 V AC, spring-loaded terminals.
- 3SU1401-1BF40-3AA0 SIRIUS ACT front-mounted green LED module, 230 V AC, spring-loaded terminals.
- 3SU1401-1BF50-3AA0 SIRIUS ACT front-mounted blue LED module, 230 V AC, spring-loaded terminals.
- 3SU1401-1BF60-3AA0 SIRIUS ACT front-mounted white LED module, 230 V AC, spring-loaded terminals.
- 3SU1401-1BG00-3AA0 SIRIUS ACT front-mounted amber LED module, 6–24 V AC/DC, spring-loaded terminals.
- 3SU1401-1BG20-3AA0 SIRIUS ACT front-mounted red LED module, 6–24 V AC/DC, spring-loaded terminals.
- 3SU1401-1BG30-3AA0 SIRIUS ACT front-mounted yellow LED module, 6–24 V AC/DC, spring-loaded terminals.
- 3SU1401-1BG40-3AA0 SIRIUS ACT front-mounted green LED module, 6–24 V AC/DC, spring-loaded terminals.
- 3SU1401-1BG50-3AA0 SIRIUS ACT front-mounted blue LED module, 6–24 V AC/DC, spring-loaded terminals.
- 3SU1401-1BG60-3AA0 SIRIUS ACT front-mounted white LED module, 6–24 V AC/DC, spring-loaded terminals.
- 3SU1401-1BH00-3AA0 SIRIUS ACT front-mounted amber LED module, 24–240 V AC/DC, spring-loaded terminals.
- 3SU1401-1BH20-3AA0 SIRIUS ACT front-mounted red LED module, 24–240 V AC/DC, spring-loaded terminals.
- 3SU1401-1BH30-3AA0 SIRIUS ACT front-mounted yellow LED module, 24–240 V AC/DC, spring-loaded terminals.
- 3SU1401-1BH40-3AA0 SIRIUS ACT front-mounted green LED module, 24–240 V AC/DC, spring-loaded terminals.
- 3SU1401-1BH50-3AA0 SIRIUS ACT front-mounted blue LED module, 24–240 V AC/DC, spring-loaded terminals.
- 3SU1401-1BH60-3AA0 SIRIUS ACT front-mounted white LED module, 24–240 V AC/DC, spring-loaded terminals.
- 3SU1900-0DD70-0AA0 Clear silicone protective cap for short selector switches.
- 3SU1900-0EF70-0AA0 Clear silicone-free protective cap for short selector switches.
- 3SU1900-0DW10-0AA0 Black 360-degree protective collar for 22 mm pushbuttons and short selectors. Cannot be combined with a label holder or single frame.
- 3SU1900-0AG10-0AA0 Black plastic 22 mm label holder for 12.5 × 27 mm self-adhesive plates, rounded shape. Incompatible with protective caps and collars.
- 3SU1900-0AH10-0AA0 Black plastic 22 mm label holder for 17.5 × 27 mm self-adhesive plates, rounded shape. Incompatible with protective caps and collars.
- 3SU1900-0AJ10-0AA0 Black plastic 22 mm label holder for 27 × 27 mm self-adhesive plates, rounded shape. Incompatible with protective caps and collars.
- 3SU1900-0AR10-0AA0 Black plastic 22 mm label holder for 12.5 × 27 mm snap-on plates, rounded shape. Incompatible with protective caps and collars.
- 3SU1900-0AS10-0AA0 Black plastic 22 mm label holder for 17.5 × 27 mm snap-on plates, rounded shape. Incompatible with protective caps and collars.
- 3SU1900-0AT10-0AA0 Black plastic 22 mm label holder for 27 × 27 mm snap-on plates, rounded shape. Incompatible with protective caps and collars.
- 3SU1900-0AN10-0AA0 Black plastic 22 mm label holder for 12.5 × 27 mm self-adhesive plates, square shape. Incompatible with protective caps and collars.
- 3SU1900-0AP10-0AA0 Black plastic 22 mm label holder for 17.5 × 27 mm self-adhesive plates, square shape. Incompatible with protective caps and collars.
- 3SU1900-0AQ10-0AA0 Black plastic 22 mm label holder for 27 × 27 mm self-adhesive plates, square shape. Incompatible with protective caps and collars.
