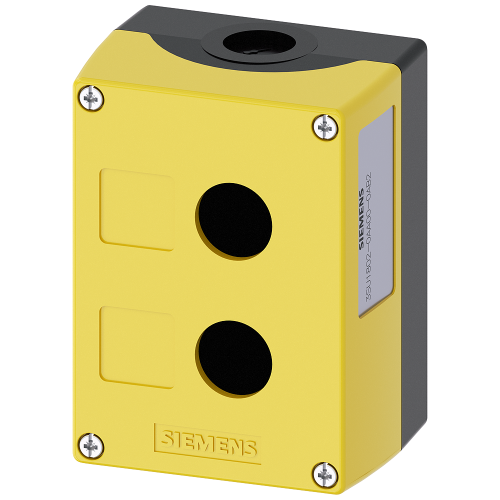

Siemens SIRIUS ACT 2-way empty plastic control station
3SU1802-0AA00-0AB2
SIRIUS ACT 2-way empty plastic control station, yellow cover, with label recess. Operators and modules selected separately.
- Product type
- Control stations
- Finish
- Plastic
- Colour
- Yellow
Product specification
3SU1802-0AA00-0AB2
SIRIUS ACT 2-way empty plastic control station, yellow cover, with label recess. Operators and modules selected separately.
Dimensions & specifications
Operator heads are supplied separately. Select a universal holder, contacts and a standard LED where required. Empty control stations are available in 1, 2, 3, 4 and 6 ways.
Accessories & related parts
3SU1802-0AA00-0AB2 — specifications & documents
SIRIUS ACT 2-way empty plastic control station, yellow cover, with label recess. Operators and modules selected separately.
| Product type | Control stations |
|---|---|
| Finish | Plastic |
| Colour | Yellow |
| Option | With label recess |
| Mounting | Surface mounting |
| Assembly note | Choose base-mounted contacts, or standard single-pole contacts and standard LEDs mounted in the cover with a holder. No stacking or double contact modules in these standard enclosures. Select the complete mounting arrangement for each command point. |
| Ways | 2-way |
Related parts
- 3SU1400-2AA10-1BA0 SIRIUS ACT 1 NO contact module for base mounting in 3SU18 stations, screw terminals.
- 3SU1400-2AA10-1CA0 SIRIUS ACT 1 NC contact module for base mounting in 3SU18 stations, screw terminals.
- 3SU1400-2AA10-3BA0 SIRIUS ACT 1 NO contact module for base mounting in 3SU18 stations, spring-loaded terminals.
- 3SU1400-2AA10-3CA0 SIRIUS ACT 1 NC contact module for base mounting in 3SU18 stations, spring-loaded terminals.
- 3SU1900-0FA10-0AA0 SIRIUS ACT 22 mm black plastic sealing plug for an unused command position. Requires a mounting holder.
- 3SU1550-0AA10-0AA0 SIRIUS ACT universal holder, three module positions. For plastic and metal operators.
- 3SU1400-1AA10-1BA0 SIRIUS ACT front-mounted contact module, 1 NO, screw terminals.
- 3SU1400-1AA10-1CA0 SIRIUS ACT front-mounted contact module, 1 NC, screw terminals.
- 3SU1400-1AA10-3BA0 SIRIUS ACT front-mounted contact module, 1 NO, spring-loaded terminals.
- 3SU1400-1AA10-3CA0 SIRIUS ACT front-mounted contact module, 1 NC, spring-loaded terminals.
- 3SU1401-1BB00-1AA0 SIRIUS ACT front-mounted amber LED module, 24 V AC/DC, screw terminals.
- 3SU1401-1BB20-1AA0 SIRIUS ACT front-mounted red LED module, 24 V AC/DC, screw terminals.
- 3SU1401-1BB30-1AA0 SIRIUS ACT front-mounted yellow LED module, 24 V AC/DC, screw terminals.
- 3SU1401-1BB40-1AA0 SIRIUS ACT front-mounted green LED module, 24 V AC/DC, screw terminals.
- 3SU1401-1BB50-1AA0 SIRIUS ACT front-mounted blue LED module, 24 V AC/DC, screw terminals.
- 3SU1401-1BB60-1AA0 SIRIUS ACT front-mounted white LED module, 24 V AC/DC, screw terminals.
- 3SU1401-1BC00-1AA0 SIRIUS ACT front-mounted amber LED module, 110 V AC, screw terminals.
- 3SU1401-1BC20-1AA0 SIRIUS ACT front-mounted red LED module, 110 V AC, screw terminals.
- 3SU1401-1BC30-1AA0 SIRIUS ACT front-mounted yellow LED module, 110 V AC, screw terminals.
- 3SU1401-1BC40-1AA0 SIRIUS ACT front-mounted green LED module, 110 V AC, screw terminals.
- 3SU1401-1BC50-1AA0 SIRIUS ACT front-mounted blue LED module, 110 V AC, screw terminals.
- 3SU1401-1BC60-1AA0 SIRIUS ACT front-mounted white LED module, 110 V AC, screw terminals.
- 3SU1401-1BF00-1AA0 SIRIUS ACT front-mounted amber LED module, 230 V AC, screw terminals.
- 3SU1401-1BF20-1AA0 SIRIUS ACT front-mounted red LED module, 230 V AC, screw terminals.
- 3SU1401-1BF30-1AA0 SIRIUS ACT front-mounted yellow LED module, 230 V AC, screw terminals.
- 3SU1401-1BF40-1AA0 SIRIUS ACT front-mounted green LED module, 230 V AC, screw terminals.
- 3SU1401-1BF50-1AA0 SIRIUS ACT front-mounted blue LED module, 230 V AC, screw terminals.
- 3SU1401-1BF60-1AA0 SIRIUS ACT front-mounted white LED module, 230 V AC, screw terminals.
- 3SU1401-1BG00-1AA0 SIRIUS ACT front-mounted amber LED module, 6–24 V AC/DC, screw terminals.
- 3SU1401-1BG20-1AA0 SIRIUS ACT front-mounted red LED module, 6–24 V AC/DC, screw terminals.
- 3SU1401-1BG30-1AA0 SIRIUS ACT front-mounted yellow LED module, 6–24 V AC/DC, screw terminals.
- 3SU1401-1BG40-1AA0 SIRIUS ACT front-mounted green LED module, 6–24 V AC/DC, screw terminals.
- 3SU1401-1BG50-1AA0 SIRIUS ACT front-mounted blue LED module, 6–24 V AC/DC, screw terminals.
- 3SU1401-1BG60-1AA0 SIRIUS ACT front-mounted white LED module, 6–24 V AC/DC, screw terminals.
- 3SU1401-1BH00-1AA0 SIRIUS ACT front-mounted amber LED module, 24–240 V AC/DC, screw terminals.
- 3SU1401-1BH20-1AA0 SIRIUS ACT front-mounted red LED module, 24–240 V AC/DC, screw terminals.
- 3SU1401-1BH30-1AA0 SIRIUS ACT front-mounted yellow LED module, 24–240 V AC/DC, screw terminals.
- 3SU1401-1BH40-1AA0 SIRIUS ACT front-mounted green LED module, 24–240 V AC/DC, screw terminals.
- 3SU1401-1BH50-1AA0 SIRIUS ACT front-mounted blue LED module, 24–240 V AC/DC, screw terminals.
- 3SU1401-1BH60-1AA0 SIRIUS ACT front-mounted white LED module, 24–240 V AC/DC, screw terminals.
- 3SU1401-1BB00-3AA0 SIRIUS ACT front-mounted amber LED module, 24 V AC/DC, spring-loaded terminals.
- 3SU1401-1BB20-3AA0 SIRIUS ACT front-mounted red LED module, 24 V AC/DC, spring-loaded terminals.
- 3SU1401-1BB30-3AA0 SIRIUS ACT front-mounted yellow LED module, 24 V AC/DC, spring-loaded terminals.
- 3SU1401-1BB40-3AA0 SIRIUS ACT front-mounted green LED module, 24 V AC/DC, spring-loaded terminals.
- 3SU1401-1BB50-3AA0 SIRIUS ACT front-mounted blue LED module, 24 V AC/DC, spring-loaded terminals.
- 3SU1401-1BB60-3AA0 SIRIUS ACT front-mounted white LED module, 24 V AC/DC, spring-loaded terminals.
- 3SU1401-1BC00-3AA0 SIRIUS ACT front-mounted amber LED module, 110 V AC, spring-loaded terminals.
- 3SU1401-1BC20-3AA0 SIRIUS ACT front-mounted red LED module, 110 V AC, spring-loaded terminals.
- 3SU1401-1BC30-3AA0 SIRIUS ACT front-mounted yellow LED module, 110 V AC, spring-loaded terminals.
- 3SU1401-1BC40-3AA0 SIRIUS ACT front-mounted green LED module, 110 V AC, spring-loaded terminals.
- 3SU1401-1BC50-3AA0 SIRIUS ACT front-mounted blue LED module, 110 V AC, spring-loaded terminals.
- 3SU1401-1BC60-3AA0 SIRIUS ACT front-mounted white LED module, 110 V AC, spring-loaded terminals.
- 3SU1401-1BF00-3AA0 SIRIUS ACT front-mounted amber LED module, 230 V AC, spring-loaded terminals.
- 3SU1401-1BF20-3AA0 SIRIUS ACT front-mounted red LED module, 230 V AC, spring-loaded terminals.
- 3SU1401-1BF30-3AA0 SIRIUS ACT front-mounted yellow LED module, 230 V AC, spring-loaded terminals.
- 3SU1401-1BF40-3AA0 SIRIUS ACT front-mounted green LED module, 230 V AC, spring-loaded terminals.
- 3SU1401-1BF50-3AA0 SIRIUS ACT front-mounted blue LED module, 230 V AC, spring-loaded terminals.
- 3SU1401-1BF60-3AA0 SIRIUS ACT front-mounted white LED module, 230 V AC, spring-loaded terminals.
- 3SU1401-1BG00-3AA0 SIRIUS ACT front-mounted amber LED module, 6–24 V AC/DC, spring-loaded terminals.
- 3SU1401-1BG20-3AA0 SIRIUS ACT front-mounted red LED module, 6–24 V AC/DC, spring-loaded terminals.
- 3SU1401-1BG30-3AA0 SIRIUS ACT front-mounted yellow LED module, 6–24 V AC/DC, spring-loaded terminals.
- 3SU1401-1BG40-3AA0 SIRIUS ACT front-mounted green LED module, 6–24 V AC/DC, spring-loaded terminals.
- 3SU1401-1BG50-3AA0 SIRIUS ACT front-mounted blue LED module, 6–24 V AC/DC, spring-loaded terminals.
- 3SU1401-1BG60-3AA0 SIRIUS ACT front-mounted white LED module, 6–24 V AC/DC, spring-loaded terminals.
- 3SU1401-1BH00-3AA0 SIRIUS ACT front-mounted amber LED module, 24–240 V AC/DC, spring-loaded terminals.
- 3SU1401-1BH20-3AA0 SIRIUS ACT front-mounted red LED module, 24–240 V AC/DC, spring-loaded terminals.
- 3SU1401-1BH30-3AA0 SIRIUS ACT front-mounted yellow LED module, 24–240 V AC/DC, spring-loaded terminals.
- 3SU1401-1BH40-3AA0 SIRIUS ACT front-mounted green LED module, 24–240 V AC/DC, spring-loaded terminals.
- 3SU1401-1BH50-3AA0 SIRIUS ACT front-mounted blue LED module, 24–240 V AC/DC, spring-loaded terminals.
- 3SU1401-1BH60-3AA0 SIRIUS ACT front-mounted white LED module, 24–240 V AC/DC, spring-loaded terminals.
