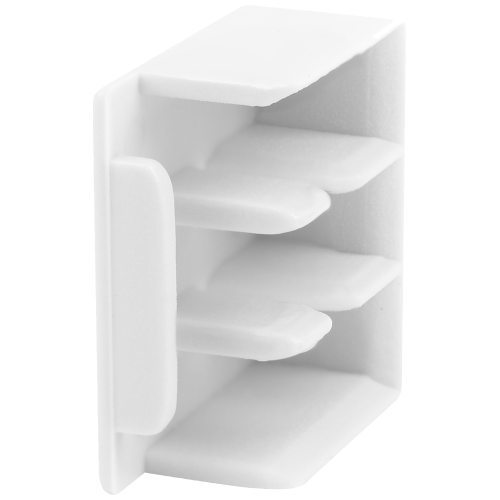

Siemens SENTRON end cap for 2 / 3-phase cuttable 5ST37 pin busbars
5ST3750
SENTRON end cap for 2 / 3-phase cuttable 5ST37 pin busbars.
- Application
- Circuit protection
- Accessory type
- Busbar end cap
- Option
- 2 / 3-phase
Product specification
5ST3750
SENTRON end cap for 2 / 3-phase cuttable 5ST37 pin busbars.
Dimensions & specifications
Accessories are matched to individual parts. A shared manufacturer or frame size alone does not establish compatibility.
Accessories & related parts
5ST3750 — specifications & documents
SENTRON end cap for 2 / 3-phase cuttable 5ST37 pin busbars.
| Accessory type | Busbar end cap |
|---|---|
| Compatible busbar | 5ST37 standard cuttable |
| Busbar phases | 2 / 3 |
| Fitting | Cap each exposed cut end; not for compact or UL-specific busbars |
| Quantity unit | Individual cap; supplier pack10 |
Fits these parts
- 5ST3705 SENTRON 5ST pin busbar, 2-phase, 16 mm², 1016 mm, cuttable, for 2-pole MCBs without side accessory gaps.
- 5ST3707 SENTRON 5ST pin busbar, 2-phase, 16 mm², 1016 mm, cuttable, for 2-pole MCBs with one 9 mm auxiliary/fault module per breaker.
- 5ST3710 SENTRON 5ST pin busbar, 3-phase, 16 mm², 1016 mm, cuttable, for 3-pole MCBs without side accessory gaps.
- 5ST3712 SENTRON 5ST pin busbar, 3-phase, 16 mm², 1016 mm, cuttable, for 3-pole MCBs with one 9 mm auxiliary/fault module per breaker.
- 5ST3714 SENTRON 5ST pin busbar, 3-phase, 16 mm², 1016 mm, cuttable, for 1-pole MCBs with one 9 mm auxiliary/fault module per breaker.
