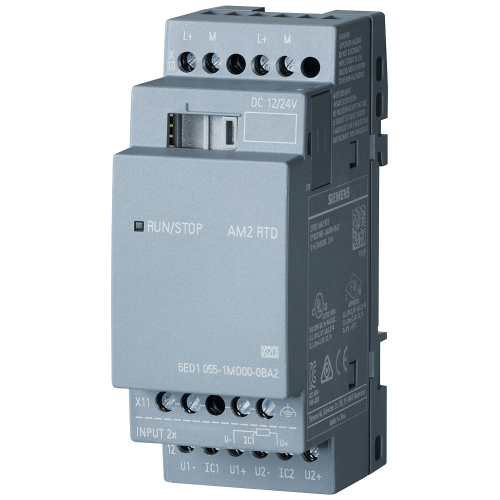

Siemens LOGO! 8 AM2 RTD expansion module
6ED1055-1MD00-0BA2
LOGO! 8 AM2 RTD expansion module, 12/24 V DC. 2 inputs: Pt100 / Pt1000, 2- or 3-wire.
- Application
- Logic controllers
- Accessory type
- Temperature input
- Option
- AM2 RTD · 12/24 V DC
Product specification
6ED1055-1MD00-0BA2
LOGO! 8 AM2 RTD expansion module, 12/24 V DC. 2 inputs: Pt100 / Pt1000, 2- or 3-wire.
Dimensions & specifications
Accessories are matched to individual parts. A shared manufacturer or frame size alone does not establish compatibility.
Accessories & related parts
6ED1055-1MD00-0BA2 — specifications & documents
LOGO! 8 AM2 RTD expansion module, 12/24 V DC. 2 inputs: Pt100 / Pt1000, 2- or 3-wire.
| Accessory type | Temperature input |
|---|---|
| Supply voltage | 12/24 V DC |
| Signal channels | 2 inputs: Pt100 / Pt1000, 2- or 3-wire |
| Module width | 2 modules |
| Generation | LOGO! 8 |
Fits these parts
- 6ED1052-1MD08-0BA2 LOGO! 8.4 12/24RCE logic module, 12/24 V DC, with display, 8 digital, including 4 analogue-capable inputs and 4 relay outputs. Ethernet.
- 6ED1052-2MD08-0BA2 LOGO! 8.4 12/24RCEo logic module, 12/24 V DC, without display, 8 digital, including 4 analogue-capable inputs and 4 relay outputs. Ethernet.
- 6ED1052-1CC08-0BA2 LOGO! 8.4 24CE logic module, 24 V DC, with display, 8 digital, including 4 analogue-capable inputs and 4 transistor outputs. Ethernet.
- 6ED1052-2CC08-0BA2 LOGO! 8.4 24CEo logic module, 24 V DC, without display, 8 digital, including 4 analogue-capable inputs and 4 transistor outputs. Ethernet.
- 6ED1052-1HB08-0BA2 LOGO! 8.4 24RCE logic module, 24 V AC/DC, with display, 8 digital inputs and 4 relay outputs. Ethernet.
- 6ED1052-2HB08-0BA2 LOGO! 8.4 24RCEo logic module, 24 V AC/DC, without display, 8 digital inputs and 4 relay outputs. Ethernet.
- 6ED1052-1FB08-0BA2 LOGO! 8.4 230RCE logic module, 115/230 V AC/DC, with display, 8 digital inputs and 4 relay outputs. Ethernet.
- 6ED1052-2FB08-0BA2 LOGO! 8.4 230RCEo logic module, 115/230 V AC/DC, without display, 8 digital inputs and 4 relay outputs. Ethernet.
