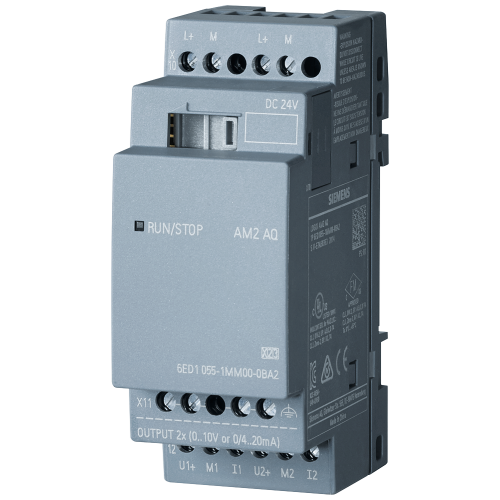

Siemens LOGO! 8 AM2 AQ expansion module
6ED1055-1MM00-0BA2
LOGO! 8 AM2 AQ expansion module, 24 V DC. 2 outputs: 0–10 V or 0/4–20 mA.
- Application
- Logic controllers
- Accessory type
- Analogue output
- Option
- AM2 AQ · 24 V DC
Product specification
6ED1055-1MM00-0BA2
LOGO! 8 AM2 AQ expansion module, 24 V DC. 2 outputs: 0–10 V or 0/4–20 mA.
Dimensions & specifications
Accessories are matched to individual parts. A shared manufacturer or frame size alone does not establish compatibility.
Accessories & related parts
6ED1055-1MM00-0BA2 — specifications & documents
LOGO! 8 AM2 AQ expansion module, 24 V DC. 2 outputs: 0–10 V or 0/4–20 mA.
| Accessory type | Analogue output |
|---|---|
| Supply voltage | 24 V DC |
| Signal channels | 2 outputs: 0–10 V or 0/4–20 mA |
| Module width | 2 modules |
| Generation | LOGO! 8 |
Fits these parts
- 6ED1052-1MD08-0BA2 LOGO! 8.4 12/24RCE logic module, 12/24 V DC, with display, 8 digital, including 4 analogue-capable inputs and 4 relay outputs. Ethernet.
- 6ED1052-2MD08-0BA2 LOGO! 8.4 12/24RCEo logic module, 12/24 V DC, without display, 8 digital, including 4 analogue-capable inputs and 4 relay outputs. Ethernet.
- 6ED1052-1CC08-0BA2 LOGO! 8.4 24CE logic module, 24 V DC, with display, 8 digital, including 4 analogue-capable inputs and 4 transistor outputs. Ethernet.
- 6ED1052-2CC08-0BA2 LOGO! 8.4 24CEo logic module, 24 V DC, without display, 8 digital, including 4 analogue-capable inputs and 4 transistor outputs. Ethernet.
- 6ED1052-1HB08-0BA2 LOGO! 8.4 24RCE logic module, 24 V AC/DC, with display, 8 digital inputs and 4 relay outputs. Ethernet.
- 6ED1052-2HB08-0BA2 LOGO! 8.4 24RCEo logic module, 24 V AC/DC, without display, 8 digital inputs and 4 relay outputs. Ethernet.
- 6ED1052-1FB08-0BA2 LOGO! 8.4 230RCE logic module, 115/230 V AC/DC, with display, 8 digital inputs and 4 relay outputs. Ethernet.
- 6ED1052-2FB08-0BA2 LOGO! 8.4 230RCEo logic module, 115/230 V AC/DC, without display, 8 digital inputs and 4 relay outputs. Ethernet.
