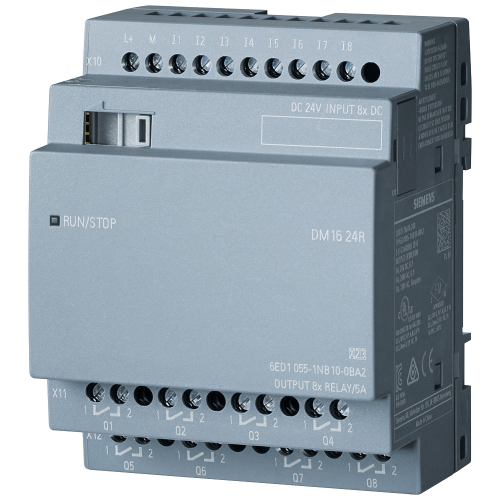

Siemens LOGO! 8 DM16 24R digital expansion module
6ED1055-1NB10-0BA2
LOGO! 8 DM16 24R digital expansion module, 24 V DC, 8 digital inputs and 8 relay outputs.
- Application
- Logic controllers
- Accessory type
- Digital expansion
- Option
- DM16 24R · 24 V DC
Product specification
6ED1055-1NB10-0BA2
LOGO! 8 DM16 24R digital expansion module, 24 V DC, 8 digital inputs and 8 relay outputs.
Dimensions & specifications
Accessories are matched to individual parts. A shared manufacturer or frame size alone does not establish compatibility.
Accessories & related parts
6ED1055-1NB10-0BA2 — specifications & documents
LOGO! 8 DM16 24R digital expansion module, 24 V DC, 8 digital inputs and 8 relay outputs.
| Accessory type | Digital expansion |
|---|---|
| Supply voltage | 24 V DC |
| Inputs | 8 digital |
| Outputs | 8 relay |
| Module width | 4 modules |
| Generation | LOGO! 8 |
Fits these parts
- 6ED1052-1MD08-0BA2 LOGO! 8.4 12/24RCE logic module, 12/24 V DC, with display, 8 digital, including 4 analogue-capable inputs and 4 relay outputs. Ethernet.
- 6ED1052-2MD08-0BA2 LOGO! 8.4 12/24RCEo logic module, 12/24 V DC, without display, 8 digital, including 4 analogue-capable inputs and 4 relay outputs. Ethernet.
- 6ED1052-1CC08-0BA2 LOGO! 8.4 24CE logic module, 24 V DC, with display, 8 digital, including 4 analogue-capable inputs and 4 transistor outputs. Ethernet.
- 6ED1052-2CC08-0BA2 LOGO! 8.4 24CEo logic module, 24 V DC, without display, 8 digital, including 4 analogue-capable inputs and 4 transistor outputs. Ethernet.
- 6ED1052-1HB08-0BA2 LOGO! 8.4 24RCE logic module, 24 V AC/DC, with display, 8 digital inputs and 4 relay outputs. Ethernet.
- 6ED1052-2HB08-0BA2 LOGO! 8.4 24RCEo logic module, 24 V AC/DC, without display, 8 digital inputs and 4 relay outputs. Ethernet.
