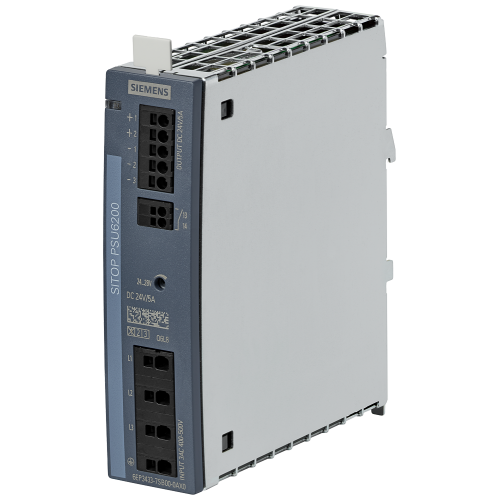

Siemens SITOP PSU6200
6EP3433-7SB00-0AX0
SITOP PSU6200, three phase 400–500 V AC input, 24 V DC output at 5 A.
- Input phase
- Three phase
- Output current
- 5 A
- Power supply type
- SITOP PSU6200
Product specification
6EP3433-7SB00-0AX0
SITOP PSU6200, three phase 400–500 V AC input, 24 V DC output at 5 A.
Dimensions & specifications
24 V DC supplies: SITOP PSU6200 / PSU4200 / PSU100S, LOGO!Power and SIMATIC PM1207. Select input and output current; check the total connected load.
Accessories & related parts
6EP3433-7SB00-0AX0 — specifications & documents
SITOP PSU6200, three phase 400–500 V AC input, 24 V DC output at 5 A.
| Input phase | Three phase |
|---|---|
| Input voltage | 400–500 V AC |
| Output voltage | 24 V DC |
| Output current | 5 A |
| Product type | SITOP PSU6200 |
| Width | 35 mm |
| Height | 135 mm |
| Depth | 125 mm |
