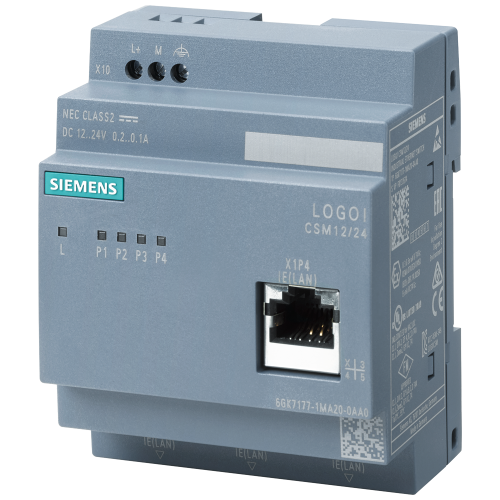

Siemens LOGO! CSM 12/24 compact Ethernet switch
6GK7177-1MA20-0AA0
LOGO! CSM 12/24 compact Ethernet switch, 4 RJ45 ports, 10/100 Mbit/s, 12/24 V DC supply.
- Application
- Logic controllers
- Accessory type
- Ethernet switch
- Option
- LOGO! CSM 12/24
Product specification
6GK7177-1MA20-0AA0
LOGO! CSM 12/24 compact Ethernet switch, 4 RJ45 ports, 10/100 Mbit/s, 12/24 V DC supply.
Dimensions & specifications
Accessories are matched to individual parts. A shared manufacturer or frame size alone does not establish compatibility.
Accessories & related parts
6GK7177-1MA20-0AA0 — specifications & documents
LOGO! CSM 12/24 compact Ethernet switch, 4 RJ45 ports, 10/100 Mbit/s, 12/24 V DC supply.
| Accessory type | Ethernet switch |
|---|---|
| Model | LOGO! CSM 12/24 |
| Ports | 4 RJ45 |
| Data rate | 10/100 Mbit/s |
| Supply voltage | 12/24 V DC |
| Compatible family | LOGO! 8 Ethernet networks |
Related parts
- 6XV1870-3QH10 Industrial Ethernet TP cord, RJ45 to RJ45, Cat6A S/FTP, 1 m.
- 6XV1870-3QH30 Industrial Ethernet TP cord, RJ45 to RJ45, Cat6A S/FTP, 3 m.
Fits these parts
- 6ED1052-1MD08-0BA2 LOGO! 8.4 12/24RCE logic module, 12/24 V DC, with display, 8 digital, including 4 analogue-capable inputs and 4 relay outputs. Ethernet.
- 6ED1052-2MD08-0BA2 LOGO! 8.4 12/24RCEo logic module, 12/24 V DC, without display, 8 digital, including 4 analogue-capable inputs and 4 relay outputs. Ethernet.
- 6ED1052-1CC08-0BA2 LOGO! 8.4 24CE logic module, 24 V DC, with display, 8 digital, including 4 analogue-capable inputs and 4 transistor outputs. Ethernet.
- 6ED1052-2CC08-0BA2 LOGO! 8.4 24CEo logic module, 24 V DC, without display, 8 digital, including 4 analogue-capable inputs and 4 transistor outputs. Ethernet.
- 6ED1052-1HB08-0BA2 LOGO! 8.4 24RCE logic module, 24 V AC/DC, with display, 8 digital inputs and 4 relay outputs. Ethernet.
- 6ED1052-2HB08-0BA2 LOGO! 8.4 24RCEo logic module, 24 V AC/DC, without display, 8 digital inputs and 4 relay outputs. Ethernet.
- 6ED1052-1FB08-0BA2 LOGO! 8.4 230RCE logic module, 115/230 V AC/DC, with display, 8 digital inputs and 4 relay outputs. Ethernet.
- 6ED1052-2FB08-0BA2 LOGO! 8.4 230RCEo logic module, 115/230 V AC/DC, without display, 8 digital inputs and 4 relay outputs. Ethernet.
