Siemens SIMATIC S7-1200 G2
6GK7243-1BX50-0XE0
SIMATIC S7-1200 G2, CP 1243-1, Ethernet communication processor.
- Application
- S7-1200 G2
- Accessory type
- Communications
- Option
- CP 1243-1, Ethernet communication processor
Product specification
6GK7243-1BX50-0XE0
SIMATIC S7-1200 G2, CP 1243-1, Ethernet communication processor.
Dimensions & specifications
Accessories are matched to individual parts. A shared manufacturer or frame size alone does not establish compatibility.
Accessories & related parts
6GK7243-1BX50-0XE0 — specifications & documents

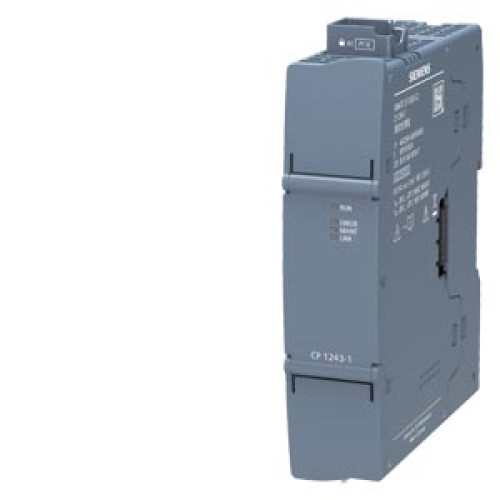

SIMATIC S7-1200 G2, CP 1243-1, Ethernet communication processor.
| Generation | S7-1200 G2 |
|---|---|
| Accessory type | CM |
| Module | CP 1243-1 |
| Interface | Ethernet communication processor |
| Installation | Right of CPU, before signal modules |
| Dimensions (W × H × D) | 30 × 134 × 100 mm |
| Power dissipation | 1.7 W |
| Supply voltage | 19.2–28.8 V DC external supply |
| Supply current | 70 mA at 24 V DC |
| Engineering requirement | Check CPU firmware and TIA Portal hardware support before ordering. |
Fits these parts
- 6ES7212-1AG50-0XB0 SIMATIC S7-1200 G2, CPU 1212C, DC/DC/DC, 20.4–28.8 V DC; 8 digital, 24 V DC; 6 transistor outputs.
- 6ES7212-1BG50-0XB0 SIMATIC S7-1200 G2, CPU 1212C, AC/DC/Relay, 85–264 V AC; 8 digital, 24 V DC; 6 relay outputs.
- 6ES7212-1HG50-0XB0 SIMATIC S7-1200 G2, CPU 1212C, DC/DC/Relay, 20.4–28.8 V DC; 8 digital, 24 V DC; 6 relay outputs.
- 6ES7214-1AH50-0XB0 SIMATIC S7-1200 G2, CPU 1214C, DC/DC/DC, 20.4–28.8 V DC; 14 digital, 24 V DC; 10 transistor outputs.
- 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2, CPU 1214C, AC/DC/Relay, 85–264 V AC; 14 digital, 24 V DC; 10 relay outputs.
- 6ES7214-1HH50-0XB0 SIMATIC S7-1200 G2, CPU 1214C, DC/DC/Relay, 20.4–28.8 V DC; 14 digital, 24 V DC; 10 relay outputs.
