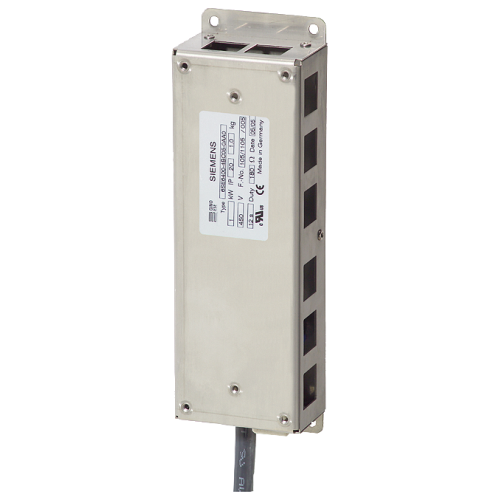

Siemens Braking resistor for matched SINAMICS V20 converters
6SE6400-4BC05-0AA0
Braking resistor for matched SINAMICS V20 converters, 180 Ω, 50 W continuous power.
- Application
- Variable speed drives
- Accessory type
- Braking resistors
- Option
- 180 Ω / 50 W
Product specification
6SE6400-4BC05-0AA0
Braking resistor for matched SINAMICS V20 converters, 180 Ω, 50 W continuous power.
Dimensions & specifications
Accessories are matched to individual parts. A shared manufacturer or frame size alone does not establish compatibility.
Accessories & related parts
6SE6400-4BC05-0AA0 — specifications & documents
Braking resistor for matched SINAMICS V20 converters, 180 Ω, 50 W continuous power.
| Accessory type | Braking resistors |
|---|---|
| Resistance | 180 Ω ±10% |
| Continuous power | 50 W |
| Peak power at 5% duty | 1 kW |
| Duty cycle | Maximum 5%; check application braking duty |
Fits these parts
- 6SL3210-5BB11-2BV1 SINAMICS V20 drive, 0.12 kW, 230 V single phase, FSAA, integrated C1 EMC filter.
- 6SL3210-5BB12-5BV1 SINAMICS V20 drive, 0.25 kW, 230 V single phase, FSAA, integrated C1 EMC filter.
- 6SL3210-5BB13-7BV1 SINAMICS V20 drive, 0.37 kW, 230 V single phase, FSAA, integrated C1 EMC filter.
- 6SL3210-5BB15-5BV1 SINAMICS V20 drive, 0.55 kW, 230 V single phase, FSAB, integrated C1 EMC filter.
- 6SL3210-5BB17-5BV1 SINAMICS V20 drive, 0.75 kW, 230 V single phase, FSAB, integrated C1 EMC filter.
